DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

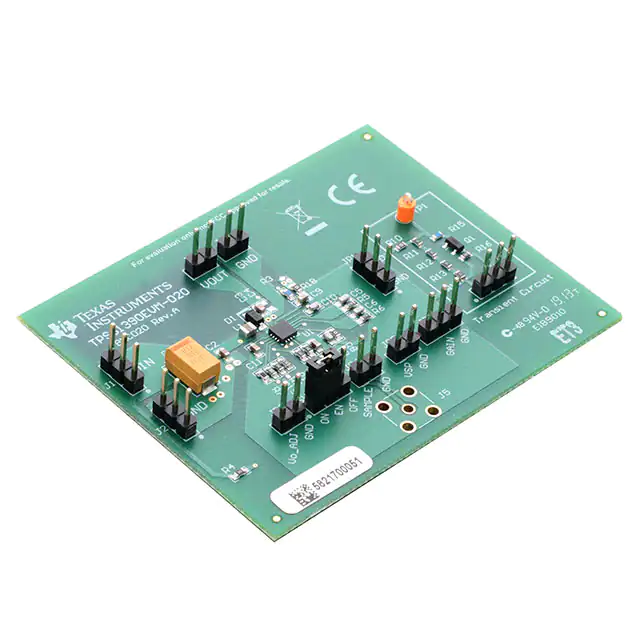

TPS61390EVM-020EVAL BOARD FOR TPS61390 |
1,101 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 60V | 10mA | 2.5V ~ 5.5V | Boost | - | Board(s) | TPS61390 |
|

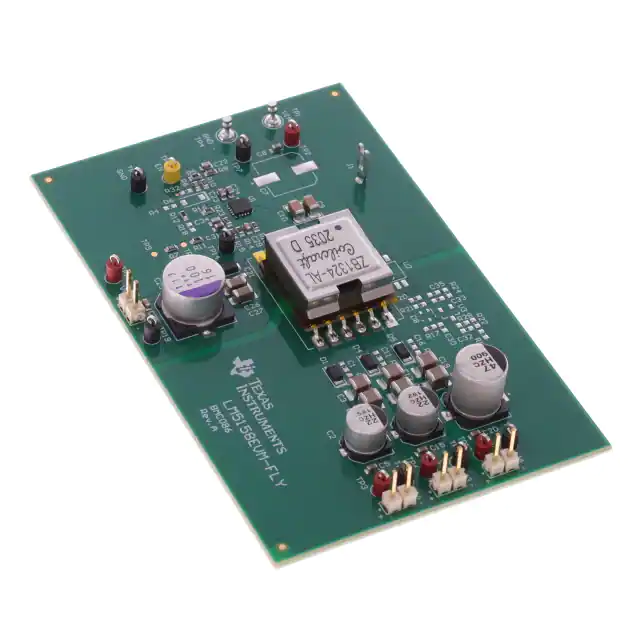

LM5158EVM-FLYEVAL BOARD FOR LM5158Q1 |
1,773 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 4 Isolated Outputs | 8.5 W | 10V, 20V, 20V, 20V | 250mA, 150mA, 75mA, 75mA | 8V ~ 16V | Flyback | 250kHz | Board(s) | LM5158-Q1 |
|
LMR38020QEVMEVAL BOARD LMR38020 LMR38020Q1 |
4,560 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6V ~ 80V | Buck | 400kHz | Board(s) | LMR38020, LMR38020-Q1 |
|

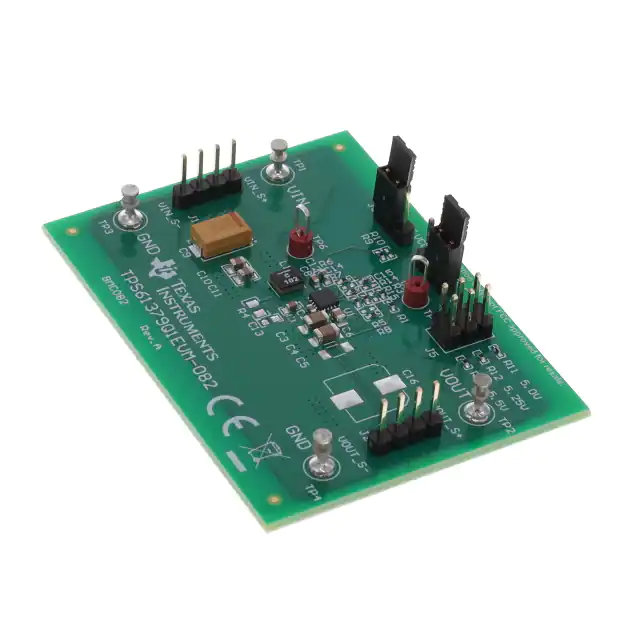

TPS61379Q1EVM-082EVAL BOARD FOR TPS61379Q1 |
4,482 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 4V ~ 18.5V | - | 2.3V ~ 14V | Boost | - | Board(s) | TPS61379-Q1 |
|
TPS631000EVM-075EVAL BOARD FOR TPS631000 |
3,729 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.2V ~ 5.3V | 2A, 1.5A | 1.5V ~ 5.5V | Buck-Boost | - | Board(s) | TPS631000 |
|

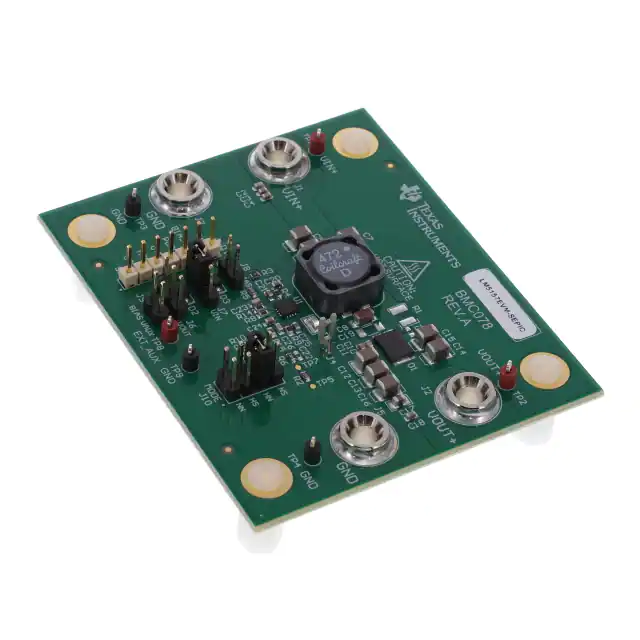

LM5157EVM-SEPICEVAL BOARD FOR LM5157 |
4,201 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 12 W | 12V | 1A | 4V ~ 32V | SEPIC | 2.1MHz | Board(s) | LM5157 |
|

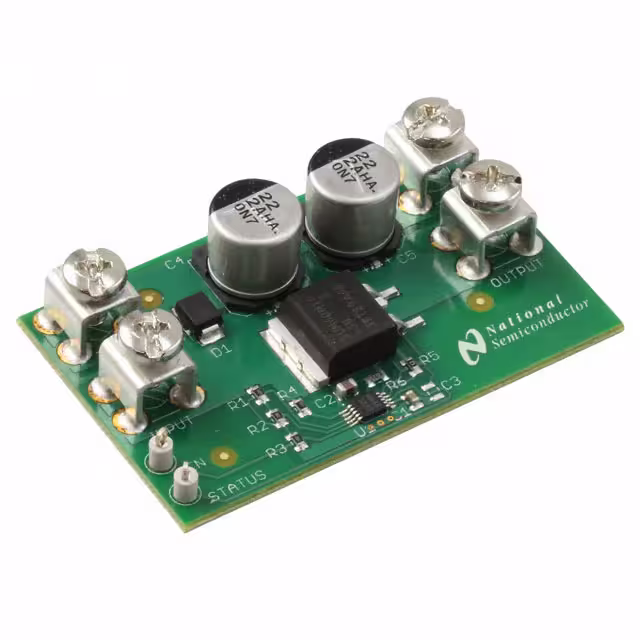

LM5060EVAL/NOPBEVAL BOARD FOR LM5060 |
1,482 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 5A | 9V ~ 36V | Buck | - | Board(s) | LM5060 |
|
LM5155EVM-SEPICEVAL BOARD FOR LM5155Q1 |
4,815 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 6V ~ 18V | Boost, SEPIC | 2.2MHz | Board(s) | LM5155-Q1 |
|

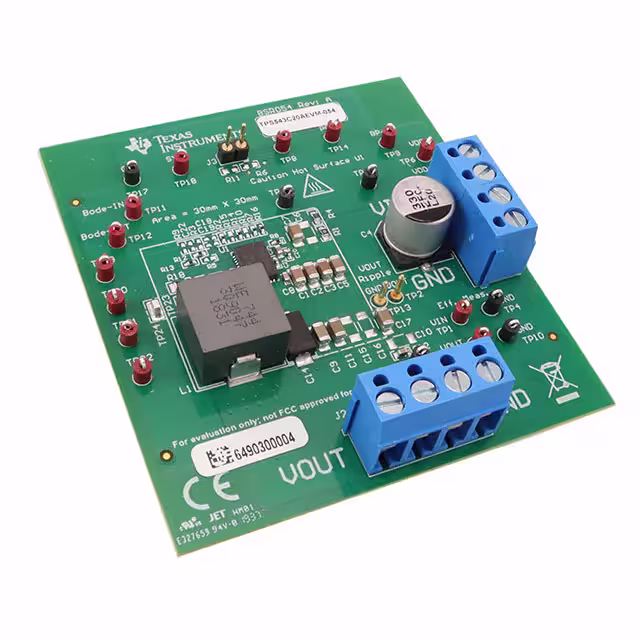

TPS543C20AEVM-054EVAL BOARD FOR TPS543C20 |
4,333 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 40A | 5V ~ 16V | Buck | 500kHz | Board(s) | TPS543C20 |
|

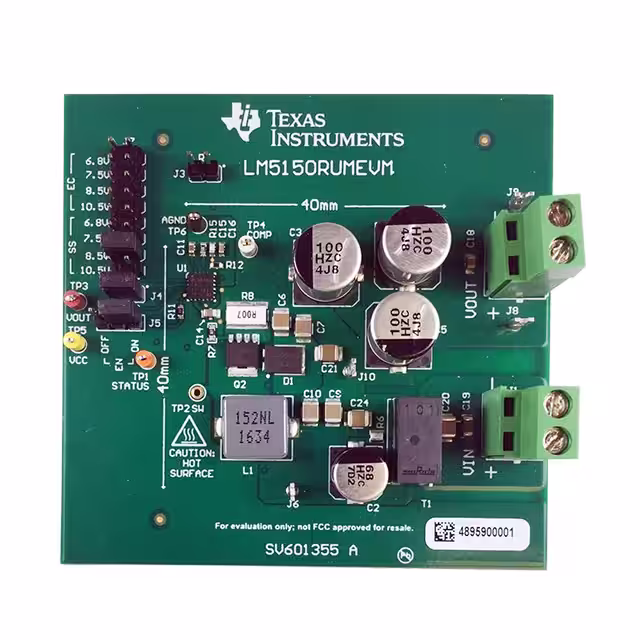

LM5150RUMEVMEVAL BOARD FOR LM5150Q1 |
4,212 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 8.5V | 2.94A | 2.5V ~ 40V | Boost | 440kHz | Board(s) | LM5150-Q1 |
