DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC14240EVM-052EVAL BOARD FOR UCC14240Q1 |
1,759 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 2 Isolated Outputs | 1.5 W | - | - | 21V ~ 27V | - | - | Board(s) | UCC14240-Q1 |
|

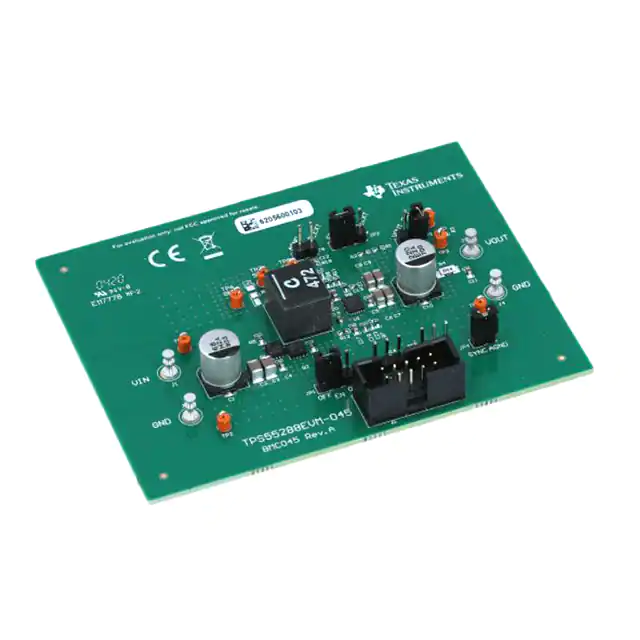

TPS55288EVM-045EVAL BOARD FOR TPS55288 |
3,290 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 20V | 5A | 2.7V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS55288 |
|
|
UCC28C56EVM-066EVAL BOARD FOR UCC28C56HQ1 |
2,639 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 40 W | 15V | 2.7A | 40V ~ 1000V | Flyback | 42.5kHz | Board(s) | UCC28C56H-Q1 |
|

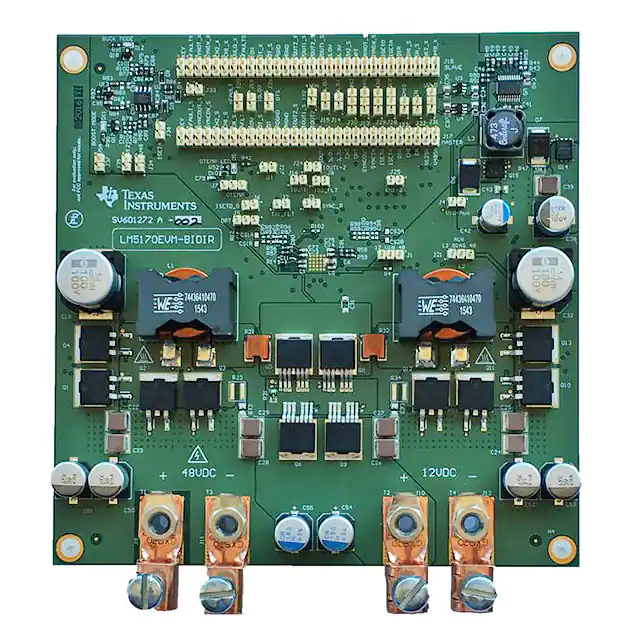

LM5170EVM-BIDIREVAL BOARD FOR LM5170Q1 |
2,286 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Bidirectional | 2 Non-Isolated Outputs | - | 12V or 48V | 60A | 3V ~ 48V or 6V ~ 70V | Boost, Buck | 100kHz | Board(s) | LM5170-Q1 |
|

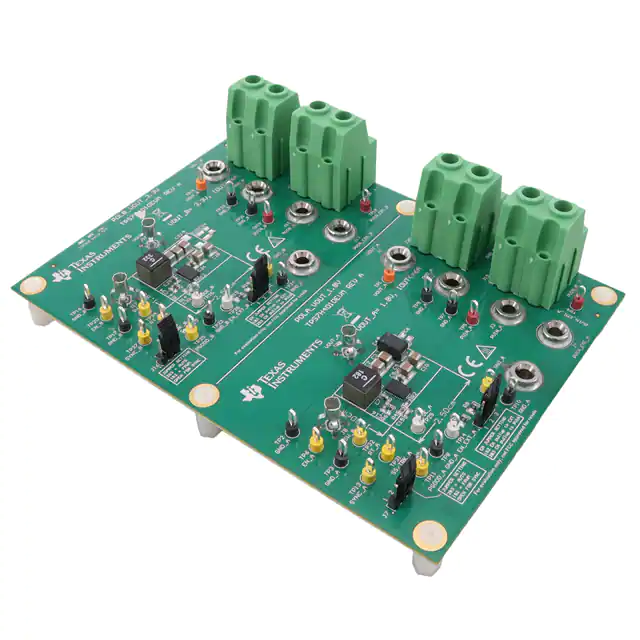

TPS7H4010EVMEVAL BOARD FOR TPS7H4010SEP |
2,967 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 6A, 6A | 5V ~ 30V | Buck | 500kHz | Board(s) | TPS7H4010-SEP |
|

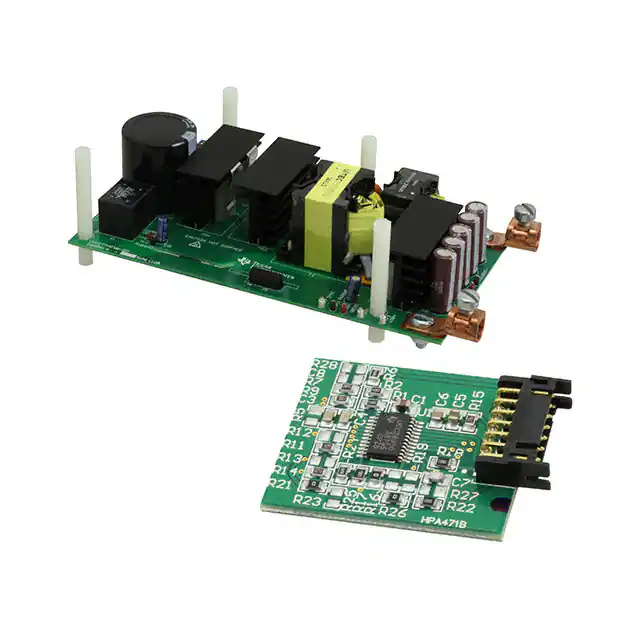

UCC27714EVM-551EVAL BOARD UCC27524A UCC27714 |
3,017 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 370V ~ 410V | Full-Bridge | - | Board(s) | UCC27524A, UCC27714, UCC28950 |
|
|
BQ25756EEVMEVAL BOARD FOR BQ25756E |
2,457 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 4.2V ~ 36V | 15A | 12V ~ 36V | Buck-Boost | 250kHz | Board(s) | BQ25756E |
|

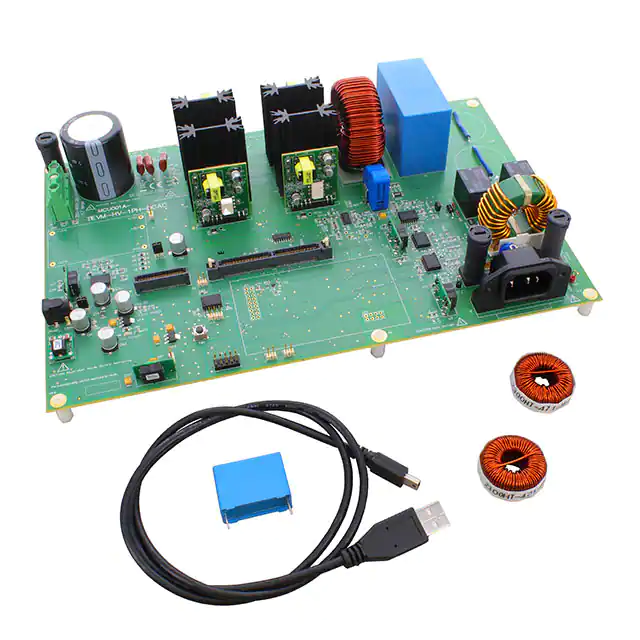

TIEVM-HV-1PH-DCACTIEVM-HV-1PH-DCAC |
2,675 | - |
|
Datasheet | - | Bulk | Active | DC/AC Converter | 1 Non-Isolated Output | - | 110VAC | 4.5A | 380V | - | 20kHz | Board(s), Cable(s) | - |
|

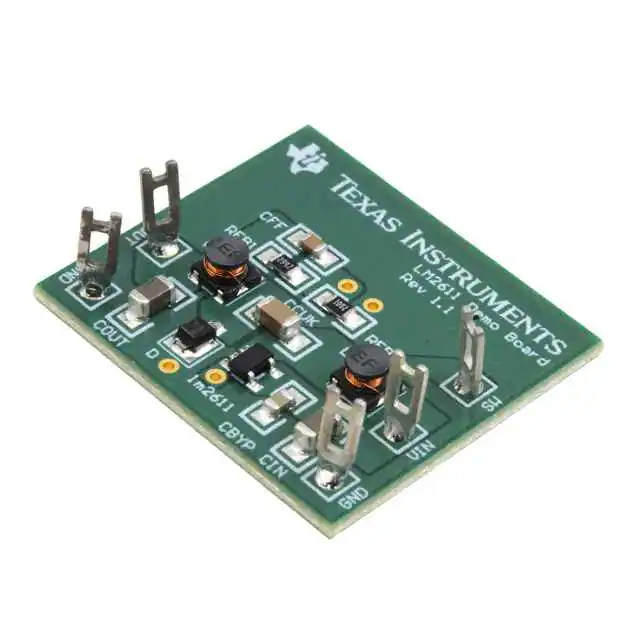

LM2611EVALEVAL BOARD FOR LM2611 |
2,804 | - |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 300mA | 4.5V ~ 5.5V | Inverting | 1.4MHz | Board(s) | LM2611 |
|
LM76005QEVMEVAL BOARD FOR LM76005Q1 |
1,281 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 5A | 3.5V ~ 60V | Buck | - | Board(s) | LM76005-Q1 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
