DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN6501EVMEVAL BOARD FOR SN6501 |
1,148 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | DC/DC Isolated Power Supply | 1 Isolated Output | - | 5V | - | 3.3V, 5V | - | - | Board(s) | SN6501 |
|
|
SN6501-3EVMEVAL BOARD FOR SN6501 |
2,840 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | DC/DC Isolated Power Supply | 1 Isolated Output | - | 3.3V, 5V | - | 3.3V | - | - | Board(s) | SN6501 |
|
|
SN6501-5EVMEVAL BOARD FOR SN6501 |
1,756 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | DC/DC Isolated Power Supply | 1 Isolated Output | - | 5V | - | 5V | - | - | Board(s) | SN6501 |
|

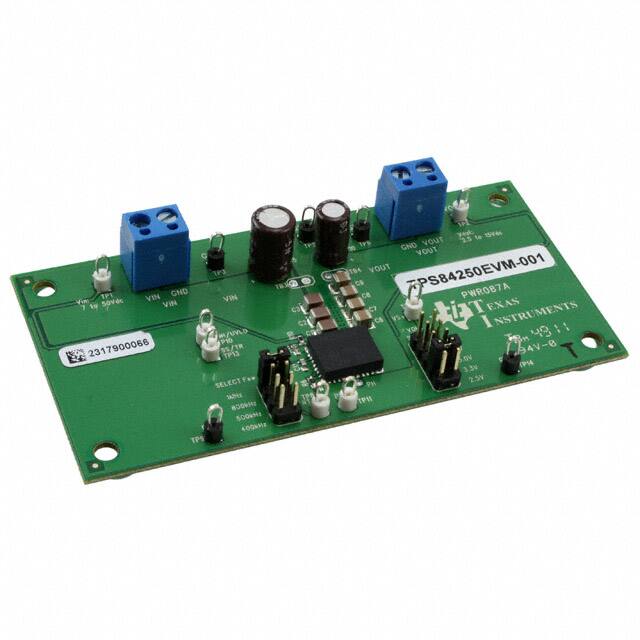

TPS84250EVM-001EVAL BOARD FOR TPS84250 |
3,259 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 12V or 15V | 2.5A | 7V ~ 50V | Buck | - | Board(s) | TPS84250 |
|
TPS84259EVM-001EVAL BOARD FOR TPS84259 |
2,030 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -3.3V, -5V, -12V, -15V | 2A | 4.5V ~ 40V | Inverting | 800kHz | Board(s) | TPS84259 |
|

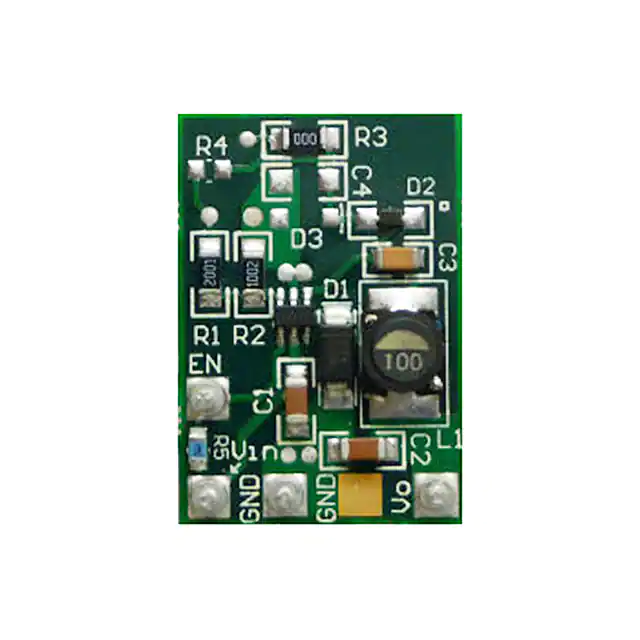

LM2736Y EVAL/NOPBEVAL BOARD FOR LM2736 |
3,374 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 750mA | 3V ~ 18V | Buck | 550kHz | Board(s) | LM2736 |
|
|
TPS84A20EVM-001EVAL BOARD FOR TPS84A20 |
1,781 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 10A | 2.95V ~ 17V | Buck | - | Board(s) | TPS84A20 |
|
|
MAX17570C12EVKIT#EVAL BOARD FOR MAX17570C |
1,784 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 300mA | 15V ~ 60V | Buck | 400kHz | Board(s) | MAX17570C |
|

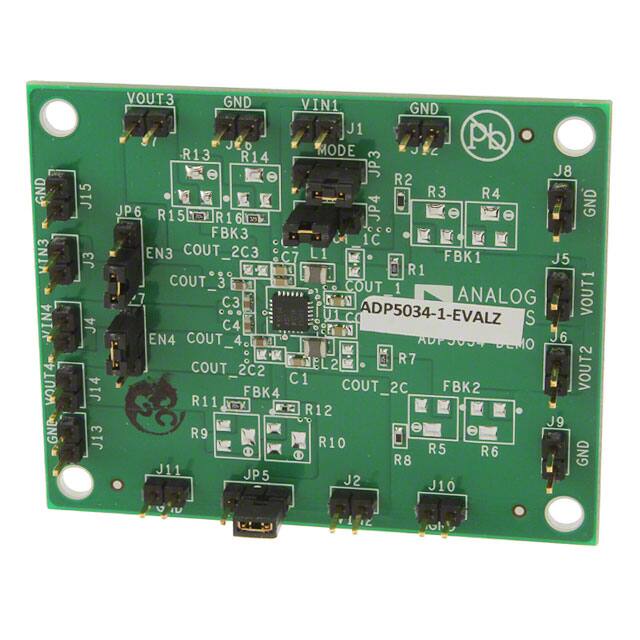

ADP5034-1-EVALZEVAL BOARD FOR ADP5034 |
2,578 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1.2A, 1.2A, 300mA, 300mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5034 |
|
STEVAL-ISA117V1EVAL BOARD FOR VIPER16 |
4,814 | - |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 4.2 W | 12V | 350mA | 90 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer16 |
|
STEVAL-ISA039V1EVAL BOARD FOR L6727 |
2,914 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V | 5A | 5V ~ 12V | Buck | 300kHz | Board(s) | L6727 |
|
STEVAL-ISA136V1EVAL BOARD FOR VIPER06 |
4,069 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 3 W | 5V | 600mA | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer06 |
|
STEVAL-ISA011V1EVAL BOARD FOR VIPER12A |
2,657 | - |
|
Datasheet | VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 4.1 W | 4.5V | 900mA | 88 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|
AS1340A-TD-10_EK_SEVAL BOARD FOR AS1340 |
2,538 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.7V ~ 50V | 100mA | 2.7V ~ 5.5V | Boost | 1MHz | Board(s) | AS1340 |
|
STEVAL-ISA069V1EVAL BOARD FOR ST1S31 |
3,956 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5.5V | 3A | 2.8V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S31 |
|
STEVAL-ISA068V1EVAL BOARD FOR ST1S32 |
3,165 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 2.8V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S32 |
|
AS1344-TD_EK_STEVAL BOARD FOR AS1344 |
2,959 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.5V ~ 42V | - | 0.9V ~ 3.6V | Boost | 1MHz | Board(s) | AS1344 |
|
STEVAL-ISA134V1EVAL BOARD FOR VIPER06 |
4,301 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 4 W | 12V | 333mA | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer06 |
|
KIT6W12VBIASICE3TOBO1EVAL BOARD FOR ICE3RBR4765JZ |
3,630 | - |
|
Datasheet | CoolMOS™, CoolSET™F3R | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 6 W | 12V | - | 90V ~ 400V | - | 65kHz | Board(s) | ICE3RBR4765JZ |
|

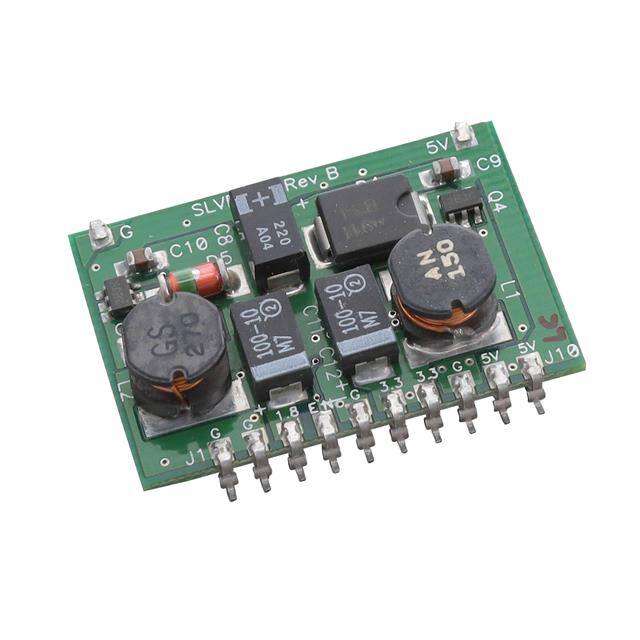

TL1451AEVM-166EVAL BOARD FOR TL1451A |
2,304 | - |
|
Datasheet | - | Bag | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 1.5A, 1A | 4.5V ~ 5.5V | Buck | 300kHz | Board(s) | TL1451A |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
