DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

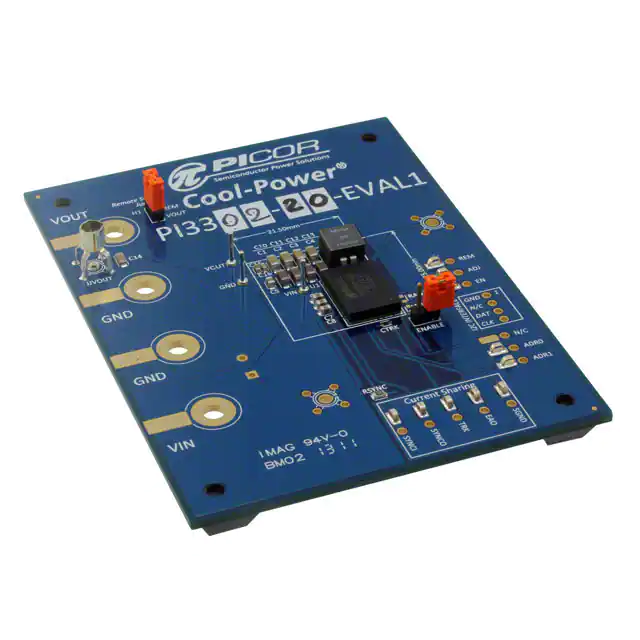

PI3302-20-EVAL1EVAL BOARD FOR PI330220 |
2,639 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 8V ~ 36V | Buck | 1MHz | Board(s) | PI3302-20 |
|

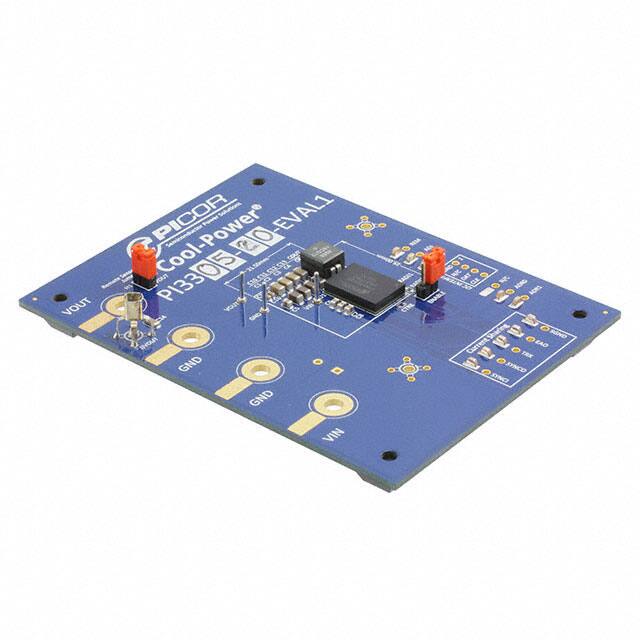

PI3305-20-EVAL1EVAL BOARD FOR PI330520 |
3,900 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | 8A | 20.4V ~ 36V | Buck | 1.5MHz | Board(s) | PI3305-20 |
|
PI3585-00-EVAL1EVAL BOARD FOR PI358500 |
2,585 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 30V ~ 60V | Buck | 600kHz | Board(s) | PI3585-00 |
|
|
PI3586-00-EVAL1EVAL BOARD FOR PI358600 |
4,224 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 9A | 30V ~ 60V | Buck | 700kHz | Board(s) | PI3586-00 |
|
PI3542-00-EVAL1EVAL BOARD FOR PI354200 |
2,594 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.5V | 10A | 36V ~ 60V | Buck-Boost | 400kHz | Board(s) | PI3542-00 |
|
|
PI3543-00-EVAL1EVAL BOARD FOR PI354300 |
4,891 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 10A | 36V ~ 60V | Buck-Boost | 400kHz | Board(s) | PI3543-00 |
|
VTD48EH040T025A00EVAL BOARD FOR VTM48EH040X025A00 |
3,055 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.5V | 25A | 26V ~ 55V | Buck | 1.65MHz | Board(s) | VTM48EH040x025A00 |
|
BCD48BF240T300A00EVAL BOARD FOR BCM48BX240Y300A00 |
4,640 | - |
|
Datasheet | VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 24V | 12A | 38V ~ 55V | Buck | 1.77MHz | Board(s) | BCM48Bx240y300A00 |
|
|
BCD48BF160T240A00EVAL BOARD FOR BCM48BX160Y240A00 |
4,348 | - |
|
Datasheet | VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 16V | 15A | 38V ~ 55V | Buck | 1.65MHz | Board(s) | BCM48Bx160y240A00 |
|
|
BCD48BF120T300A00EVAL BOARD FOR BCM48BX120Y300A00 |
3,581 | - |
|
Datasheet | VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 12V | 30A | 38V ~ 55V | Buck | 1.95MHz | Board(s) | BCM48Bx120y300A00 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
