DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC477AEVAL BOARD FOR LT1683 |
1,637 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2A | 36V ~ 72V | Buck | - | Board(s) | LT1683 |
|
|
DM330017-1EVAL BOARD FOR DSPIC33F |
2,057 | - |
|
Datasheet | MPLAB® | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | - | - | - | Boost, Buck | - | Board(s), Cable(s), Power Supply | dsPIC33F |
|
|
MVTD36BF045M027A00EVAL BOARD MVTM36BX045M027A00 |
4,375 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 4.5V | 27A | 26V ~ 50V | Buck | 1.21MHz | Board(s) | MVTM36Bx045M027A00 |
|
|
MVTD36BF120M010A00EVAL BOARD MVTM36BX120M010A00 |
2,704 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 10A | 26V ~ 50V | Buck | 1.65MHz | Board(s) | MVTM36Bx120M010A00 |
|
|
P048F048M24AL-CBEVAL BOARD FOR P048F048M24AL |
3,395 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 240 W | 48V | 5A | 36V ~ 75V | Buck-Boost | 1.45MHz | Board(s) | P048F048M24AL |
|
|
VTD48EF020T080B00EVAL BOARD FOR VTM48EX020Y080B00 |
3,862 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 160 W | 2V | 80A | 26V ~ 55V | Buck | 1.6MHz | Board(s) | VTM48Ex020y080B00 |
|
EVM3810-QB-12-01AEVAL BOARD FOR MPM381012 |
4,128 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1.2A | 2.5V ~ 6V | Buck | 3.5MHz | Board(s) | MPM3810-12 |
|
EVM3810-QB-33-01AEVAL BOARD FOR MPM381033 |
4,053 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 2.5V ~ 6V | Buck | 3.5MHz | Board(s) | MPM3810-33 |
|
|
MIC2131-EVEVAL BOARD FOR MIC2131 |
2,880 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 9A | 8V ~ 40V | Buck | 150kHz | Board(s) | MIC2131 |
|
|
MIC28511-2YFL-EVEVAL BOARD FOR MIC285112 |
1,244 | - |
|
Datasheet | Hyper Speed Control® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.6V ~ 60V | Buck | 300kHz | Board(s) | MIC28511-2 |
|
|
MIC28512-1YFL-EVEVAL BOARD FOR MIC285121 |
4,582 | - |
|
Datasheet | HyperLight Load® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.6V ~ 70V | Buck | 300kHz | Board(s) | MIC28512-1 |
|
|
MIC28512-2YFL-EVEVAL BOARD FOR MIC285122 |
2,176 | - |
|
Datasheet | Hyper Speed Control® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.6V ~ 70V | Buck | 300kHz | Board(s) | MIC28512-2 |
|
DC2249AEVAL BOARD FOR LTM4622 |
4,137 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 2.5A, 2.5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4622 |
|

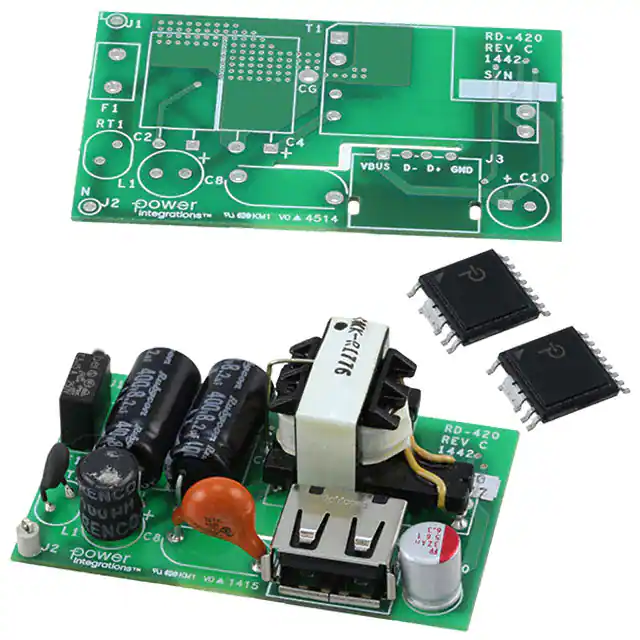

RDK-420EVAL BOARD FOR INN2023K |
1,156 | - |
|
Datasheet | InnoSwitch™-CH | Box | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 10 W | 5V | 2A | 85 ~ 264 VAC | Flyback | - | Board(s) | INN2023K |
|

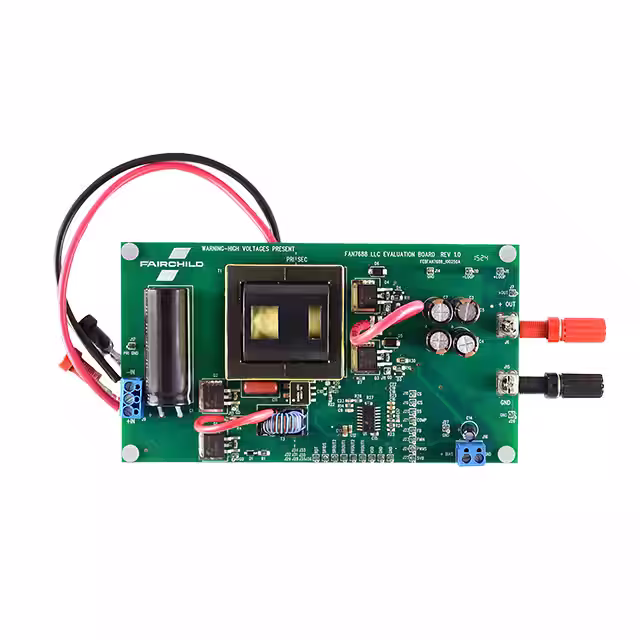

FEBFAN7688-I00250A-GEVBEVAL BOARD FOR FAN3225C FAN7688 |
4,368 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 250 W | 12.5V | 20A | 300V ~ 450V | Resonant | - | Board(s) | FAN3225C, FAN7688 |
|

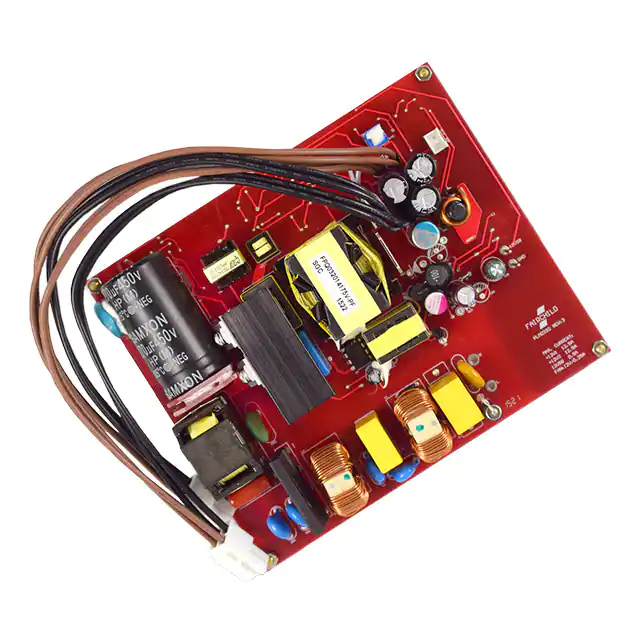

FEBFAN7688SJXA-CP14U306-GEVBEVAL BOARD FOR FAN7688 |
1,373 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Secondary Side | 2 Isolated Outputs | 306 W | 12V, 12V | - | 90 ~ 264 VAC | - | - | Board(s) | FAN7688 |
|

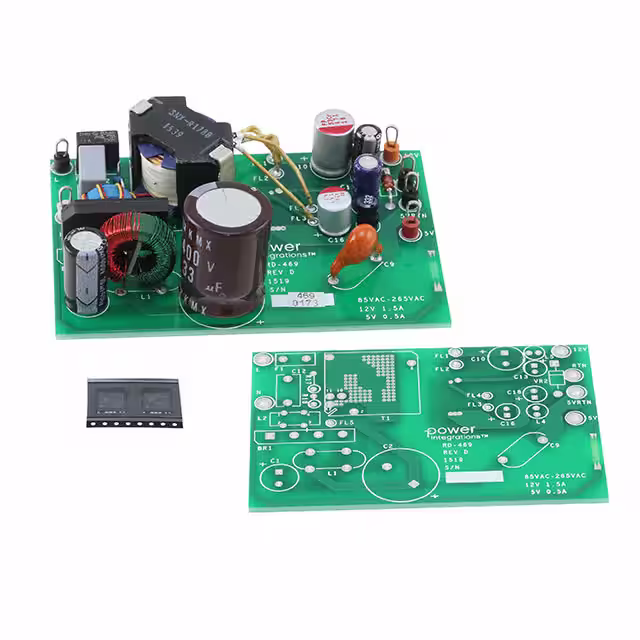

RDK-469EVAL BOARD FOR INN2605K |
4,764 | - |
|
Datasheet | InnoSwitch™-EP | Box | Obsolete | AC/DC, Primary and Secondary Side | 2 Isolated Outputs | 20 W | 5V, 12V | 1.5A, 500mA | 85 ~ 264 VAC | Flyback | - | Board(s) | INN2605K |
|
|
EVB_RT5047GSPEVAL BOARD FOR RT5047 |
2,698 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | 13.3V or 18.3V | 500mA | 8V ~ 16V | Boost | 700kHz | Board(s) | RT5047 |
|
NDM2Z-25HT-DEMOEVAL BOARD FOR NDM2Z25 |
2,201 | - |
|
Datasheet | Novum® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 82.5 W | 1.2V | 25A | 4.5V ~ 14V | Buck | 320kHz | Board(s) | NDM2Z-25 |
|
NDM2Z-50HT-DEMOEVAL BOARD FOR NDM2Z50 |
1,909 | - |
|
Datasheet | Novum® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 165 W | 1.2V | 50A | 4.5V ~ 14V | Buck | 320kHz | Board(s) | NDM2Z-50 |
