DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2422A-AEVAL BOARD FOR LTC7812 |
4,249 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 8A | 4V ~ 36V | Boost, Buck | - | Board(s) | LTC7812 |
|
DC2122AEVAL BOARD FOR LTC3859AL |
4,342 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 5V, 8.5V, 10V | - | 4.5V ~ 36V | Boost, Buck | 350kHz | Board(s) | LTC3859AL |
|
DC1898AEVAL BOARD FOR LTC3899 |
3,450 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 5V, 8.5V, 10V | 5.5A, 5A, 3A | 2.5V ~ 60V | Boost, Buck | 350kHz | Board(s) | LTC3899 |
|
DC2666A-AEVAL BOARD FOR LTC7132 |
3,520 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1V | 20A, 20A | 6V ~ 20V | Buck | 425kHz | Board(s) | LTC7132 |
|
BM2P016T-EVK-004EVAL BOARD FOR BM2P016T |
2,315 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 24V | 2A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P016T |
|
BM2P016T-EVK-003EVAL BOARD FOR BM2P016T |
3,962 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 12V | 4A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P016T |
|
DC662AEVAL BOARD FOR LT1933 |
1,783 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 36V | Buck | 500kHz | Board(s) | LT1933 |
|
DC616AEVAL BOARD FOR LTC3425 |
4,033 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 3.3V | 2.25A, 1.8A | 2V ~ 3V | Boost | 1MHz | Board(s) | LTC3425 |
|
DC686AEVAL BOARD FOR LTC3780 |
1,030 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 5V ~ 32V | Buck-Boost | 400kHz | Board(s) | LTC3780 |
|
DC1989B-CEVAL BOARD FOR LTM4676A |
1,591 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 4.5V ~ 17V | Buck | 350kHz | Board(s) | LTM4676A |
|
STEVAL-NRG011TVEVAL BOARD FOR STNRG011 |
2,381 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 2 Non-Isolated Outputs | 200 W | 12V, 65V | 4A, 2.3A | 90 ~ 264 VAC | Resonant | - | Board(s) | STNRG011 |
|
DC2007A-BEVAL BOARD FOR LTM4630 |
2,235 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 105A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630 |
|
DC2164A-BEVAL BOARD FOR LTM46301 |
3,828 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 105A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630-1 |
|
DC1997A-AEVAL BOARD FOR LTC38381 |
3,865 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 20A, 20A | 4.5V ~ 14V | Buck | 300kHz | Board(s) | LTC3838-1 |
|
ADP2503CPZ-REDYKITEVAL BOARD FOR ADP2503 |
1,815 | - |
|
Datasheet | RedyKit™ | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V, 5V | 600mA | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s), Accessories | ADP2503 |
|
DC2174A-AEVAL BOARD FOR LTC3882EUJ |
1,551 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 1V | 35A, 35A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3882EUJ |
|
TPS65282EVMEVAL BOARD FOR TPS65282 |
2,716 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 2.5V ~ 6V | Buck | 600kHz | Board(s) | TPS65282 |
|

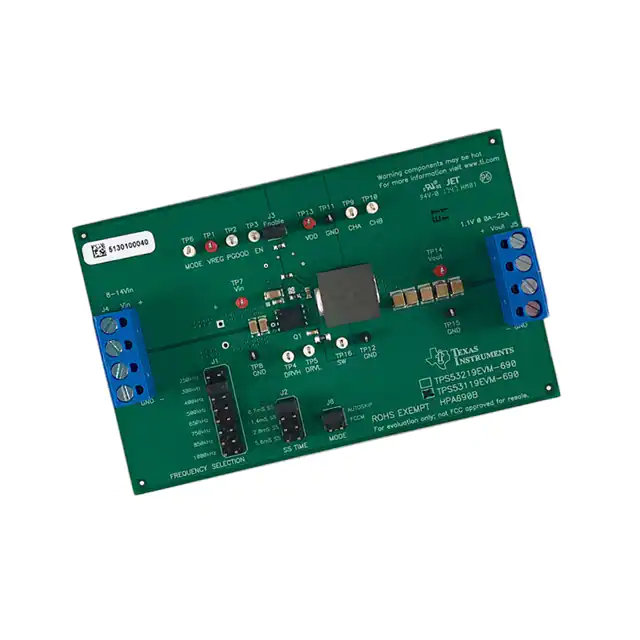

TPS53119EVM-690EVAL BOARD FOR TPS53119 |
3,890 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 25A | 8V ~ 14V | Buck | 300kHz | Board(s) | TPS53119 |
|

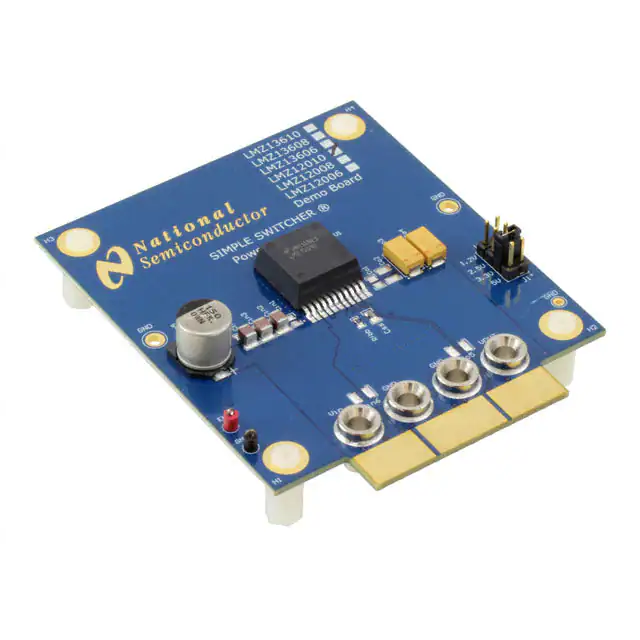

LMZ12010DEMO/NOPBEVAL BOARD FOR LMZ12010 |
3,963 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 2.5V, 3.3V, 5V | 10A | 6V ~ 20V | Buck | 350kHz | Board(s) | LMZ12010 |
|

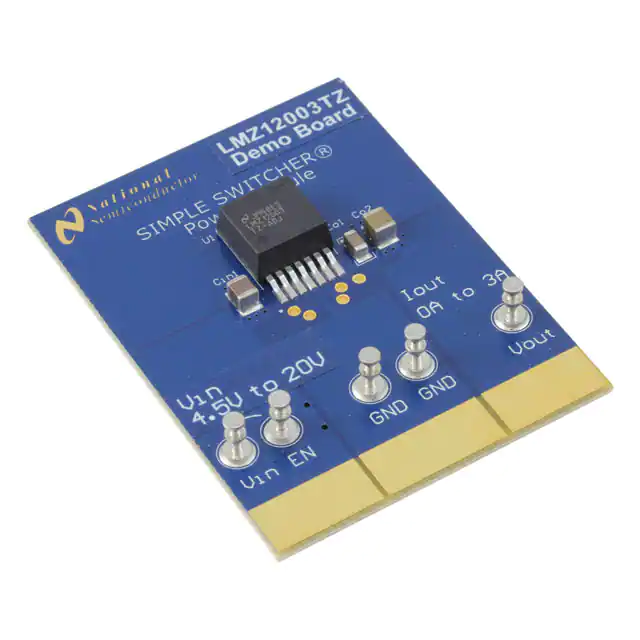

LMZ12003DEMO/NOPBEVAL BOARD FOR LMZ12003 |
2,282 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 4.5V ~ 20V | Buck | - | Board(s) | LMZ12003 |
