FET, MOSFET Arrays
Compare the current FET, MOSFET Arrays FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTC80A15SCTGMOSFET 2N-CH 800V 28A SP4 |
8,906 | - |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 800V | 28A | 150mOhm @ 14A, 10V | 3.9V @ 2mA | 180nC @ 10V | 4507pF @ 25V | 277W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTC80A10SCTGMOSFET 2N-CH 800V 42A SP4 |
5,743 | - |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 800V | 42A | 100mOhm @ 21A, 10V | 3.9V @ 3mA | 273nC @ 10V | 6761pF @ 25V | 416W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
MSCC60VRM99CT3AGMOSFET 600V 19A SP3F |
7,764 | - |
|
Datasheet | - | Module | Tube | Active | - | - | - | 600V | 19A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP3F |
|
|
APTM20AM10FTGMOSFET 2N-CH 200V 175A SP4 |
3,590 | - |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 175A | 12mOhm @ 87.5A, 10V | 5V @ 5mA | 224nC @ 10V | 13700pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM20HM20FTGMOSFET 4N-CH 200V 89A SP4 |
8,659 | - |
|
Datasheet | - | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 200V | 89A | 24mOhm @ 44.5A, 10V | 5V @ 2.5mA | 112nC @ 10V | 6850pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
|
|
APTM10HM09FT3GMOSFET 4N-CH 100V 139A SP3 |
9,708 | - |
|
Datasheet | - | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 100V | 139A | 10mOhm @ 69.5A, 10V | 4V @ 2.5mA | 350nC @ 10V | 9875pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
APTM08TAM04PGMOSFET 6N-CH 75V 120A SP6-P |
0 |
24+：$149.19500 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 75V | 120A | 4.5mOhm @ 60A, 10V | 4V @ 1mA | 153nC @ 10V | 4530pF @ 25V | 138W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTM100H45FT3GMOSFET 4N-CH 1000V 18A SP3 |
3,715 | - |
|
Datasheet | - | SP3 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 18A | 540mOhm @ 9A, 10V | 5V @ 2.5mA | 154nC @ 10V | 4350pF @ 25V | 357W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
|
MSCSM70VM19C3AGMOSFET 2N-CH 700V 124A SP3F |
6,872 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 700V | 124A (Tc) | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215nC @ 20V | 4500pF @ 700V | 365W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|

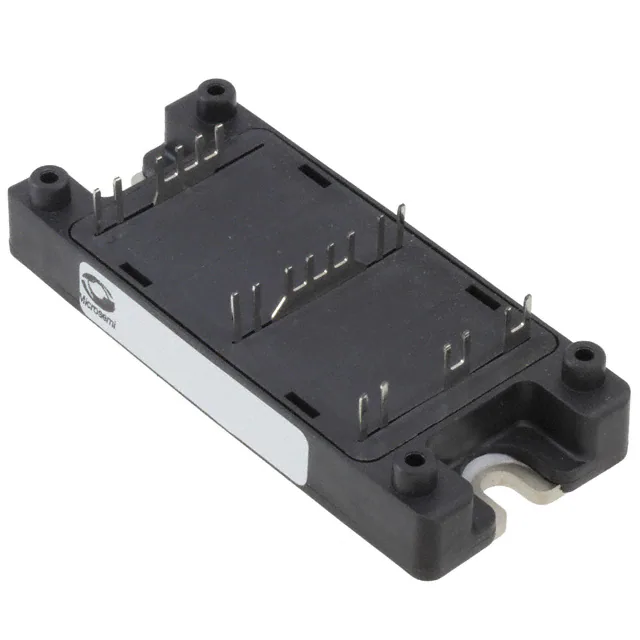

APTM50AM38FTGMOSFET 2N-CH 500V 90A SP4 |
3,471 | - |
|
Datasheet | POWER MOS 7® | SP4 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 90A | 45mOhm @ 45A, 10V | 5V @ 5mA | 246nC @ 10V | 11200pF @ 25V | 694W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP4 |
