FET, MOSFET Arrays
Compare the current FET, MOSFET Arrays FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

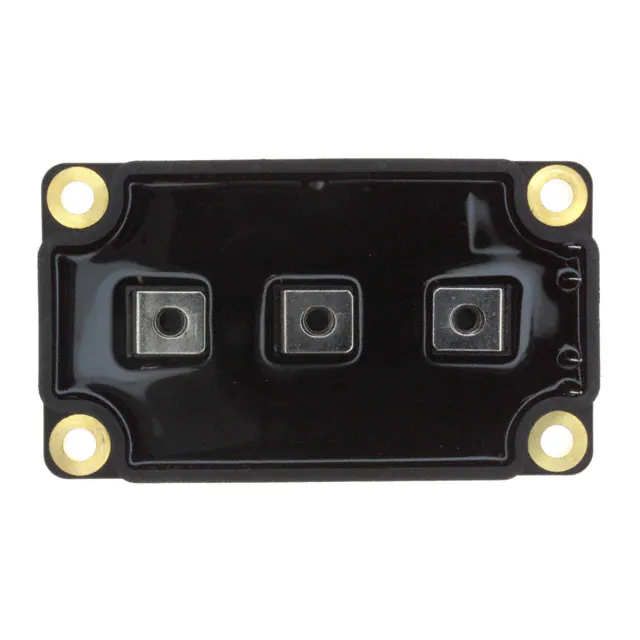

APTM50AM24SGMOSFET 2N-CH 500V 150A SP6 |
16 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 500V | 150A | 28mOhm @ 75A, 10V | 5V @ 6mA | 434nC @ 10V | 19600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|

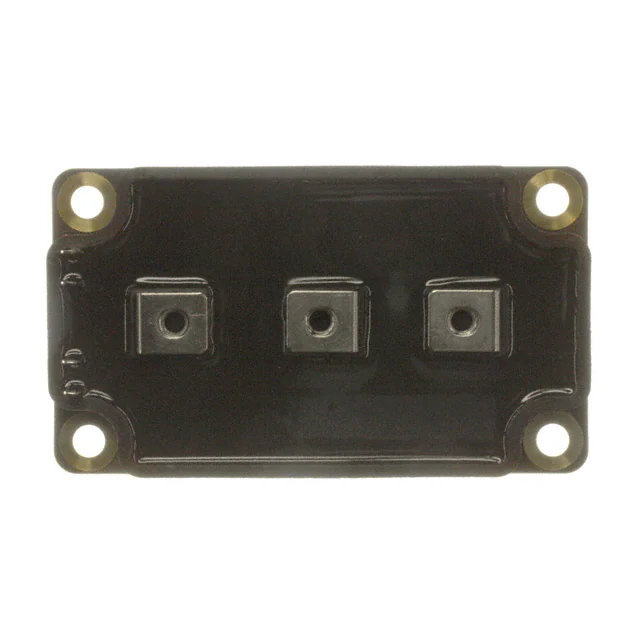

APTM20AM04FGMOSFET 2N-CH 200V 372A SP6 |
19 |
1+：$270.24000 |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 200V | 372A | 5mOhm @ 186A, 10V | 5V @ 10mA | 560nC @ 10V | 28900pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
MSCSM170AM058CD3AGMOSFET 2N-CH 1700V 353A |
8 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 353A (Tc) | 7.5mOhm @ 180A, 20V | 3.3V @ 15mA | 1068nC @ 20V | 19800pF @ 1000V | 1.642kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170HM23CT3AGMOSFET 4N-CH 1700V 124A |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1700V (1.7kV) | 124A (Tc) | 22.5mOhm @ 60A, 20V | 3.2V @ 5mA | 356nC @ 20V | 6600pF @ 1000V | 602W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM170AM029CT6LIAGMOSFET 2N-CH 1700V 676A |
8 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 676A (Tc) | 3.75mOhm @ 360A, 20V | 3.3V @ 30mA | 2136nC @ 20V | 39600pF @ 1000V | 3kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM70AM19T1AGMOSFET 2N-CH 700V 124A |
21 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 700V | 124A (Tc) | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215nC @ 20V | 4500pF @ 700V | 365W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
.jpg "MSCSM120AM31CT1AG")
|
MSCSM120AM31CT1AGMOSFET 2N-CH 1200V 89A SP1F |
7 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 89A (Tc) | 31mOhm @ 40A, 20V | 2.8V @ 1mA | 232nC @ 20V | 3020pF @ 1000V | 395W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP1F |
|
|
MSCSM70TLM44C3AGMOSFET 4N-CH 700V 58A SP3F |
7 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 700V | 58A (Tc) | 44mOhm @ 30A, 20V | 2.7V @ 2mA | 99nC @ 20V | 2010pF @ 700V | 176W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
MSCSM170AM45CT1AGMOSFET 2N-CH 1700V 64A |
6 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 64A (Tc) | 45mOhm @ 30A, 20V | 3.2V @ 2.5mA | 178nC @ 20V | 3300pF @ 1000V | 319W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|
|
MSCSM120TLM50C3AGMOSFET 4N-CH 1200V 55A SP3F |
5 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 4 N-Channel (Three Level Inverter) | - | 1200V (1.2kV) | 55A (Tc) | 50mOhm @ 40A, 20V | 2.7V @ 1mA | 137nC @ 20V | 1990pF @ 1000V | 245W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
FET, MOSFET Arrays FAQ
How can I narrow the current FET, MOSFET Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FET, MOSFET Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
