FET, MOSFET Arrays
Compare the current FET, MOSFET Arrays FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJT7002H_R1_00001MOSFET 2N-CH 60V 0.25A SOT363 |
2,285 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 250mA (Ta) | 5Ohm @ 300mA, 10V | 3V @ 250µA | 1.3nC @ 4.5V | 22pF @ 25V | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
PJX8828_R1_00001MOSFET 2N-CH 30V 0.3A SOT563 |
2,201 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 30V | 300mA (Ta) | 1.2Ohm @ 300mA, 4.5V | 1V @ 250µA | 0.9nC @ 4.5V | 45pF @ 10V | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
|
PJX8872B_R1_00001MOSFET 2N-CH 60V 0.2A SOT563 |
2,950 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 200mA (Ta) | 3Ohm @ 600mA, 10V | 2.5V @ 250µA | 0.82nC @ 4.5V | 34pF @ 25V | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
|
PJX8807_R1_00001MOSFET 2P-CH 20V 0.5A SOT563 |
8,000 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 500mA (Ta) | 1.2Ohm @ 500mA, 4.5V | 1V @ 250µA | 1.4nC @ 4.5V | 38pF @ 10V | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|
|
PJX138K-AU_R1_000A1MOSFET 2N-CH 50V 0.35A SOT563 |
2,253 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 50V | 350mA (Ta) | 1.6Ohm @ 500mA, 10V | 1.5V @ 250µA | 1nC @ 4.5V | 50pF @ 25V | 223mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-563 |
|
|
PJX8802_R1_00001MOSFET 2N-CH 20V 0.7A SOT563 |
2,829 | - |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 700mA (Ta) | 150mOhm @ 700mA, 4.5V | 1V @ 250µA | 1.6nC @ 4.5V | 92pF @ 10V | 300mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|

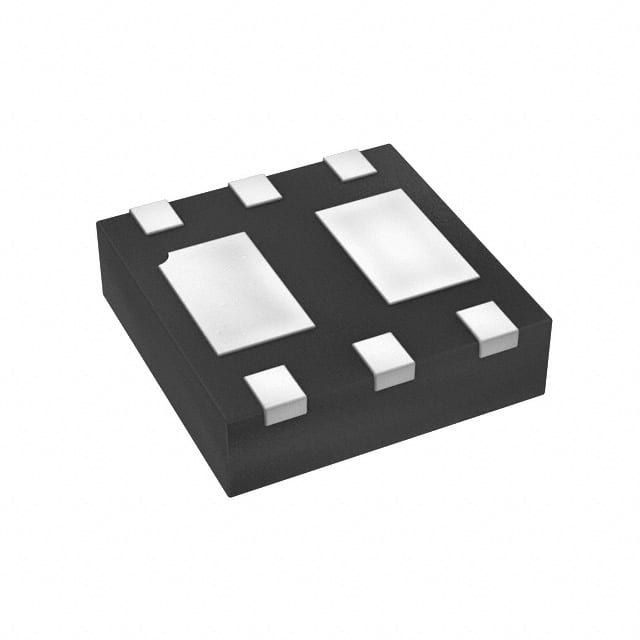

PJQ2800_R1_00001MOSFET 2N-CH 20V 5.2A 6DFN |
3,000 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 20V | 5.2A (Ta) | 32mOhm @ 5.2A, 4.5V | 900mV @ 250µA | 6.3nC @ 4.5V | 515pF @ 10V | 1.45W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020-6L |
|
PJQ2815_R1_00001MOSFET 2P-CH 20V 4.2A 6DFN |
7,625 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 P-Channel (Dual) | - | 20V | 4.2A (Ta) | 52mOhm @ 4.2A, 4.5V | 900mV @ 250µA | 24nC @ 4.5V | 907pF @ 10V | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020-6L |
|
PJQ4848P_R2_00001MOSFET 2N-CH 40V 9A 8DFN |
3,611 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 9A (Ta), 37A (Tc) | 15mOhm @ 8A, 10V | 2.5V @ 250µA | 10nC @ 4.5V | 1040pF @ 20V | 2W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333B-8 |
|
PJQ5866A_R2_00001MOSFET 2N-CH 60V 7A 8DFN |
2,728 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 7A (Ta), 40A (Tc) | 17mOhm @ 20A, 10V | 2.5V @ 250µA | 13.5nC @ 4.5V | 1574pF @ 25V | 1.7W (Ta), 56W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060B-8 |
FET, MOSFET Arrays FAQ
How can I narrow the current FET, MOSFET Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FET, MOSFET Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
