FET, MOSFET Arrays
Compare the current FET, MOSFET Arrays FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLA5086MOSFET 5P-CH 60V 5A 12SIP |
161 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Tube | Not For New Designs | MOSFET (Metal Oxide) | 5 P-Channel, Common Source | Logic Level Gate | 60V | 5A | 220mOhm @ 3A, 10V | 2V @ 250µA | - | 790pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SLA5065MOSFET 4N-CH 60V 7A 15ZIP |
722 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 4.8W | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
SLA5068MOSFET 6N-CH 60V 7A 15ZIP |
352 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
|
SLA5064MOSFET 3N/3P-CH 60V 10A 12SIP |
972 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | Logic Level Gate | 60V | 10A | 140mOhm @ 5A, 4V | - | - | 460pF @ 10V, 1200pF @ 10V | 5W | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

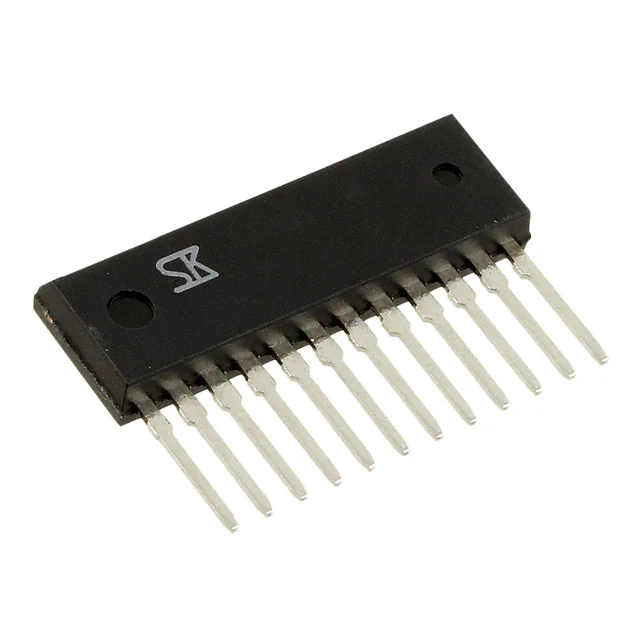

SMA5131MOSFET 6N-CH 250V 2A 12SIP |
81 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 250V | 2A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
|
SMA5133MOSFET 3N/3P-CH 500V 2.5A 12SIP |
84 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 500V | 2.5A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
|
SMA5132MOSFET 3N/3P-CH 500V 1.5A 12SIP |
95 | - |
|
Datasheet | - | 12-SIP | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 500V | 1.5A | - | - | - | - | - | - | - | - | Through Hole | 12-SIP |
|
SLA5065 LF830MOSFET 4N-CH 60V 7A 15SIP |
60 | - |
|
Datasheet | - | 15-SIP | Tube | Active | MOSFET (Metal Oxide) | 4 N-Channel | - | 60V | 7A | 100mOhm @ 3.5A, 10V | 2V @ 250µA | - | 660pF @ 10V | 4.8W | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
|
SLA5201MOSFET 3N/3P-CH 600V 7A 15ZIP |
98 | - |
|
Datasheet | - | 15-SIP Exposed Tab, Formed Leads | Tube | Active | MOSFET (Metal Oxide) | 3 N and 3 P-Channel (3-Phase Bridge) | - | 600V | 7A | - | - | - | - | - | - | - | - | Through Hole | 15-ZIP |
|
SPF0004MOSFET 2N-CH 275V 6A 20HSOP |
45 | - |
|
Datasheet | - | 20-PowerSOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 275V | 6A (Ta) | 260mOhm @ 6A, 10V | 2.6V @ 1mA | - | 960pF @ 10V | 2.5W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 20-HSOP |
FET, MOSFET Arrays FAQ
How can I narrow the current FET, MOSFET Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FET, MOSFET Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
