FET, MOSFET Arrays
Browse available FET, MOSFET Arrays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TD9944TG-GMOSFET 2N-CH 240V 8SOIC |
12,021 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 240V | - | 6Ohm @ 500mA, 10V | 2V @ 1mA | - | 125pF @ 25V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
FDMA1024NZMOSFET 2N-CH 20V 5A 6MICROFET |
5,242 | - |
|
Datasheet | PowerTrench® | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 5A | 54mOhm @ 5A, 4.5V | 1V @ 250µA | 7.3nC @ 4.5V | 500pF @ 10V | 700mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
IPG20N10S436AATMA1MOSFET 2N-CH 100V 20A 8TDSON |
66,308 | - |
|
Datasheet | OptiMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 20A | 36mOhm @ 17A, 10V | 3.5V @ 16µA | 15nC @ 10V | 990pF @ 25V | 43W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PG-TDSON-8-10 |
|
SI4564DY-T1-GE3MOSFET N/P-CH 40V 10A/9.2A 8SOIC |
10,050 | - |
|
Datasheet | TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 40V | 10A, 9.2A | 17.5mOhm @ 8A, 10V | 2V @ 250µA | 31nC @ 10V | 855pF @ 20V | 3.1W, 3.2W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
TC2320TG-GMOSFET N/P-CH 200V 8SOIC |
6,226 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 200V | - | 7Ohm @ 1A, 10V | 2V @ 1mA | - | 110pF @ 25V, 125pF @ 25V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4288DY-T1-GE3MOSFET 2N-CH 40V 9.2A 8SOIC |
5,672 | - |
|
Datasheet | TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 40V | 9.2A | 20mOhm @ 10A, 10V | 2.5V @ 250µA | 15nC @ 10V | 580pF @ 20V | 3.1W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

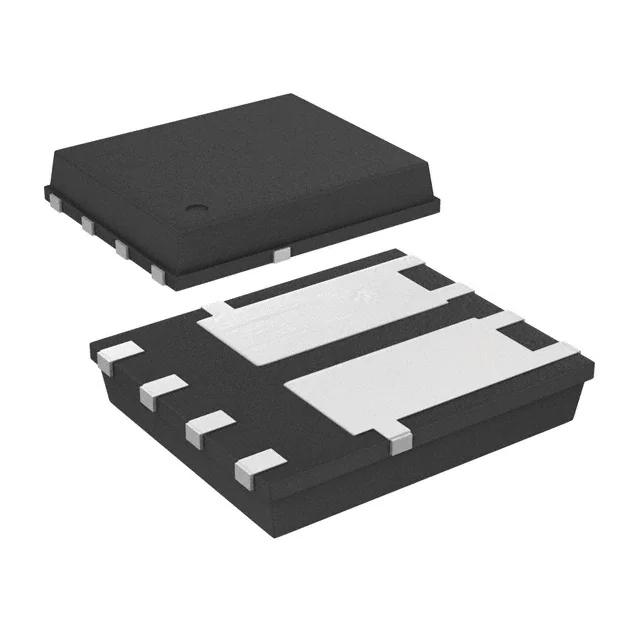

SI7272DP-T1-GE3MOSFET 2N-CH 30V 25A PPAK SO8 |
21,236 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 30V | 25A | 9.3mOhm @ 15A, 10V | 2.5V @ 250µA | 26nC @ 10V | 1100pF @ 15V | 22W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
SQJ560EP-T1_GE3MOSFET N/P-CH 60V 30A PPAK SO8 |
15,006 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | - | 60V | 30A (Tc), 18A (Tc) | 12mOhm @ 10A, 10V, 52.6mOhm @ 10A, 10V | 2.5V @ 250µA | 30nC @ 10V, 45nC @ 10V | 1650pF @ 25V | 34W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 Dual |
|
FDS89161LZMOSFET 2N-CH 100V 2.7A 8SOIC |
3,193 | - |
|
Datasheet | PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 2.7A | 105mOhm @ 2.7A, 10V | 2.2V @ 250µA | 5.3nC @ 10V | 302pF @ 50V | 1.6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI7288DP-T1-GE3MOSFET 2N-CH 40V 20A PPAK SO8 |
97,789 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 20A | 19mOhm @ 10A, 10V | 2.8V @ 250µA | 15nC @ 10V | 565pF @ 20V | 15.6W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 Dual |
|
STS8DN6LF6AGMOSFET 2N-CH 60V 8A 8SO |
2,309 |
1+：$2.02000 10+：$1.28400 50+：$0.96480 100+：$0.86180 500+：$0.68090 |
|
Datasheet | STripFET™ F6 | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 8A (Ta) | 24mOhm @ 4A, 10V | 2.5V @ 250µA | 27nC @ 10V | 1340pF @ 25V | 3.2W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SO |
|
FDC8602MOSFET 2N-CH 100V 1.2A SSOT6 |
10,518 | - |
|
Datasheet | PowerTrench® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 1.2A | 350mOhm @ 1.2A, 10V | 4V @ 250µA | 2nC @ 10V | 70pF @ 50V | 690mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SuperSOT™-6 |
|
|
FDS6890AMOSFET 2N-CH 20V 7.5A 8SOIC |
10,002 | - |
|
Datasheet | PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 20V | 7.5A | 18mOhm @ 7.5A, 4.5V | 1.5V @ 250µA | 32nC @ 4.5V | 2130pF @ 10V | 900mW | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SI4559ADY-T1-E3MOSFET N/P-CH 60V 5.3A 8SOIC |
68,136 | - |
|
Datasheet | TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate | 60V | 5.3A, 3.9A | 58mOhm @ 4.3A, 10V | 3V @ 250µA | 20nC @ 10V, 22nC @ 10V | 665pF @ 15V, 650pF @ 15V | 3.1W, 3.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ECH8690-TL-HMOSFET N/P-CH 60V 4.7A/3.5A 8ECH |
10,211 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | N and P-Channel | Logic Level Gate, 4V Drive | 60V | 4.7A, 3.5A | 55mOhm @ 2A, 10V | - | 18nC @ 10V | 955pF @ 20V, 790pF @ 20V | 1.5W | 150°C (TJ) | - | - | Surface Mount | 8-ECH |
|
|
FDS3992MOSFET 2N-CH 100V 4.5A 8SOIC |
7,201 | - |
|
Datasheet | PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 100V | 4.5A | 62mOhm @ 4.5A, 10V | 4V @ 250µA | 15nC @ 10V | 750pF @ 25V | 2.5W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
BSC112N06LDATMA1MOSFET 2N-CH 60V 20A 8TDSON |
7,482 | - |
|
Datasheet | OptiMOS™ T2 | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | Logic Level Gate | 60V | 20A (Tc) | 11.2mOhm @ 17A, 10V | 2.2V @ 28µA | 55nC @ 10V | 4020pF @ 30V | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TDSON-8-4 |
|
SI7216DN-T1-E3MOSFET 2N-CH 40V 6A PPAK 1212 |
8,626 | - |
|
Datasheet | TrenchFET® | PowerPAK® 1212-8 Dual | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 40V | 6A | 32mOhm @ 5A, 10V | 3V @ 250µA | 19nC @ 10V | 670pF @ 20V | 20.8W | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 Dual |
|
STL50DN6F7MOSFET 2N-CH 60V 57A POWERFLAT |
3,392 | - |
|
Datasheet | STripFET™ | 8-PowerVDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 57A (Tc) | 11mOhm @ 7.5A, 10V | 4V @ 250µA | 17nC @ 10V | 1035pF @ 30V | 62.5W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
DMNH6021SPDQ-13MOSFET 2N-CH 60V 8.2A PWRDI50 |
5,595 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | MOSFET (Metal Oxide) | 2 N-Channel (Dual) | - | 60V | 8.2A, 32A | 25mOhm @ 15A, 10V | 3V @ 250µA | 20.1nC @ 10V | 1143pF @ 25V | 1.5W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
