FETs, MOSFETs
Browse available FETs, MOSFETs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFL110TRPBF-BE3MOSFET N-CH 100V 1.5A SOT223 |
3,289 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.5A (Tc) | 10V | 540mOhm @ 900mA, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 2W (Ta), 3.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
IPN70R450P7SATMA1MOSFET N-CH 700V 10A SOT223 |
3,933 |
1+：$1.44000 10+：$0.90900 50+：$0.67700 100+：$0.60180 500+：$0.46970 |
|
Datasheet | CoolMOS™ P7 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 10A (Tc) | 10V | 450mOhm @ 2.3A, 10V | 3.5V @ 120µA | 13.1 nC @ 10 V | ±16V | 424 pF @ 400 V | - | 7.1W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223 |
|
IPD25N06S240ATMA2MOSFET N-CH 55V 29A TO252-31 |
2,427 | - |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 29A (Tc) | 10V | 40mOhm @ 13A, 10V | 4V @ 26µA | 18 nC @ 10 V | ±20V | 513 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
SI7114ADN-T1-GE3MOSFET N-CH 30V 35A PPAK 1212-8 |
20,676 | - |
|
Datasheet | TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Tc) | 4.5V, 10V | 7.5mOhm @ 18A, 10V | 2.5V @ 250µA | 32 nC @ 10 V | ±20V | 1230 pF @ 15 V | - | 3.7W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
RS1E280BNTBMOSFET N-CH 30V 28A 8HSOP |
19,987 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Ta), 80A (Tc) | 4.5V, 10V | 2.3mOhm @ 28A, 10V | 2.5V @ 1mA | 94 nC @ 10 V | ±20V | 5100 pF @ 15 V | - | 3W (Ta), 30W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSOP |
|
IPC70N04S5L4R2ATMA1MOSFET N-CH 40V 70A 8TDSON-34 |
4,956 |
1+：$1.46000 10+：$0.92100 50+：$0.68580 100+：$0.60980 500+：$0.47624 |
|
Datasheet | OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Tc) | 4.5V, 10V | 4.2mOhm @ 35A, 10V | 2V @ 17µA | 30 nC @ 10 V | ±16V | 1600 pF @ 25 V | - | 50W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-34 |
|
SQS142ENW-T1_GE3AUTOMOTIVE N-CHANNEL 40 V (D-S) |
5,998 | - |
|
Datasheet | TrenchFET® Gen IV | PowerPAK® 1212-8SLW | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 4.5mOhm @ 10A, 10V | 3.3V @ 250µA | 35 nC @ 10 V | ±20V | 1952 pF @ 25 V | - | 113W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerPAK® 1212-8SLW |
|

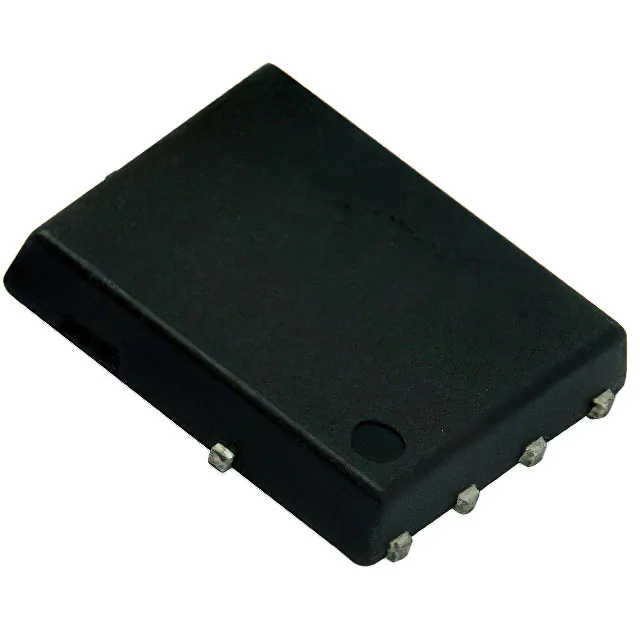

SIR1309DP-T1-GE3P-CHANNEL 30 V (D-S) MOSFET POWE |
4,519 | - |
|
Datasheet | TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 19.1A (Ta), 65.7A (Tc) | 4.5V, 10V | 7.3mOhm @ 10A, 10V | 2.5V @ 250µA | 87 nC @ 10 V | ±25V | 3250 pF @ 15 V | - | 4.8W (Ta), 56.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
.jpg "SIHFRC20TR-GE3")
|
SIHFRC20TR-GE3MOSFET N-CHANNEL 600V |
1,521 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Tc) | 10V | 4.4Ohm @ 1.2A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
IPA50R800CEXKSA2MOSFET N-CH 500V 4.1A TO220 |
287 | - |
|
Datasheet | CoolMOS™ CE | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.1A (Tc) | 13V | 800mOhm @ 1.5A, 13V | 3.5V @ 130µA | 12.4 nC @ 10 V | ±20V | 280 pF @ 100 V | - | 26.4W (Tc) | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-FP |
|
CSD25480F3TMOSFET P-CH 20V 1.7A 3PICOSTAR |
8,416 |
1+：$1.45000 10+：$0.91000 50+：$0.67760 100+：$0.60240 |
|
Datasheet | FemtoFET™ | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.7A (Ta) | 1.8V, 8V | 132mOhm @ 400mA, 8V | 1.2V @ 250µA | 0.91 nC @ 10 V | -12V | 155 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
|
|
CSD23280F3TMOSFET P-CH 12V 1.8A 3PICOSTAR |
11,269 |
1+：$1.43000 10+：$0.90200 50+：$0.67120 100+：$0.59660 |
|
Datasheet | FemtoFET™ | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 1.8A (Ta) | 1.5V, 4.5V | 116mOhm @ 400mA, 4.5V | 950mV @ 250µA | 1.23 nC @ 4.5 V | -6V | 234 pF @ 6 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
|
NTMFS4C05NT1GMOSFET N-CH 30V 11.9A 5DFN |
8,400 | - |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.9A (Ta) | 4.5V, 10V | 3.4mOhm @ 30A, 10V | 2.2V @ 250µA | 14 nC @ 4.5 V | ±20V | 1972 pF @ 15 V | - | 770mW (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
FDMS0308ASMOSFET N-CH 30V 24A/49A 8PQFN |
6,754 | - |
|
Datasheet | PowerTrench®, SyncFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 49A (Tc) | 4.5V, 10V | 2.8mOhm @ 24A, 10V | 3V @ 1mA | 47 nC @ 10 V | ±20V | 3000 pF @ 15 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
MCG53N06A-TPN-CHANNEL MOSFET,DFN3333 |
6,830 |
1+：$1.63000 10+：$1.02900 50+：$0.76560 100+：$0.68050 500+：$0.53102 |
|
Datasheet | - | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 53A | 4.5V, 10V | 8.2mOhm @ 20A, 10V | 2.5V @ 250µA | 34 nC @ 10 V | ±20V | 2000 pF @ 35 V | - | 45W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333 |
|
CSD25483F4TMOSFET P-CH 20V 1.6A 3PICOSTAR |
2,390 |
1+：$1.48000 10+：$0.93500 50+：$0.69660 100+：$0.61960 |
|
Datasheet | FemtoFET™ | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.6A (Ta) | 1.8V, 4.5V | 205mOhm @ 500mA, 8V | 1.2V @ 250µA | 0.96 nC @ 4.5 V | -12V | 198 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
|
|
SIS890ADN-T1-GE3MOSFET N-CH 100V 7.6A/24.7A PPAK |
4,707 | - |
|
Datasheet | - | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.6A (Ta), 24.7A (Tc) | - | 25.5mOhm @ 10A, 10V | 2.5V @ 250µA | 29 nC @ 10 V | ±20V | 1330 pF @ 50 V | - | 3.6W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
PSMN4R2-30MLDXMOSFET N-CH 30V 70A LFPAK33 |
3,448 | - |
|
Datasheet | - | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 70A (Tc) | 4.5V, 10V | 4.3mOhm @ 25A, 10V | 2.2V @ 1mA | 29.3 nC @ 10 V | ±20V | 1795 pF @ 15 V | Schottky Diode (Body) | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK33 |
|
|
BUK9M9R1-40EXMOSFET N-CH 40V 64A LFPAK33 |
3,194 | - |
|
Datasheet | TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 64A (Tc) | 5V | 7.3mOhm @ 20A, 10V | 2.1V @ 1mA | 16.2 nC @ 5 V | ±10V | 2048 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
STS1NK60ZMOSFET N-CH 600V 250MA 8SO |
1,708 |
1+：$1.41000 10+：$0.88800 50+：$0.66060 100+：$0.58690 500+：$0.45768 |
|
Datasheet | SuperMESH™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 250mA (Tc) | 10V | 15Ohm @ 400mA, 10V | 4.5V @ 50µA | 6.9 nC @ 10 V | ±30V | 94 pF @ 25 V | - | 2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
FETs, MOSFETs FAQ
What FETs, MOSFETs components can I source from EGOO?
You can browse available FETs, MOSFETs product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete FETs, MOSFETs parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
