FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMN30XPEAXSMALL SIGNAL MOSFET FOR AUTOMOTI |
6,000 | - |
|
Datasheet | TrenchMOS™ | SC-74, SOT-457 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 5.4A (Ta) | 2.5V, 8V | 33mOhm @ 5.4A, 8V | 1.3V @ 250µA | 16 nC @ 4.5 V | ±12V | 1025 pF @ 10 V | - | 660mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
PMZB950UPEYLMOSFET P-CH 20V 500MA DFN1006B-3 |
8,320 | - |
|
Datasheet | - | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 500mA (Ta) | 1.2V, 4.5V | 1.4Ohm @ 500mA, 4.5V | 950mV @ 250µA | 2.1 nC @ 4.5 V | ±8V | 43 pF @ 10 V | - | 360mW (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006B-3 |
|
PMN230ENEAXMOSFET N-CH 60V 1.8A 6TSOP |
7,478 | - |
|
Datasheet | - | SC-74, SOT-457 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1.8A (Ta) | 4.5V, 10V | 222mOhm @ 1.8A, 10V | 2.7V @ 250µA | 3.8 nC @ 10 V | ±20V | 110 pF @ 30 V | - | 625mW (Ta), 5.4W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|

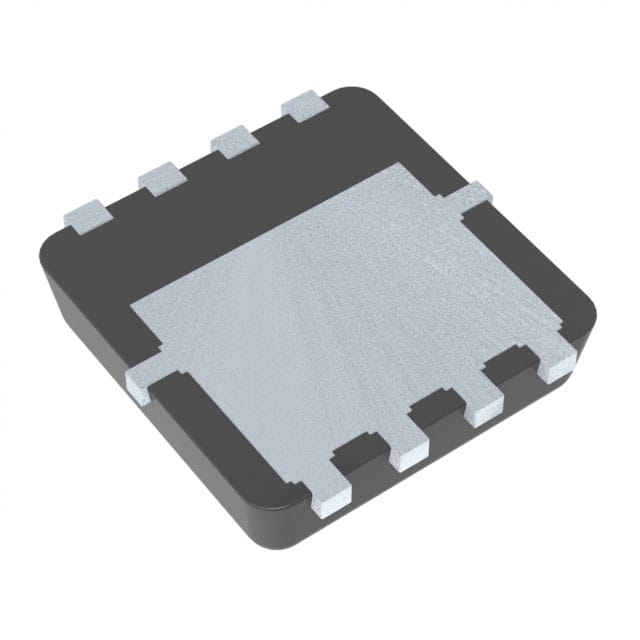

PXN9R0-30QLJPXN9R0-30QL/SOT8002/MLPAK33 |
4,681 | - |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11.4A (Ta), 41.8A (Tc) | 4.5V, 10V | 9.1mOhm @ 11.4A, 10V | 2.5V @ 250µA | 20.7 nC @ 10 V | ±20V | 865 pF @ 15 V | - | 1.9W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PXN7R7-25QLJPXN7R7-25QL/SOT8002/MLPAK33 |
5,317 | - |
|
Datasheet | TrenchMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 11.8A (Ta), 32A (Tc) | 4.5V, 10V | 7.7mOhm @ 11.8A, 10V | 2.2V @ 250µA | 16.6 nC @ 10 V | ±20V | 770 pF @ 12.5 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PXN6R2-25QLJPXN6R2-25QL/SOT8002/MLPAK33 |
4,963 | - |
|
Datasheet | TrenchMOS™ | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 13.1A (Ta), 65A (Tc) | 4.5V, 10V | 6.2mOhm @ 13.1A, 10V | 2.2V @ 250µA | 25.5 nC @ 10 V | ±20V | 1200 pF @ 12.5 V | - | 1.7W (Ta), 40.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
PMV74EPERMOSFET P-CH 30V 2.8A TO236AB |
11,445 | - |
|
Datasheet | TrenchMOS™ | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.8A (Ta) | 4.5V, 10V | 90mOhm @ 2.8A, 10V | 3V @ 250µA | 10 nC @ 10 V | ±20V | 356 pF @ 15 V | - | 510mW (Ta), 6.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-236AB |
|
PXP020-20QXJPXP020-20QX/SOT8002/MLPAK33 |
6,181 | - |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Ta), 23.5A (Tc) | 2.5V, 4.5V | 20mOhm @ 7.7A, 4.5V | 1.25V @ 250µA | 29.1 nC @ 4.5 V | ±12V | 1900 pF @ 10 V | - | 1.7W (Ta), 15W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PXP011-20QXJPXP011-20QX/SOT8002/MLPAK33 |
5,885 | - |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 10.5A (Ta), 56.6A (Tc) | 2.5V, 4.5V | 11.4mOhm @ 10.5A, 4.5V | 1.25V @ 250µA | 65.1 nC @ 4.5 V | ±12V | 4200 pF @ 10 V | - | 1.8W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
|
PMPB19R0UPEXSMALL SIGNAL MOSFETS FOR PORTABL |
2,156 | - |
|
Datasheet | - | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.6A (Ta) | 1.5V, 4.5V | 21mOhm @ 7.6A, 4.5V | 900mV @ 250µA | 24 nC @ 4.5 V | ±10V | 1275 pF @ 10 V | - | 1.8W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020M-6 |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
