FETs, MOSFETs
Browse available FETs, MOSFETs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN2400UFB4-7BMOSFET N-CH X2-DFN1006-3 |
5,711 | - |
|
Datasheet | - | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 750mA (Ta) | 1.8V, 4.5V | 550mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.5 nC @ 4.5 V | ±12V | 36 pF @ 16 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-3 |
|
|
DMN2400UFB4-7RMOSFET N-CH X2-DFN1006-3 |
6,123 | - |
|
Datasheet | - | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 750mA (Ta) | 1.8V, 4.5V | 550mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.5 nC @ 4.5 V | ±12V | 36 pF @ 16 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-3 |
|
|
DMN2500UFB4-7BMOSFET N-CH X2-DFN1006-3 |
3,483 | - |
|
Datasheet | - | 3-XFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 810mA (Ta) | 1.8V, 4.5V | 400mOhm @ 600mA, 4.5V | 1V @ 250µA | 0.737 nC @ 4.5 V | ±6V | 60.67 pF @ 16 V | - | 460mW (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X2-DFN1006-3 |
|
|
DMN62D0LFD-13MOSFET N-CH X1-DFN1212-3 |
5,047 | - |
|
Datasheet | - | 3-UDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 310mA (Ta) | 1.8V, 4V | 2Ohm @ 100mA, 4V | 1V @ 250µA | 0.5 nC @ 4.5 V | ±20V | 31 pF @ 25 V | - | 480mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1212-3 |
|
|
DMS3014SFG-13MOSFET N-CH POWERDI3333-8 |
4,785 | - |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 4.5V, 10V | 13mOhm @ 10.4A, 10V | 2.2V @ 250µA | 45.7 nC @ 10 V | ±12V | 4310 pF @ 15 V | Schottky Diode (Body) | 1W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
NVD5807NT4G-VF01MOSFET N-CH 40V 23A DPAK |
6,786 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 23A (Tc) | 4.5V, 10V | 31mOhm @ 5A, 10V | 2.5V @ 250µA | 20 nC @ 10 V | ±20V | 603 pF @ 25 V | - | 33W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
NVD6416ANLT4GMOSFET N-CH 100V 19A DPAK |
9,575 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Tc) | 4.5V, 10V | 74mOhm @ 19A, 10V | 2.2V @ 250µA | 40 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK-3 |
|
NVD6495NLT4GMOSFET N-CH 100V 25A DPAK |
9,516 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A (Tc) | 4.5V, 10V | 50mOhm @ 10A, 10V | 2V @ 250µA | 35 nC @ 10 V | ±20V | 1024 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|

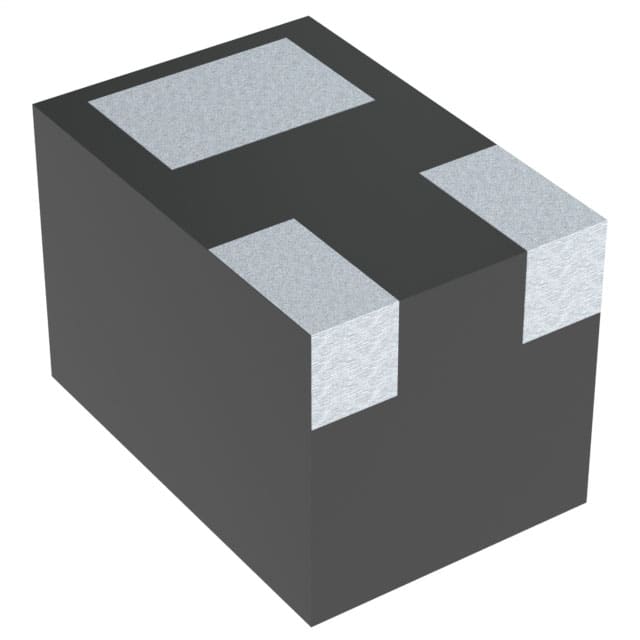

NTNS5K0P021ZTCGMOSFET P-CH 20V 127MA 3XDFN |
8,856 | - |
|
Datasheet | - | 3-XFDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 127mA (Ta) | 1.5V, 4.5V | 5Ohm @ 100mA, 4.5V | 1V @ 250µA | - | ±8V | 12.8 pF @ 15 V | - | 125mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-XDFN (0.42x0.62) |
|
|
TSM2311CX-01 RFGMOSFET P-CH 20V 4A SOT23 |
5,732 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 2.5V, 4.5V | 55mOhm @ 4A, 4.5V | 1.4V @ 250µA | 9 nC @ 4.5 V | ±8V | 640 pF @ 6 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
TSM10N60CZ C0GMOSFET N-CH 600V 10A TO220 |
8,092 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 750mOhm @ 5A, 10V | 4V @ 250µA | 45.8 nC @ 10 V | ±30V | 1738 pF @ 25 V | - | 166W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TSM22P10CI C0GMOSFET P-CH 100V 22A ITO220 |
5,265 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 22A (Tc) | 4.5V, 10V | 140mOhm @ 20A, 10V | 3V @ 250µA | 42 nC @ 10 V | ±25V | 2250 pF @ 30 V | - | 48W (Tc) | 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
TSM22P10CZ C0GMOSFET P-CH 100V 22A TO220 |
8,050 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 22A (Tc) | 4.5V, 10V | 140mOhm @ 20A, 10V | 3V @ 250µA | 42 nC @ 10 V | ±25V | 2250 pF @ 30 V | - | 125W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TSM230N06CI C0GMOSFET N-CH 60V 50A ITO220 |
6,455 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 4.5V, 10V | 23mOhm @ 20A, 10V | 2.5V @ 250µA | 28 nC @ 10 V | ±20V | 1680 pF @ 25 V | - | 42W (Tc) | 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
TSM480P06CI C0GMOSFET P-CH 60V 20A ITO220 |
6,126 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 48mOhm @ 8A, 10V | 2.2V @ 250µA | 22.4 nC @ 10 V | ±20V | 1250 pF @ 30 V | - | 27W (Tc) | -50°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
TSM480P06CZ C0GMOSFET P-CH 60V 20A TO220 |
9,265 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 48mOhm @ 8A, 10V | 2.2V @ 250µA | 22.4 nC @ 10 V | ±20V | 1250 pF @ 30 V | - | 66W (Tc) | -50°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
TSM680P06CI C0GMOSFET P-CH 60V 18A ITO220 |
9,949 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | 4.5V, 10V | 68mOhm @ 6A, 10V | 2.2V @ 250µA | 16.4 nC @ 10 V | ±20V | 870 pF @ 30 V | - | 17W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220 |
|
|
TSM680P06CZ C0GMOSFET P-CH 60V 18A TO220 |
3,949 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | 4.5V, 10V | 68mOhm @ 6A, 10V | 2.2V @ 250µA | 16.4 nC @ 10 V | ±20V | 870 pF @ 30 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
2N7000-APMOSFET N-CH 60V 200MA TO92 |
3,899 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220mA (Ta) | 10V | 5Ohm @ 500mA, 10V | 3V @ 1mA | - | ±20V | 60 pF @ 25 V | - | 625mW (Ta) | -55°C ~ 150°C | - | - | Through Hole | TO-92 |
|
MCMP06-TPMOSFET P-CH 2A DFN2020-6U |
5,647 | - |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | - | - | 2A (Ta) | - | 110mOhm @ 2.8A, 4.5V | 1V @ 250µA | - | - | - | Schottky Diode (Isolated) | - | 150°C (TJ) | - | - | Surface Mount | DFN2020-6U |
FETs, MOSFETs FAQ
What FETs, MOSFETs components can I source from EGOO?
You can browse available FETs, MOSFETs product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete FETs, MOSFETs parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
