FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTP75N03-006MOSFET N-CH 30V 75A TO220AB |
7,134 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 10V | 6.5mOhm @ 37.5A, 10V | 2V @ 250µA | 75 nC @ 5 V | ±20V | 5635 pF @ 25 V | - | 2.5W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
FQU13N06LTU-WSMOSFET N-CH 60V 11A IPAK |
23,543 | - |
|
Datasheet | QFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Tc) | 5V, 10V | 115mOhm @ 5.5A, 10V | 2.5V @ 250µA | 6.4 nC @ 5 V | ±20V | 350 pF @ 25 V | - | 2.5W (Ta), 28W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
2SK4101FS-V-HNCH 10V DRIVE SERIES |
1,082 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDB8442-F085MOSFET N-CH 40V 28A TO263AB |
6,903 | - |
|
Datasheet | PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 28A (Ta) | 10V | 5mOhm @ 80A, 10V | 4V @ 250µA | 235 nC @ 10 V | ±20V | 12200 pF @ 25 V | - | 254W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|

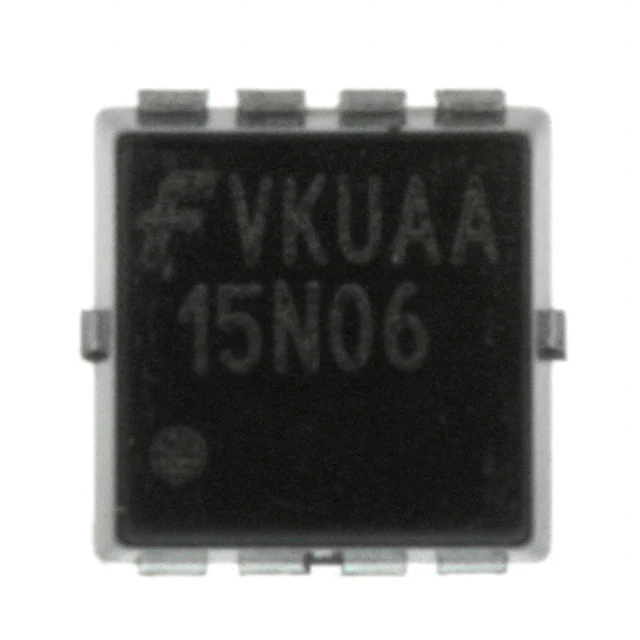

FDMC15N06MOSFET N-CH 55V 2.4A/15A 8MLP |
7,611 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 2.4A (Ta), 15A (Tc) | 10V | 900mOhm @ 15A, 10V | 4V @ 250µA | 11.5 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 2.3W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
|
NTP5404NRGMOSFET N-CH 40V 24A/167A TO220AB |
4,215 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 24A (Ta), 167A (Tc) | 5V, 10V | 4.5mOhm @ 40A, 10V | 3.5V @ 250µA | 125 nC @ 10 V | ±20V | 7000 pF @ 32 V | - | 5.4W (Ta), 254W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
2SJ660-DL-EPCH 4V DRIVE SERIES |
737 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDMS7558SMOSFET N-CH 25V 32A/49A 8QFN |
2,126 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 32A (Ta), 49A (Tc) | 4.5V, 10V | 1.25mOhm @ 32A, 10V | 3V @ 1mA | 119 nC @ 10 V | ±20V | 7770 pF @ 13 V | - | 2.5W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
ATP108-TL-HMOSFET P-CH 40V 70A ATPAK |
4,916 | - |
|
Datasheet | - | ATPAK (2 Leads+Tab) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Ta) | 4.5V, 10V | 10.4mOhm @ 35A, 10V | - | 79.5 nC @ 10 V | ±20V | 3850 pF @ 20 V | - | 60W (Tc) | 150°C (TJ) | - | - | Surface Mount | ATPAK |
|
FDMS36101L-F085MOSFET N-CH 100V 38A POWER56 |
8,277 | - |
|
Datasheet | PowerTrench® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 38A (Tc) | 4.5V, 10V | 26mOhm @ 20A, 10V | 3V @ 250µA | 84 nC @ 10 V | ±20V | 3945 pF @ 25 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
