FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTC040N120SC1SIC MOS WAFER SALES 40MOHM 1200V |
819 | - |
|
Datasheet | - | Die | Tray | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 60A (Tc) | 20V | 56mOhm @ 35A, 20V | 4.3V @ 10mA | 106 nC @ 20 V | +25V, -15V | 1781 pF @ 800 V | - | 348W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
|
FCH47N60NMOSFET N-CH 600V 47A TO247-3 |
18 | - |
|
Datasheet | SupreMOS™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 62mOhm @ 23.5A, 10V | 4V @ 250µA | 151 nC @ 10 V | ±30V | 6700 pF @ 100 V | - | 368W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg "NTHLD040N65S3HF")
|

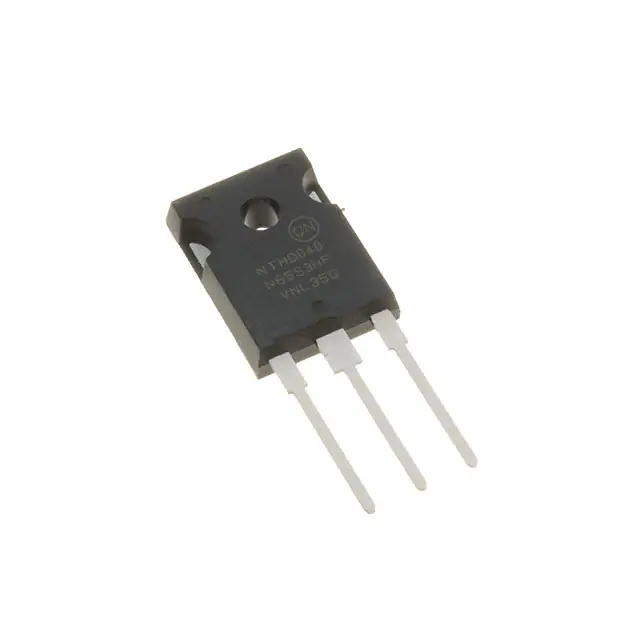

NTHLD040N65S3HFMOSFET N-CH 650V 65A TO247 |
3,096 | - |
|
Datasheet | FRFET®, SuperFET® III | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 65A (Tc) | 10V | 40mOhm @ 32.5A, 10V | 5V @ 2.1mA | 159 nC @ 10 V | ±30V | 5945 pF @ 400 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
NVBLS0D7N06CMOSFET N-CH 60V 54A/470A 8HPSOF |
1,600 | - |
|
Datasheet | - | 8-PowerSFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 54A (Ta), 470A (Tc) | 10V | 0.75mOhm @ 80A, 10V | 4V @ 661µA | 170 nC @ 10 V | ±20V | 13730 pF @ 30 V | - | 4.2W (Ta), 314W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-HPSOF |
|
FCH041N60F-F085MOSFET N-CH 600V 76A TO247-3 |
444 | - |
|
Datasheet | SuperFET® II | TO-247-3 | Tube | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 76A (Tc) | 10V | 41mOhm @ 38A, 10V | 5V @ 250µA | 347 nC @ 10 V | ±20V | 10900 pF @ 25 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
NTBGS001N06CPOWER MOSFET, 60 V, 1.1 M?, 342 |
546 | - |
|
Datasheet | - | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 42A (Ta), 342A (Tc) | 10V, 12V | 1.1mOhm @ 112A, 12V | 4V @ 562µA | 139 nC @ 10 V | ±20V | 11110 pF @ 30 V | - | 3.7W (Ta), 245W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
FCH085N80-F155MOSFET N-CH 800V 46A TO247 |
437 | - |
|
Datasheet | SuperFET® II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 46A (Tc) | 10V | 85mOhm @ 23A, 10V | 4.5V @ 4.6mA | 255 nC @ 10 V | ±20V | 10825 pF @ 100 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
NVBGS4D1N15MCMOSFET N-CH 150V 20A/185A D2PAK |
364 | - |
|
Datasheet | - | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 20A (Ta), 185A (Tc) | 8V, 10V | 4.1mOhm @ 104A, 10V | 4.5V @ 574µA | 88.9 nC @ 10 V | ±20V | 7285 pF @ 75 V | - | 3.7W (Ta), 316W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
FCA76N60NMOSFET N-CH 600V 76A TO3PN |
1,348 | - |
|
Datasheet | SupreMOS™ | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 76A (Tc) | 10V | 36mOhm @ 38A, 10V | 4V @ 250µA | 285 nC @ 10 V | ±30V | 12385 pF @ 100 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3PN |
|
SCP114AMX180TCG300 MA CMOS LDO, AD OPTION, VOUT |
90,000 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
