FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RRR040P03HZGTLMOSFET P-CH 30V 4A TSMT3 |
8,371 | - |
|
Datasheet | - | SC-96 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 4V, 10V | 45mOhm @ 4A, 10V | 2.5V @ 1mA | 10.5 nC @ 5 V | ±20V | 1000 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSMT3 |
|
RF4L040ATTCRPCH -60V -4A POWER, DFN2020, MOS |
5,937 | - |
|
Datasheet | - | 6-PowerUDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 4A (Ta) | 4.5V, 10V | 89mOhm @ 4A, 10V | 2.5V @ 1mA | 17.3 nC @ 10 V | ±20V | 850 pF @ 30 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
RS3E075ATTBMOSFET P-CH 30V 8SOP |
4,849 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | - | 4.5V, 10V | 23.5mOhm @ 7.5A, 10V | 2.5V @ 1mA | 25 nC @ 10 V | ±20V | 1250 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP-J |
|
RV5A040APTCR1MOSFET P-CH 12V 4A DFN1616-6 |
5,995 | - |
|
Datasheet | - | 6-PowerWFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4A (Ta) | 1.5V, 4.5V | 62mOhm @ 4A, 4.5V | 1V @ 1mA | 16 nC @ 4.5 V | -8V, 0V | 2000 pF @ 6 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | DFN1616-8S |
|

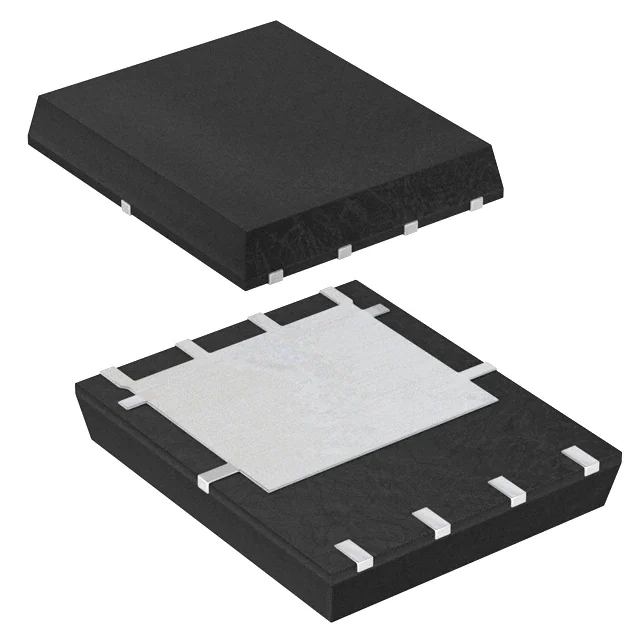

RS1E280BNTBMOSFET N-CH 30V 28A 8HSOP |
19,987 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Ta), 80A (Tc) | 4.5V, 10V | 2.3mOhm @ 28A, 10V | 2.5V @ 1mA | 94 nC @ 10 V | ±20V | 5100 pF @ 15 V | - | 3W (Ta), 30W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSOP |
|
|
RS1E240GNTBMOSFET N-CH 30V 24A 8HSOP |
8,128 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta), 72A (Tc) | 4.5V, 10V | 3.3mOhm @ 24A, 10V | 2.5V @ 1mA | 23 nC @ 10 V | ±20V | 1500 pF @ 15 V | - | 3W (Ta), 27W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-HSOP |
|
RQ1E050RPTRMOSFET P-CH 30V 5A TSMT8 |
427 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5A (Ta) | 4V, 10V | 31mOhm @ 5A, 10V | 2.5V @ 1mA | 28 nC @ 10 V | ±20V | 1300 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
RRQ045P03TRMOSFET P-CH 30V 4.5A TSMT6 |
5,215 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 4V, 10V | 35mOhm @ 4.5A, 10V | 2.5V @ 1mA | 14 nC @ 5 V | ±20V | 1350 pF @ 10 V | - | 600mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
;;6.jpg "RF4L055GNTCR")
|
RF4L055GNTCRMOSFET N-CH 60V 5.5A HUML2020L8 |
13,791 | - |
|
Datasheet | - | 8-PowerUDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 5.5A (Ta) | 4.5V, 10V | 43mOhm @ 5.5A, 10V | 2.7V @ 1mA | 7.8 nC @ 10 V | ±20V | 400 pF @ 30 V | - | 2W (Ta) | 150°C (TJ) | - | - | Surface Mount | HUML2020L8 |
|
|
R6000ENHTB1600V 0.5A, SOP8, LOW-NOISE POWER |
2,104 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 500mA (Ta) | 10V | 8.8Ohm @ 200mA, 10V | 5V @ 1mA | 4.3 nC @ 10 V | ±20V | 45 pF @ 25 V | - | 2W (Ta) | 150°C | - | - | Surface Mount | 8-SOP |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
