FETs, MOSFETs
Browse available FETs, MOSFETs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF40B207MOSFET N-CH 40V 95A TO220AB |
1,841 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 6V, 10V | 4.5mOhm @ 57A, 10V | 3.9V @ 50µA | 68 nC @ 10 V | ±20V | 2110 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IPD50P03P4L11ATMA2MOSFET P-CH 30V 50A TO252-31 |
19,021 | - |
|
Datasheet | OptiMOS™ P2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | - | 10.5mOhm @ 50A, 10V | 2V @ 85µA | 55 nC @ 10 V | +5V, -16V | 3770 pF @ 25 V | - | 58W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
RQ6L020SPTCRMOSFET P-CH 60V 2A TSMT6 |
15,100 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 4V, 10V | 210mOhm @ 2A, 10V | 3V @ 1mA | 7.2 nC @ 5 V | ±20V | 750 pF @ 10 V | - | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
IPA65R1K0CEXKSA1MOSFET N-CH 650V 7.2A TO220 |
1,456 | - |
|
Datasheet | CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.2A (Tc) | 10V | 1Ohm @ 1.5A, 10V | 3.5V @ 200µA | 15.3 nC @ 10 V | ±20V | 328 pF @ 100 V | - | 68W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
|
IPD040N03LGATMA1MOSFET N-CH 30V 90A TO252-3 |
186 | - |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | 2.2V @ 250µA | 38 nC @ 10 V | ±20V | 3900 pF @ 15 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
FDMA7672MOSFET N-CH 30V 9A 6MICROFET |
7,388 | - |
|
Datasheet | PowerTrench® | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 21mOhm @ 9A, 10V | 3V @ 250µA | 13 nC @ 10 V | ±20V | 760 pF @ 15 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
RQ7G080BGTCRNCH 40V 8A, TSMT8, POWER MOSFET |
5,756 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Ta) | 4.5V, 10V | 16.5mOhm @ 8A, 10V | 2.5V @ 1mA | 10.6 nC @ 10 V | ±20V | 530 pF @ 20 V | - | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
SVD2955T4GMOSFET P-CH 60V 12A DPAK |
4,682 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta) | 10V | 180mOhm @ 6A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 750 pF @ 25 V | - | 55W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
TPH14006NH,L1QMOSFET N CH 60V 14A 8-SOP ADV |
4,380 | - |
|
Datasheet | U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta) | 6.5V, 10V | 14mOhm @ 7A, 10V | 4V @ 200µA | 16 nC @ 10 V | ±20V | 1300 pF @ 30 V | - | 1.6W (Ta), 32W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
IPD050N03LGATMA1MOSFET N-CH 30V 50A TO252-3 |
3,430 | - |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 5mOhm @ 30A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 3200 pF @ 15 V | - | 68W (Tc) | -55°C ~ 155°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
RW4E045AJTCL1NCH 30V 4.5A POWER MOSFET: RW4E0 |
1,919 | - |
|
Datasheet | - | 6-PowerUFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 2.5V, 4.5V | 40mOhm @ 4.5A, 4.5V | 1.5V @ 1mA | 4 nC @ 4.5 V | ±12V | 450 pF @ 15 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | DFN1616-7T |
|
|
FDWS86380-F085MOSFET N-CH 80V 50A POWER56 |
1,434 | - |
|
Datasheet | PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 50A (Tc) | 10V | 13.4mOhm @ 50A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1440 pF @ 40 V | - | 75W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
|
|
IPD50N06S409ATMA2MOSFET N-CH 60V 50A TO252-31 |
250 | - |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 9mOhm @ 50A, 10V | 4V @ 34µA | 47.1 nC @ 10 V | ±20V | 3785 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
AON7418MOSFET N-CH 30V 46A/50A 8DFN |
77,308 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 46A (Ta), 50A (Tc) | 4.5V, 10V | 1.7mOhm @ 20A, 10V | 2.2V @ 250µA | 65 nC @ 10 V | ±20V | 2994 pF @ 15 V | - | 6.2W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3.3x3.3) |
|
SI7629DN-T1-GE3MOSFET P-CH 20V 35A PPAK1212-8 |
15,784 | - |
|
Datasheet | TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 2.5V, 10V | 4.6mOhm @ 20A, 10V | 1.5V @ 250µA | 177 nC @ 10 V | ±12V | 5790 pF @ 10 V | - | 3.7W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI3438DV-T1-GE3MOSFET N-CH 40V 7.4A 6TSOP |
15,425 | - |
|
Datasheet | TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 7.4A (Tc) | 4.5V, 10V | 35.5mOhm @ 5A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 640 pF @ 20 V | - | 2W (Ta), 3.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SQJ443EP-T2_GE3P-CHANNEL 40-V (D-S) 175C MOSFET |
11,528 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 29mOhm @ 18A, 10V | 2.5V @ 250µA | 57 nC @ 10 V | ±20V | 2030 pF @ 20 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
ISZ56DP15LMATMA1TRENCH >=100V |
9,850 | - |
|
Datasheet | - | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 1.35A (Ta), 6.7A (Tc) | 4.5V, 10V | 560mOhm @ 5A, 10V | 2V @ 724µA | 40 nC @ 10 V | ±20V | 1400 pF @ 75 V | - | 2.5W (Ta), 62.5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TSDSON-8 FL |
;;2.jpg "STD64N4F6AG")
|
STD64N4F6AGMOSFET N-CH 40V 54A DPAK |
5,836 | - |
|
Datasheet | STripFET™ F6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 54A (Tc) | 10V | 8.2mOhm @ 27A, 10V | 4.5V @ 250µA | 44 nC @ 10 V | ±20V | 2415 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|

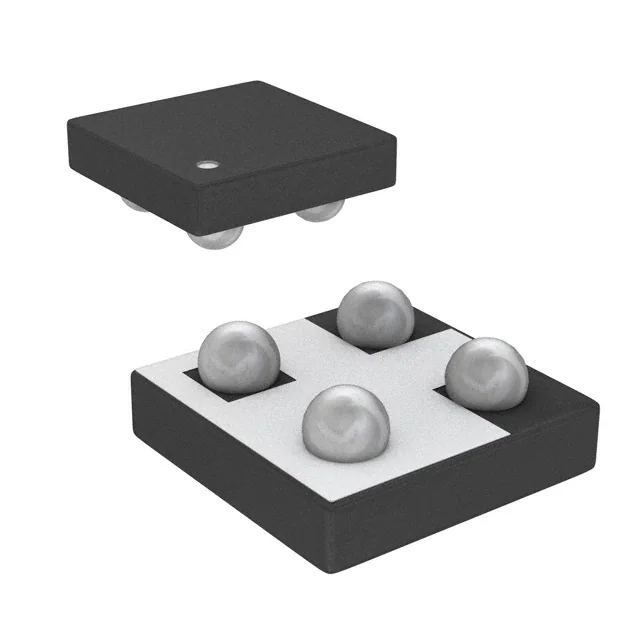

SI8409DB-T1-E1MOSFET P-CH 30V 4.6A 4MICROFOOT |
5,173 | - |
|
Datasheet | TrenchFET® | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Ta) | 2.5V, 4.5V | 46mOhm @ 1A, 4.5V | 1.4V @ 250µA | 26 nC @ 4.5 V | ±12V | - | - | 1.47W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
FETs, MOSFETs FAQ
What FETs, MOSFETs components can I source from EGOO?
You can browse available FETs, MOSFETs product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete FETs, MOSFETs parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
