FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STFI31N65M5MOSFET N CH 650V 22A I2PAKFP |
1,479 | - |
|
Datasheet | MDmesh™ V | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 148mOhm @ 11A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±25V | 1865 pF @ 100 V | - | 30W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-281 (I2PAKFP) |
|
STF120NF10MOSFET N-CH 100V 41A TO220FP |
711 | - |
|
Datasheet | STripFET™ II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 41A (Tc) | 10V | 10.5mOhm @ 60A, 10V | 4V @ 250µA | 233 nC @ 10 V | ±20V | 5200 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220FP |
|
STB13NK60ZT4MOSFET N-CH 600V 13A D2PAK |
653 | - |
|
Datasheet | SuperMESH™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 550mOhm @ 4.5A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2030 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
STP52N25M5MOSFET N-CH 250V 28A TO220 |
551 | - |
|
Datasheet | MDmesh™ V | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 28A (Tc) | 10V | 65mOhm @ 14A, 10V | 5V @ 100µA | 47 nC @ 10 V | ±25V | 1770 pF @ 50 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
STI18N65M5MOSFET N CH 650V 15A I2PAK |
348 | - |
|
Datasheet | MDmesh™ V | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 220mOhm @ 7.5A, 10V | 5V @ 250µA | 31 nC @ 10 V | ±25V | 1240 pF @ 100 V | - | 110W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|

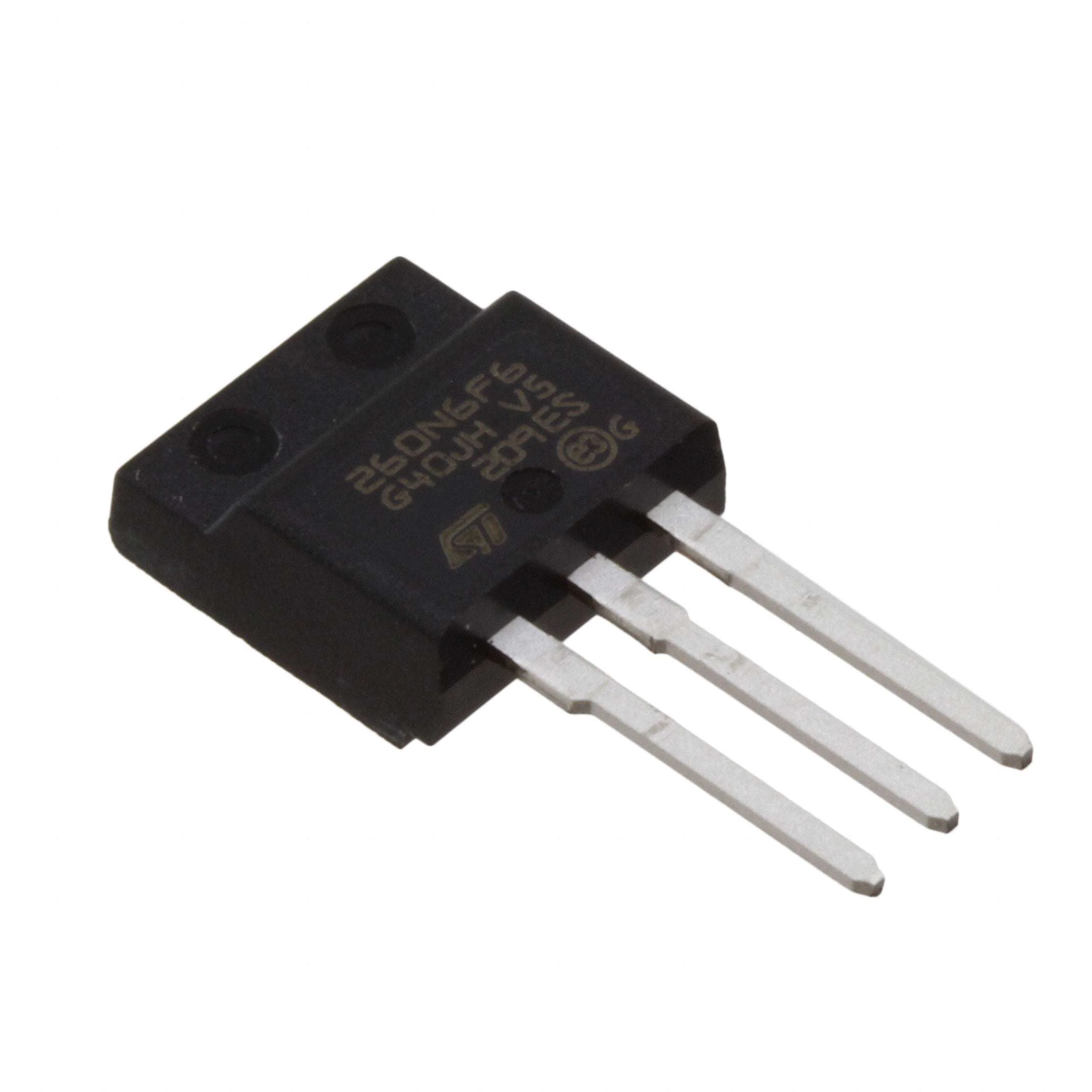

STFI260N6F6MOSFET N-CH 60V 80A I2PAKFP |
297 | - |
|
Datasheet | DeepGATE™, STripFET™ VI | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 3mOhm @ 60A, 10V | 4V @ 250µA | 183 nC @ 10 V | ±20V | 11400 pF @ 25 V | - | 41.7W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAKFP (TO-281) |
|
|
STI40N65M2MOSFET N-CH 650V 32A I2PAK |
811 | - |
|
Datasheet | MDmesh™ M2 | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 99mOhm @ 16A, 10V | 4V @ 250µA | 56.5 nC @ 10 V | ±25V | 2355 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | - | - | Through Hole | I2PAK |
|
STL24NM60NMOSFET N-CH 600V 16A POWERFLAT |
6,957 | - |
|
Datasheet | MDmesh™ II | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.3A (Ta), 16A (Tc) | 10V | 215mOhm @ 8A, 10V | 5V @ 250µA | 46 nC @ 10 V | ±25V | 1400 pF @ 50 V | - | 3W (Ta), 125W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
|
|
STI270N4F3MOSFET N-CH 40V 160A I2PAK |
883 | - |
|
Datasheet | STripFET™ III | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 2.6mOhm @ 80A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 7400 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | I2PAK |
|
|
STFI130N10F3MOSFET N-CH 100V 46A I2PAKFP |
1,500 | - |
|
Datasheet | STripFET™ III | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 46A (Tc) | 10V | 9.6mOhm @ 23A, 10V | 4V @ 250µA | 57 nC @ 10 V | ±20V | 3305 pF @ 25 V | - | 35W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-281 (I2PAKFP) |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
