FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

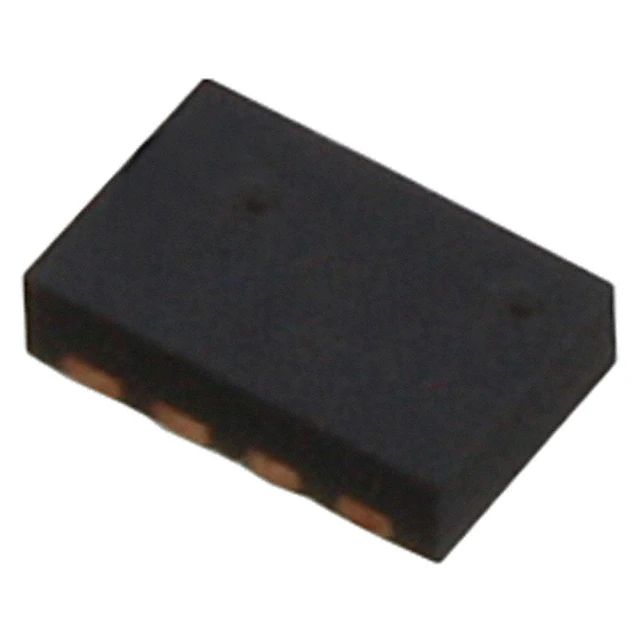

SI5476DU-T1-GE3MOSFET N-CH 60V 12A CHIPFET |
5,739 | - |
|
Datasheet | TrenchFET® | PowerPAK® ChipFET™ Single | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Tc) | 4.5V, 10V | 34mOhm @ 4.6A, 10V | 3V @ 250µA | 32 nC @ 10 V | ±20V | 1100 pF @ 30 V | - | 3.1W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® ChipFET™ Single |
|
SQD50N04-5M6L_GE3MOSFET N-CH 40V 50A TO252AA |
4,111 | - |
|
Datasheet | TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 5.6mOhm @ 20A, 10V | 2.5V @ 250µA | 75 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
SQJA76EP-T1_BE3N-CHANNEL 40-V (D-S) 175C MOSFET |
2,992 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 2.4mOhm @ 10A, 10V | 3.5V @ 250µA | 100 nC @ 10 V | ±20V | 5250 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SIRC16DP-T1-RE3N-CHANNEL 25-V (D-S) MOSFET W/SC |
5,880 | - |
|
Datasheet | - | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 57A (Ta), 60A (Tc) | 4.5V, 10V | 0.96mOhm @ 15A, 10V | 2.4V @ 250µA | 105 nC @ 10 V | +20V, -16V | 5150 pF @ 10 V | Schottky Diode (Body) | 5W (Ta), 54.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SQ4850EY-T1_GE3MOSFET N-CH 60V 12A 8SO |
21,818 | - |
|
Datasheet | TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Tc) | 4.5V, 10V | 22mOhm @ 6A, 5V | 2.5V @ 250µA | 30 nC @ 10 V | ±20V | 1250 pF @ 25 V | - | 6.8W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
SIJ450DP-T1-GE3N-CHANNEL 45 V (D-S) MOSFET POWE |
6,000 | - |
|
Datasheet | TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 36A (Ta), 113A (Tc) | 4.5V, 10V | 1.9mOhm @ 10A, 10V | 2.3V @ 250µA | 114 nC @ 10 V | +20V, -16V | 5920 pF @ 20 V | - | 4.8W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
IRFD9014PBFMOSFET P-CH 60V 1.1A 4DIP |
5,876 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.1A (Ta) | 10V | 500mOhm @ 660mA, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | - | - | Through Hole | 4-HVMDIP |
|
|
IRFD210PBFMOSFET N-CH 200V 600MA 4DIP |
4,751 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 600mA (Ta) | 10V | 1.5Ohm @ 360mA, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | 4-HVMDIP |
|
|
IRFD123PBFMOSFET N-CH 100V 1.3A 4DIP |
3,184 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.3A (Ta) | 10V | 270mOhm @ 780mA, 10V | 4V @ 250µA | 16 nC @ 10 V | ±20V | 360 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | - | - | Through Hole | 4-HVMDIP |
|
IRFU214PBFMOSFET N-CH 250V 2.2A TO251AA |
2,855 | - |
|
Datasheet | - | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 2.2A (Tc) | 10V | 2Ohm @ 1.3A, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
