FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIHD5N50D-GE3MOSFET N-CH 500V 5.3A TO252AA |
6,849 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5.3A (Tc) | 10V | 1.5Ohm @ 2.5A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±30V | 325 pF @ 100 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
SI2303BDS-T1-E3MOSFET P-CH 30V 1.49A SOT23-3 |
5,812 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.49A (Ta) | 4.5V, 10V | 200mOhm @ 1.7A, 10V | 3V @ 250µA | 10 nC @ 10 V | ±20V | 180 pF @ 15 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
SI3441BDV-T1-E3MOSFET P-CH 20V 2.45A 6TSOP |
3,475 | - |
|
Datasheet | TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.45A (Ta) | 2.5V, 4.5V | 90mOhm @ 3.3A, 4.5V | 850mV @ 250µA | 8 nC @ 4.5 V | ±8V | - | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
|
TN0200K-T1-E3MOSFET N-CH 20V SOT23-3 |
5,938 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 730mA (Ta) | - | 400mOhm @ 600mA, 4.5V | 1V @ 50µA | 2 nC @ 4.5 V | - | - | - | - | - | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
TN0201K-T1-E3MOSFET N-CH 20V 420MA SOT23-3 |
9,266 | - |
|
Datasheet | TrenchFET® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 420mA (Ta) | 4.5V, 10V | 1Ohm @ 300mA, 10V | 3V @ 250µA | 1.5 nC @ 10 V | ±20V | - | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
SI1304BDL-T1-GE3MOSFET N-CH 30V 900MA SC70-3 |
2,517 | - |
|
Datasheet | TrenchFET® | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 900mA (Tc) | 2.5V, 4.5V | 270mOhm @ 900mA, 4.5V | 1.3V @ 250µA | 2.7 nC @ 4.5 V | ±12V | 100 pF @ 15 V | - | 340mW (Ta), 370mW (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70-3 |
|
SI4778DY-T1-GE3MOSFET N-CH 25V 8A 8SO |
6,787 | - |
|
Datasheet | TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 8A (Tc) | 4.5V, 10V | 23mOhm @ 7A, 10V | 2.2V @ 250µA | 18 nC @ 10 V | ±16V | 680 pF @ 13 V | - | 2.4W (Ta), 5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

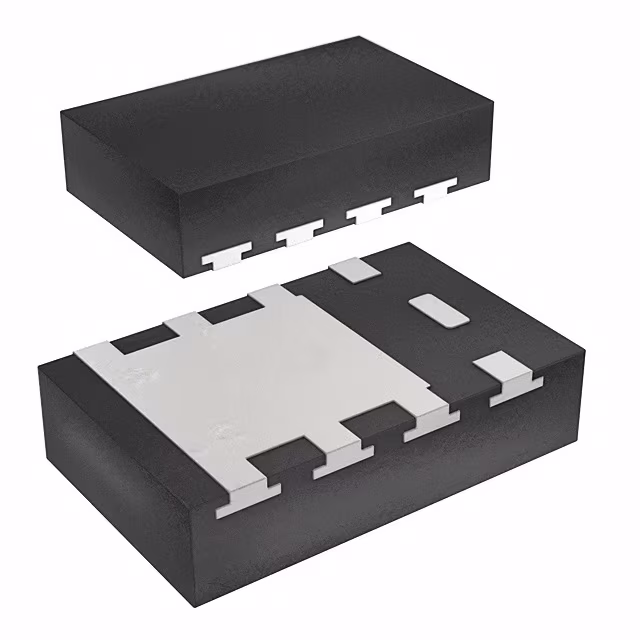

SI5415AEDU-T1-GE3MOSFET P-CH 20V 25A PPAK |
8,817 | - |
|
Datasheet | TrenchFET® | PowerPAK® ChipFET™ Single | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 25A (Tc) | 1.8V, 4.5V | 9.6mOhm @ 10A, 4.5V | 1V @ 250µA | 120 nC @ 8 V | ±8V | 4300 pF @ 10 V | - | 3.1W (Ta), 31W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® ChipFet Single |
|
SIHFR430ATR-GE3MOSFET N-CH 500V 5A DPAK |
9,739 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 1.7Ohm @ 3A, 10V | 4.5V @ 250µA | 24 nC @ 10 V | ±30V | 490 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
SI5473DC-T1-E3MOSFET P-CH 12V 5.9A 1206-8 |
7,494 | - |
|
Datasheet | TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 5.9A (Ta) | 1.8V, 4.5V | 27mOhm @ 5.9A, 4.5V | 1V @ 250µA | 32 nC @ 4.5 V | ±8V | - | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
