FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIR412DP-T1-GE3MOSFET N-CH 25V 20A PPAK SO-8 |
5,521 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 20A (Tc) | 4.5V, 10V | 12mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 600 pF @ 10 V | - | 3.9W (Ta), 15.6W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
IRLD024PBFMOSFET N-CH 60V 2.5A 4DIP |
9,065 | - |
|
Datasheet | - | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.5A (Ta) | 4V, 5V | 100mOhm @ 1.5A, 5V | 2V @ 250µA | 18 nC @ 5 V | ±10V | 870 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | - | - | Through Hole | 4-HVMDIP |
|
SI2308DS-T1-E3MOSFET N-CH 60V 2A SOT23-3 |
5,199 | - |
|
Datasheet | TrenchFET® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 4.5V, 10V | 160mOhm @ 2A, 10V | 3V @ 250µA | 10 nC @ 10 V | ±20V | 240 pF @ 25 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
SI2309DS-T1-E3MOSFET P-CH 60V 1.25A SOT23-3 |
9,899 | - |
|
Datasheet | TrenchFET® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.25A (Ta) | 4.5V, 10V | 340mOhm @ 1.25A, 10V | 1V @ 250µA (Min) | 12 nC @ 10 V | ±20V | - | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|

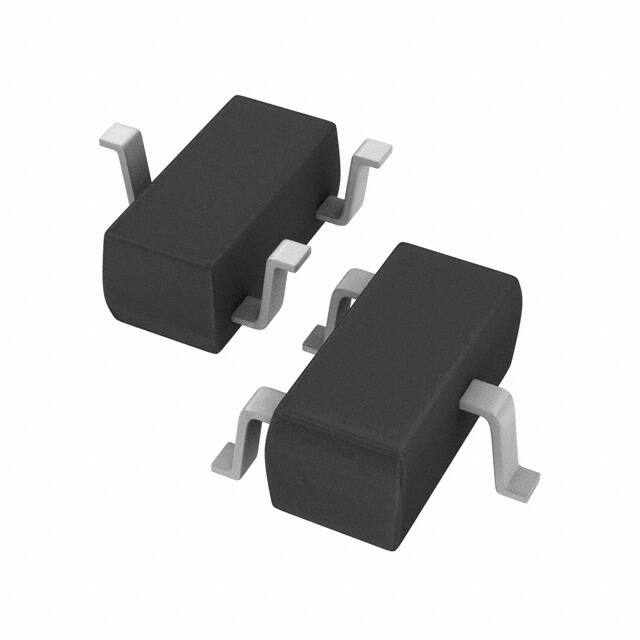

SI1046X-T1-GE3MOSFET N-CH 20V SC89-3 |
7,896 | - |
|
Datasheet | TrenchFET® | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 606mA ( Ta) | 1.8V, 4.5V | 420mOhm @ 606mA, 4.5V | 950mV @ 250µA | 1.49 nC @ 5 V | ±8V | 66 pF @ 10 V | - | 250mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-89-3 |
|
|
2N7002-E3MOSFET N-CH 60V 115MA TO236 |
2,452 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-236 |
|
SQ1470EH-T1-GE3MOSFET N-CH 30V 2.8A SC70 |
7,761 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Digi-Reel® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.8A (Tc) | - | 65mOhm @ 3.8A, 4.5V | 1.6V @ 250µA | 6.6 nC @ 4.5 V | - | 610 pF @ 25 V | - | - | - | - | - | Surface Mount | SC-70-6 |
|
SIHD7N60E-E3MOSFET N-CH 600V 7A DPAK |
9,975 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 4V @ 250µA | 40 nC @ 10 V | ±30V | 680 pF @ 100 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
IRF9Z14LPBFMOSFET P-CH 60V 6.7A I2PAK |
5,845 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 6.7A (Tc) | 10V | 500mOhm @ 4A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 3.7W (Ta), 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | I2PAK |
|
|
IRFBC30ALPBFMOSFET N-CH 600V 3.6A I2PAK |
9,553 | - |
|
Datasheet | - | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.6A (Tc) | 10V | 2.2Ohm @ 2.2A, 10V | 4.5V @ 250µA | 23 nC @ 10 V | ±30V | 510 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | I2PAK |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
