FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFH18N90PMOSFET N-CH 900V 18A TO247AD |
840 | - |
|
Datasheet | HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 18A (Tc) | 10V | 600mOhm @ 500mA, 10V | 6.5V @ 1mA | 97 nC @ 10 V | ±30V | 5230 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
IXFT340N075T2MOSFET N-CH 75V 340A TO268 |
459 | - |
|
Datasheet | HiPerFET™, TrenchT2™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 340A (Tc) | 10V | 3.2mOhm @ 100A, 10V | 4V @ 3mA | 300 nC @ 10 V | ±20V | 19000 pF @ 25 V | - | 935W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-268AA |
|
|
IXFH120N20PMOSFET N-CH 200V 120A TO247AD |
302 | - |
|
Datasheet | HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 120A (Tc) | 10V | 22mOhm @ 500mA, 10V | 5V @ 4mA | 152 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 714W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
LSIC1MO120E0160SICFET N-CH 1200V 22A TO247-3 |
2,289 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 22A (Tc) | 20V | 200mOhm @ 10A, 20V | 4V @ 5mA | 57 nC @ 20 V | +22V, -6V | 870 pF @ 800 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
IXFK44N50PMOSFET N-CH 500V 44A TO264AA |
260 | - |
|
Datasheet | HiPerFET™, Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 140mOhm @ 22A, 10V | 5V @ 4mA | 98 nC @ 10 V | ±30V | 5440 pF @ 25 V | - | 658W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA (IXFK) |
|
IXTP94N20X4MOSFET 200V 94A N-CH ULTRA TO220 |
163 | - |
|
Datasheet | Ultra X4 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 94A (Tc) | 10V | 10.6mOhm @ 47A, 10V | 4.5V @ 250µA | 77 nC @ 10 V | ±20V | 5050 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
IXFH180N20X3MOSFET N-CH 200V 180A TO247 |
542 | - |
|
Datasheet | HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 180A (Tc) | 10V | 7.5mOhm @ 90A, 10V | 4.5V @ 4mA | 154 nC @ 10 V | ±20V | 10300 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXTK150N15PMOSFET N-CH 150V 150A TO264 |
305 | - |
|
Datasheet | Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 150A (Tc) | 10V | 13mOhm @ 500mA, 10V | 5V @ 250µA | 190 nC @ 10 V | ±20V | 5800 pF @ 25 V | - | 714W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 (IXTK) |
|
|
IXFH50N85XMOSFET N-CH 850V 50A TO247 |
1,058 | - |
|
Datasheet | HiPerFET™, Ultra X | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 50A (Tc) | 10V | 105mOhm @ 500mA, 10V | 5.5V @ 4mA | 152 nC @ 10 V | ±30V | 4480 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|

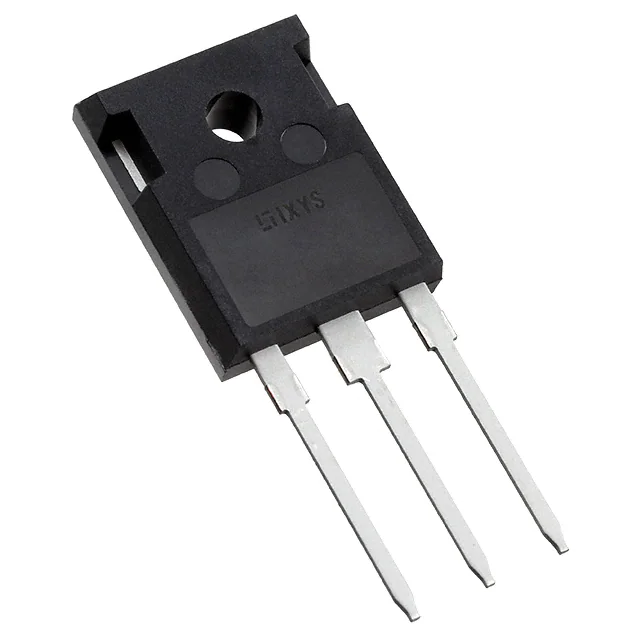

IXFH120N25X3MOSFET N-CH 250V 120A TO247 |
165 | - |
|
Datasheet | HiPerFET™, Ultra X3 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 120A (Tc) | 10V | 12mOhm @ 60A, 10V | 4.5V @ 4mA | 122 nC @ 10 V | ±20V | 7870 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
