FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

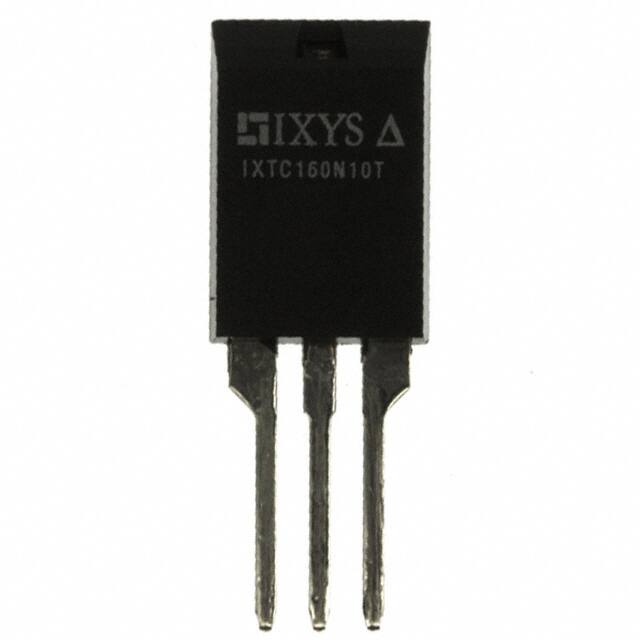

IXTC160N10TMOSFET N-CH 100V 83A ISOPLUS220 |
4,273 | - |
|
Datasheet | TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 83A (Tc) | 10V | 7.5mOhm @ 25A, 10V | 4.5V @ 250µA | 132 nC @ 10 V | ±20V | 6600 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTA3N110-TRLMOSFET N-CH 1100V 3A TO263 |
6,257 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1100 V | 3A (Tc) | 10V | 4Ohm @ 1.5A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IXFQ14N80PMOSFET N-CH 800V 14A TO3P |
5,319 | - |
|
Datasheet | HiPerFET™, Polar | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 720mOhm @ 500mA, 10V | 5.5V @ 4mA | 61 nC @ 10 V | ±30V | 3900 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
IXTA230N04T4MOSFET N-CH 40V 230A TO263AA |
8,307 | - |
|
Datasheet | Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 230A (Tc) | 10V | 2.9mOhm @ 115A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±15V | 7400 pF @ 25 V | - | 340W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTT1N100MOSFET N-CH 1000V 1.5A TO268 |
5,761 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1.5A (Tc) | 10V | 11Ohm @ 1A, 10V | 4.5V @ 25µA | 23 nC @ 10 V | ±20V | 480 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
|
IXTQ150N06PMOSFET N-CH 60V 150A TO3P |
3,159 | - |
|
Datasheet | Polar | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 150A (Tc) | 10V | 10mOhm @ 75A, 10V | 5V @ 250µA | 118 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3P |
|
|
IXFA24N60XMOSFET N-CH 600V 24A TO263AA |
6,211 | - |
|
Datasheet | HiPerFET™, Ultra X | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 175mOhm @ 12A, 10V | 4.5V @ 2.5mA | 47 nC @ 10 V | ±30V | 1910 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
IXKC15N60C5MOSFET N-CH 600V 15A ISOPLUS220 |
6,796 | - |
|
Datasheet | CoolMOS™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 165mOhm @ 12A, 10V | 3.5V @ 900µA | 52 nC @ 10 V | ±20V | 2000 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXFH220N06T3MOSFET N-CH 60V 220A TO247 |
2,822 | - |
|
Datasheet | HiperFET™, TrenchT3™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 4mOhm @ 100A, 10V | 4V @ 250µA | 136 nC @ 10 V | ±20V | 8500 pF @ 25 V | - | 440W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
|
IXFC12N80PMOSFET N-CH 800V 7A ISOPLUS220 |
2,194 | - |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 930mOhm @ 6A, 10V | 5.5V @ 2.5mA | 51 nC @ 10 V | ±30V | 2800 pF @ 25 V | - | 120W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
