FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFP270N06T3MOSFET N-CH 60V 270A TO220AB |
9,500 | - |
|
Datasheet | HiperFET™, TrenchT3™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 270A (Tc) | 10V | 3.1mOhm @ 100A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 12600 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXFC20N80PMOSFET N-CH 800V 11A ISOPLUS220 |
2,539 | - |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Tc) | 10V | 500mOhm @ 10A, 10V | 5V @ 4mA | 85 nC @ 10 V | ±30V | 4680 pF @ 25 V | - | 166W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
.jpg "IXTH460P2")
|
IXTH460P2MOSFET N-CH 500V 24A TO247 |
2,926 | - |
|
Datasheet | PolarP2™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 270mOhm @ 12A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±30V | 2890 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXTA2N100MOSFET N-CH 1000V 2A TO263 |
4,843 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2A (Tc) | 10V | 7Ohm @ 1A, 10V | 4.5V @ 250µA | 18 nC @ 10 V | ±20V | 825 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|

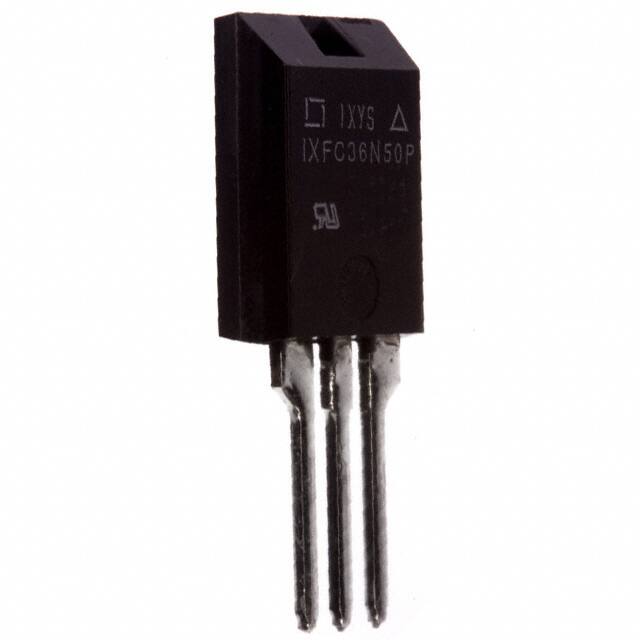

IXFC36N50PMOSFET N-CH 500V 19A ISOPLUS220 |
2,940 | - |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 19A (Tc) | 10V | 190mOhm @ 18A, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXTH5N100AMOSFET N-CH 1000V 5A TO247 |
8,433 | - |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 5A (Tc) | 10V | 2Ohm @ 2.5A, 10V | 4.5V @ 250µA | 130 nC @ 10 V | ±20V | 2600 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXKP24N60C5MOSFET N-CH 600V 24A TO220AB |
7,902 | - |
|
Datasheet | CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 165mOhm @ 12A, 10V | 3.5V @ 790µA | 52 nC @ 10 V | ±20V | 2000 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXFT20N80PMOSFET N-CH 800V 20A TO268 |
3,856 | - |
|
Datasheet | HiPerFET™, Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 20A (Tc) | 10V | 520mOhm @ 10A, 10V | 5V @ 4mA | 86 nC @ 10 V | ±30V | 4685 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
IXFH42N50P2MOSFET N-CH 500V 42A TO247AD |
6,187 | - |
|
Datasheet | HiPerFET™, PolarP2™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 42A (Tc) | 10V | 145mOhm @ 500mA, 10V | 4.5V @ 4mA | 92 nC @ 10 V | ±30V | 5300 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXTH88N15MOSFET N-CH 150V 88A TO247 |
4,348 | - |
|
Datasheet | - | TO-247-3 | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 88A (Tc) | 10V | 22mOhm @ 44A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
