FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFN210N30P3MOSFET N-CH 300V 192A SOT227B |
300 | - |
|
Datasheet | HiPerFET™, Polar3™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 192A (Tc) | 10V | 14.5mOhm @ 105A, 10V | 5V @ 8mA | 268 nC @ 10 V | ±20V | 16200 pF @ 25 V | - | 1500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
IXKK85N60CMOSFET N-CH 600V 85A TO264A |
138 | - |
|
Datasheet | CoolMOS™ | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 85A (Tc) | 10V | 36mOhm @ 55A, 10V | 4V @ 4mA | 650 nC @ 10 V | ±20V | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA |
.jpg "IXTX8N150L")
|
IXTX8N150LMOSFET N-CH 1500V 8A PLUS247-3 |
256 | - |
|
Datasheet | Linear | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1500 V | 8A (Tc) | 20V | 3.6Ohm @ 4A, 20V | 8V @ 250µA | 250 nC @ 15 V | ±30V | 8000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
IXFN80N50Q3MOSFET N-CH 500V 63A SOT227B |
140 | - |
|
Datasheet | HiPerFET™, Q3 Class | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 63A (Tc) | 10V | 65mOhm @ 40A, 10V | 6.5V @ 8mA | 200 nC @ 10 V | ±30V | 10000 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
IXTF1R4N450MOSFET N-CH 4500V 1.4A I4PAC |
41 | - |
|
Datasheet | - | i4-Pac™-5 (3 Leads) | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 4500 V | 1.4A (Tc) | 10V | 40Ohm @ 50mA, 10V | 6V @ 250µA | 88 nC @ 10 V | ±20V | 3300 pF @ 25 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXTP24N65X2MMOSFET N-CH 650V 24A TO220 |
295 | - |
|
Datasheet | Ultra X2 | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 145mOhm @ 12A, 10V | 5V @ 250µA | 36 nC @ 10 V | ±30V | 2060 pF @ 25 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|

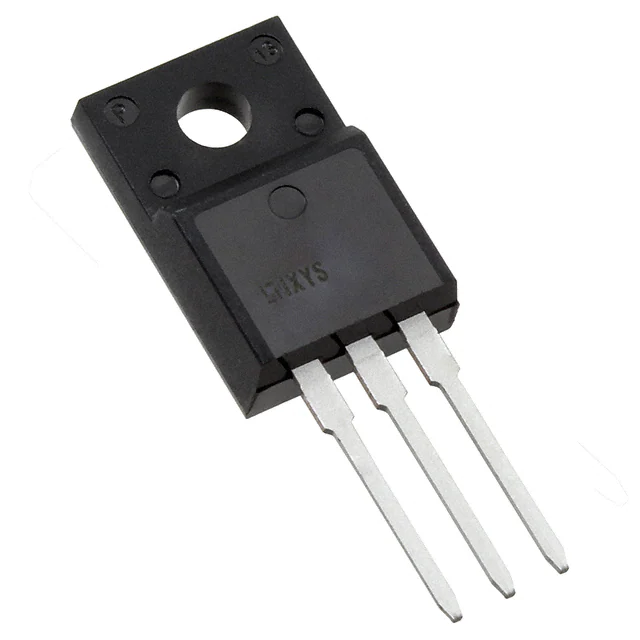

IXFP30N25X3MMOSFET N-CH 250V 30A TO220 |
262 | - |
|
Datasheet | HiPerFET™, Ultra X3 | TO-220-3 Full Pack, Isolated Tab | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 30A (Tc) | 10V | 60mOhm @ 15A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1450 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Isolated Tab |
|
MXB12R600DPHFCMOSFET N-CH 600V 15A |
243 | - |
|
Datasheet | - | ISOPLUSi5-PAK™ | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 13A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
IXFN55N120SKSIC AND MULTICHIP DISCRETE |
182 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 54A (Tc) | 15V | 42mOhm @ 40A, 15V | 3.6V @ 12mA | 107 nC @ 15 V | +15V, -4V | 3360 pF @ 1000 V | - | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
IXFH270N06T3MOSFET N-CH 60V 270A TO247 |
495 | - |
|
Datasheet | HiperFET™, TrenchT3™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 270A (Tc) | 10V | 3.1mOhm @ 100A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 12600 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
