FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXUV170N075SMOSFET N-CH 75V 175A PLUS-220SMD |
3,808 | - |
|
Datasheet | - | PLUS-220SMD | Box | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 175A (Tc) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | PLUS-220SMD |
|
IXUN350N10MOSFET N-CH 100V 350A SOT-227B |
5,064 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 350A (Tc) | 10V | 2.5mOhm @ 175A, 10V | 4V @ 3mA | 640 nC @ 10 V | ±20V | 27000 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
IXFV12N120PMOSFET N-CH 1200V 12A PLUS220 |
6,739 | - |
|
Datasheet | HiPerFET™, PolarP2™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 1.35Ohm @ 500mA, 10V | 6.5V @ 1mA | 103 nC @ 10 V | ±30V | 5400 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV12N120PSMOSFET N-CH 1200V 12A PLUS220SMD |
7,720 | - |
|
Datasheet | HiPerFET™, PolarP2™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 1.35Ohm @ 500mA, 10V | 6.5V @ 1mA | 103 nC @ 10 V | ±30V | 5400 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
|
IXFV15N100PMOSFET N-CH 1000V 15A PLUS220 |
8,383 | - |
|
Datasheet | HiPerFET™, PolarP2™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 15A (Tc) | 10V | 760mOhm @ 500mA, 10V | 6.5V @ 1mA | 97 nC @ 10 V | ±30V | 5140 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV15N100PSMOSFET N-CH 1000V 15A PLUS220SMD |
8,755 | - |
|
Datasheet | HiPerFET™, PolarP2™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 15A (Tc) | 10V | 760mOhm @ 500mA, 10V | 6.5V @ 1mA | 97 nC @ 10 V | ±30V | 5140 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
.jpg "IXKH20N60C5")
|
IXKH20N60C5MOSFET N-CH 600V 20A TO247AD |
8,628 | - |
|
Datasheet | CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 200mOhm @ 10A, 10V | 3.5V @ 1.1mA | 45 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
IXKP13N60C5MOSFET N-CH 600V 13A TO220AB |
6,873 | - |
|
Datasheet | CoolMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 300mOhm @ 6.6A, 10V | 3.5V @ 440µA | 30 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXKP20N60C5MMOSFET N-CH 600V 7.6A TO220ABFP |
6,484 | - |
|
Datasheet | CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.6A (Tc) | 10V | 200mOhm @ 10A, 10V | 3.5V @ 1.1mA | 30 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220ABFP |
|

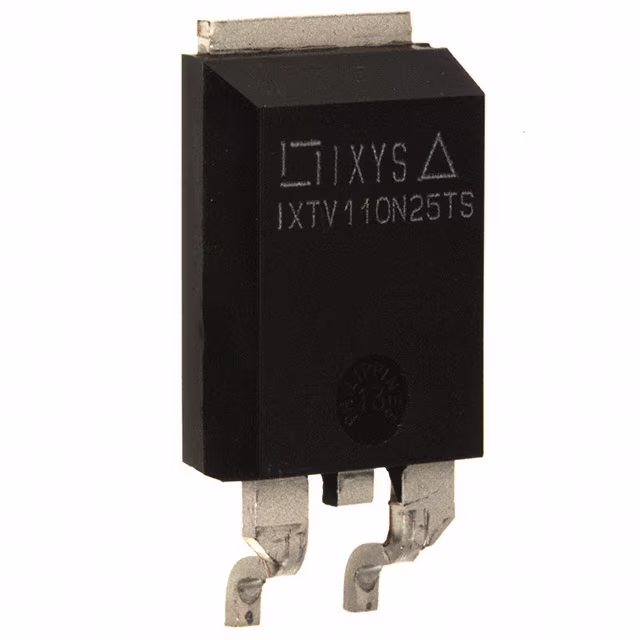

IXTV110N25TSMOSFET N-CH 250V 110A PLUS220SMD |
9,800 | - |
|
Datasheet | - | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 110A (Tc) | 10V | 24mOhm @ 55A, 10V | 4.5V @ 1mA | 157 nC @ 10 V | ±20V | 9400 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
