FETs, MOSFETs
Browse available FETs, MOSFETs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR1N60APBFMOSFET N-CH 600V 1.4A DPAK |
3,041 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.4A (Tc) | 10V | 7Ohm @ 840mA, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 229 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
FDPF18N20FTMOSFET N-CH 200V 18A TO220F |
1,950 | - |
|
Datasheet | UniFET™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 18A (Tc) | 10V | 140mOhm @ 9A, 10V | 5V @ 250µA | 26 nC @ 10 V | ±30V | 1180 pF @ 25 V | - | 41W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
IRFU9214PBFMOSFET P-CH 250V 2.7A TO251AA |
1,395 | - |
|
Datasheet | - | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 2.7A (Tc) | 10V | 3Ohm @ 1.7A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 220 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
IRFZ20PBF-BE3MOSFET N-CH 50V 15A TO220AB |
459 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 15A (Tc) | - | 100mOhm @ 10A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SISS32ADN-T1-GE3MOSFET N-CH 80V 17.4A/63A PPAK |
12,776 | - |
|
Datasheet | TrenchFET® Gen IV | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 17.4A (Ta), 63A (Tc) | 7.5V, 10V | 7.3mOhm @ 10A, 10V | 3.6V @ 250µA | 36 nC @ 10 V | ±20V | 1520 pF @ 40 V | - | 5W (Ta), 65.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
|
FCD4N60TMMOSFET N-CH 600V 3.9A DPAK |
10,172 | - |
|
Datasheet | SuperFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.9A (Tc) | 10V | 1.2Ohm @ 2A, 10V | 5V @ 250µA | 16.6 nC @ 10 V | ±30V | 540 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
BUK768R1-40E,118MOSFET N-CH 40V 75A D2PAK |
4,672 | - |
|
Datasheet | TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 7.2mOhm @ 20A, 10V | 4V @ 1mA | 24 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
IPA95R1K2P7XKSA1MOSFET N-CH 950V 6A TO220 |
484 | - |
|
Datasheet | CoolMOS™ P7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 6A (Tc) | 10V | 1.2Ohm @ 2.7A, 10V | 3.5V @ 140µA | 15 nC @ 10 V | ±20V | 478 pF @ 400 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
TPH8R008NH,L1QMOSFET N-CH 80V 34A 8SOP |
8,924 | - |
|
Datasheet | U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 34A (Tc) | 10V | 8mOhm @ 17A, 10V | 4V @ 500µA | 35 nC @ 10 V | ±20V | 3000 pF @ 40 V | - | 1.6W (Ta), 61W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
IRFB7537PBFMOSFET N-CH 60V 173A TO220AB |
3,801 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 173A (Tc) | 6V, 10V | 3.3mOhm @ 100A, 10V | 3.7V @ 150µA | 210 nC @ 10 V | ±20V | 7020 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|

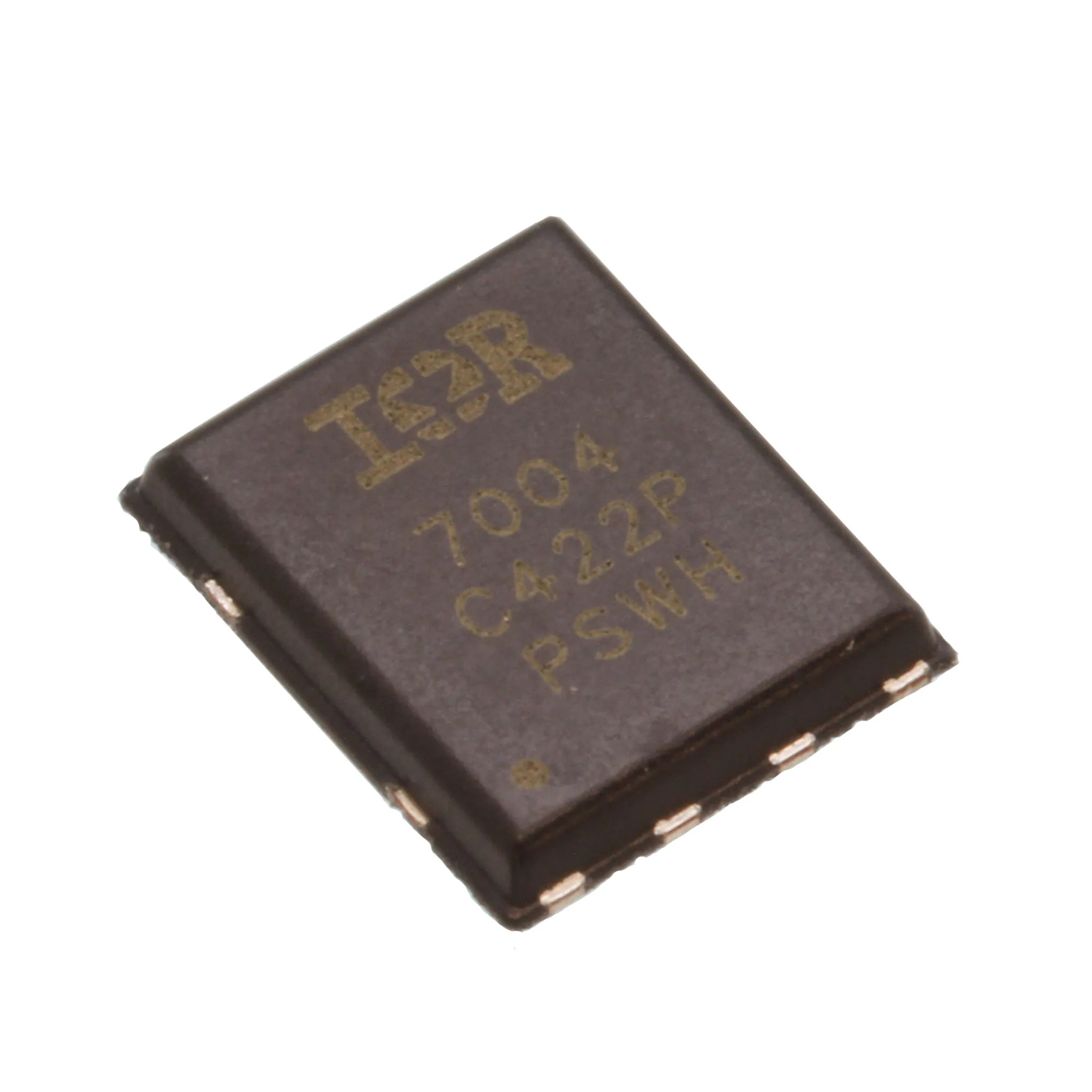

IRFH7004TRPBFMOSFET N-CH 40V 100A 8PQFN |
3,690 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | 8-VQFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 6V, 10V | 1.4mOhm @ 100A, 10V | 3.9V @ 150µA | 194 nC @ 10 V | ±20V | 6419 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
IRFBE20PBFMOSFET N-CH 800V 1.8A TO220AB |
1,480 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.8A (Tc) | 10V | 6.5Ohm @ 1.1A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 530 pF @ 25 V | - | 54W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
;;2.jpg "STD11N60DM2")
|
STD11N60DM2MOSFET N-CH 650V 10A DPAK |
1,354 | - |
|
Datasheet | MDmesh™ DM2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 420mOhm @ 5A, 10V | 5V @ 250µA | 16.5 nC @ 10 V | ±25V | 614 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
SQJ488EP-T1_BE3MOSFET N-CH 100V 42A PPAK SO-8 |
5,700 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 4.5V, 10V | 21mOhm @ 7.1A, 10V | 2.5V @ 250µA | 27 nC @ 10 V | ±20V | 978 pF @ 50 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
SQJ488EP-T1_GE3MOSFET N-CH 100V 42A PPAK SO-8 |
3,878 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 4.5V, 10V | 21mOhm @ 7.4A, 10V | 2.5V @ 250µA | 27 nC @ 10 V | ±20V | 979 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SQJ403EP-T1_GE3MOSFET P-CH 30V 30A PPAK SO-8 |
3,662 | - |
|
Datasheet | TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 8.5mOhm @ 10A, 10V | 2.5V @ 250µA | 109 nC @ 10 V | ±20V | 4500 pF @ 15 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SQJ182EP-T1_GE3AUTOMOTIVE N-CHANNEL 80 V (D-S) |
3,000 | - |
|
Datasheet | TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 210A (Tc) | 10V | 5mOhm @ 15A, 10V | 3.5V @ 250µA | 96 nC @ 10 V | ±20V | 5392 pF @ 25 V | - | 395W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SQR70090ELR_GE3MOSFET N-CH 100V 86A DPAK |
1,788 | - |
|
Datasheet | TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 86A (Tc) | 4.5V, 10V | 8.7mOhm @ 25A, 10V | 2.5V @ 250µA | 65 nC @ 10 V | ±20V | 3500 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
SUD70090E-GE3MOSFET N-CH 100V 50A TO252 |
1,418 | - |
|
Datasheet | ThunderFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 7.5V, 10V | 8.9mOhm @ 20A, 10V | 4V @ 250µA | 50 nC @ 10 V | ±20V | 1950 pF @ 50 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
RSS100N03HZGTBNCH 30V 10A AUTOMOTIVE POWER MOS |
904 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 13.3mOhm @ 10A, 10V | 2.5V @ 1mA | 20 nC @ 5 V | ±20V | 1070 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
