FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPC2619ENGRTTRANS GAN 80V .0033OHM 6LGA |
9,667 | - |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 100 V | 29A (Ta) | 5V | 3.3mOhm @ 16A, 5V | 2.5V @ 5.5mA | 8.3 nC @ 5 V | +6V, -4V | 1180 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|

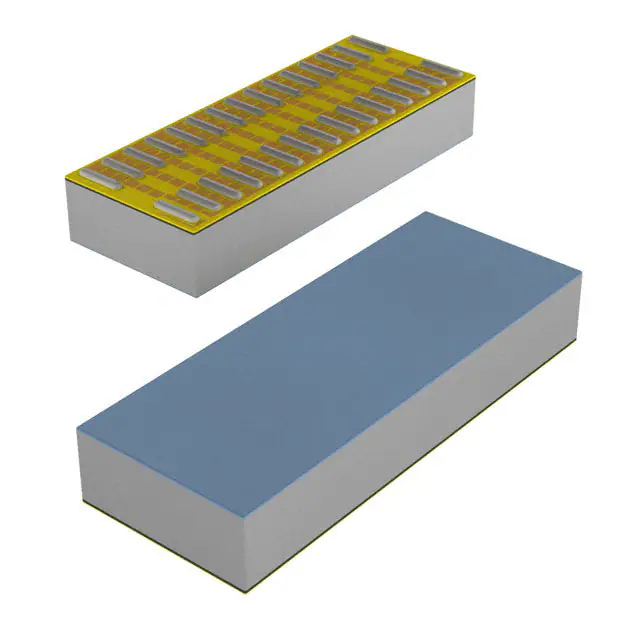

EPC2021ENGRTRANS GAN 80V 60A BUMPED DIE |
9,924 | - |
|
Datasheet | eGaN® | Die | Cut Tape (CT) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 80 V | 60A (Ta) | 5V | 2.5mOhm @ 29A, 5V | 2.5V @ 14mA | 15 nC @ 5 V | +6V, -4V | 1700 pF @ 40 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
EPC2034GANFET N-CH 200V 48A DIE |
6,488 | - |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 200 V | 48A (Ta) | 5V | 10mOhm @ 20A, 5V | 2.5V @ 7mA | 8.8 nC @ 5 V | +6V, -4V | 950 pF @ 100 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
EPC2302ENGRTTRANS GAN 100V DIE .0018OHM |
2,597 | - |
|
Datasheet | eGaN® | 7-PowerWQFN | Tape & Reel (TR) | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 100 V | 101A (Ta) | 5V | 1.8mOhm @ 50A, 5V | 2.5V @ 14mA | 23 nC @ 5 V | +6V, -4V | 3200 pF @ 50 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 7-QFN (3x5) |
|
|
EPC2305ENGRTTRANS GAN 150V .003OHM 3X5MM QFN |
9,393 | - |
|
Datasheet | - | 7-PowerWQFN | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 150 V | 80A (Ta) | 5V | 2.2mOhm @ 30A, 5V | 2.5V @ 11mA | 21 nC @ 5 V | 6V | 2900 pF @ 75 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 7-QFN (3x5) |
|
EPC2001GANFET N-CH 100V 25A DIE OUTLINE |
3,682 | - |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 100 V | 25A (Ta) | 5V | 7mOhm @ 25A, 5V | 2.5V @ 5mA | 10 nC @ 5 V | +6V, -5V | 950 pF @ 50 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
EPC2010GANFET N-CH 200V 12A DIE |
9,605 | - |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 200 V | 12A (Ta) | 5V | 25mOhm @ 6A, 5V | 2.5V @ 3mA | 7.5 nC @ 5 V | +6V, -4V | 540 pF @ 100 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|

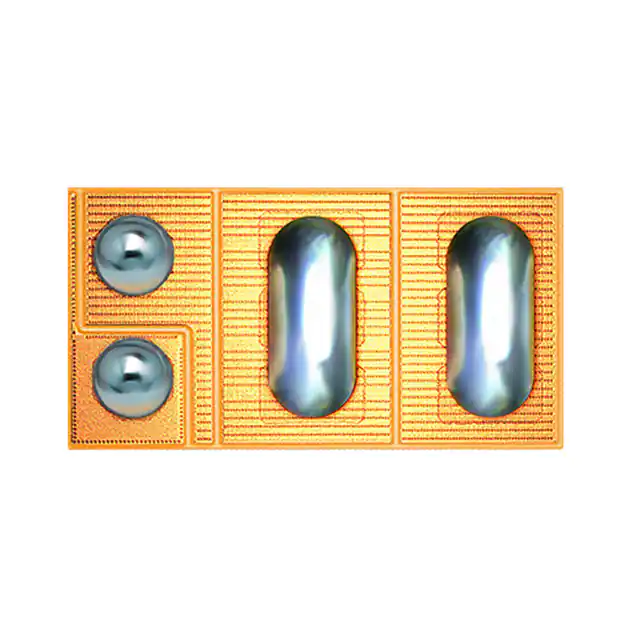

EPC2012GANFET N-CH 200V 3A DIE |
2,980 | - |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 200 V | 3A (Ta) | 5V | 100mOhm @ 3A, 5V | 2.5V @ 1mA | 1.8 nC @ 5 V | +6V, -5V | 145 pF @ 100 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
EPC2014GANFET N-CH 40V 10A DIE OUTLINE |
8,087 | - |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 40 V | 10A (Ta) | 5V | 16mOhm @ 5A, 5V | 2.5V @ 2mA | 2.8 nC @ 5 V | +6V, -5V | 325 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|

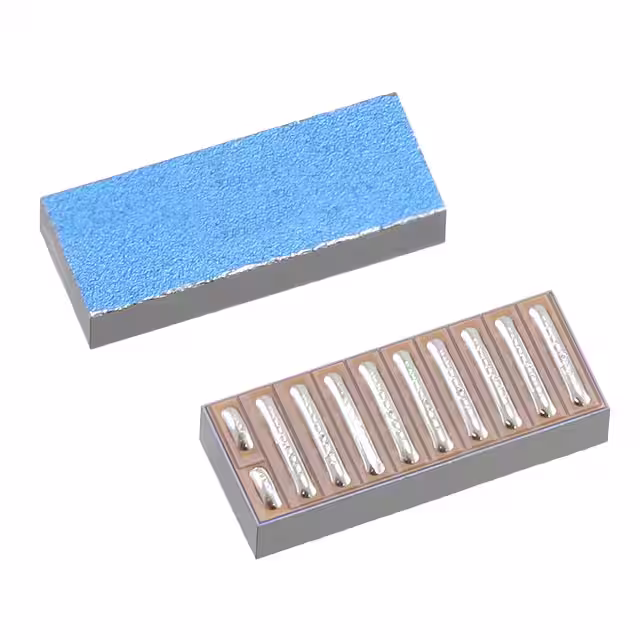

EPC2015GANFET N-CH 40V 33A DIE OUTLINE |
5,496 | - |
|
Datasheet | eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 40 V | 33A (Ta) | 5V | 4mOhm @ 33A, 5V | 2.5V @ 9mA | 11.6 nC @ 5 V | +6V, -5V | 1200 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
