Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F4205HLCAP FILM 2UF 3% 400VDC RADIAL |
617 | - |
|
Datasheet | Radial | 2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.630" W (28.00mm x 16.00mm) | 0.969" (24.60mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
MKP1F042206F00KSSDCAP FILM 2.2UF 10% 250VDC RAD |
1,707 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC233820105CAP FILM 1UF 20% 630VDC RADIAL |
960 | - |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

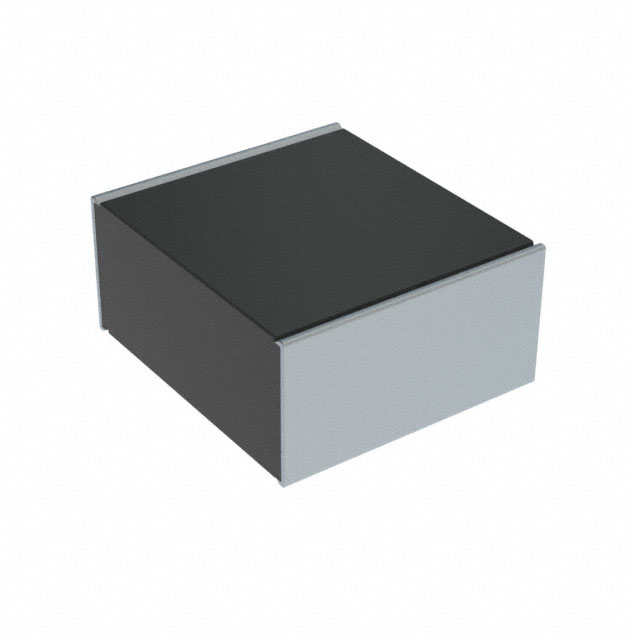

SMDTF04100YA00JT00CAP FILM 1UF 5% 160VAC 6054 |
811 | - |
|
Datasheet | 6054 (153137 Metric) | 1 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.287" (7.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
KP1830110631CAP FILM 100PF 1% 630VDC RADIAL |
1,512 | - |
|
Datasheet | Radial | 100 pF | ±1% | 250V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
WMF1D47K-FCAP FILM 4700PF 10% 100VDC AXIAL |
488 | - |
|
Datasheet | Axial | 4700 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.197" Dia x 0.563" L (5.00mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKT1813547065CAP FILM 4.7UF 10% 63VDC AXIAL |
330 | - |
|
Datasheet | Axial | 4.7 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.453" Dia x 1.043" L (11.50mm x 26.50mm) | - | PC Pins | - | General Purpose | - | - |
|

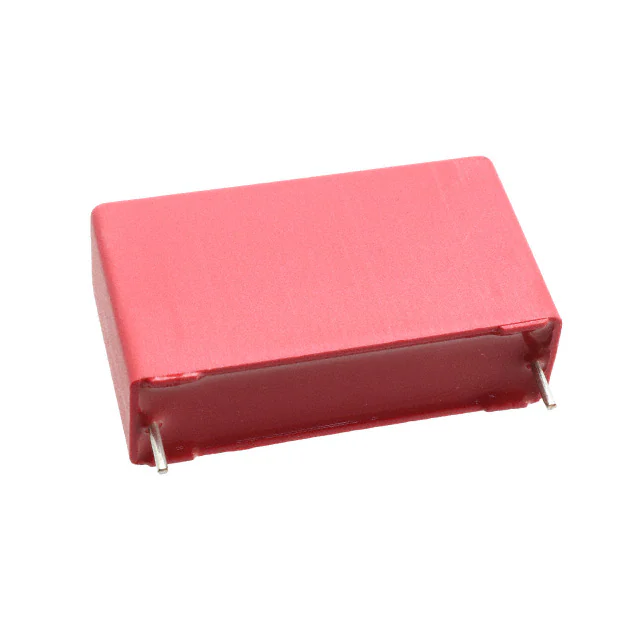

MKP1W031007C00KSSDCAP FILM 0.1UF 10% 3KVDC RADIAL |
171 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 700V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
BFC237520104CAP FILM 0.1UF 5% 1KVDC RADIAL |
1,459 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.413" W (30.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
715P47396LA3CAP FILM 0.047UF 10% 600VDC RAD |
997 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 1.031" (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
MKP1839510164CAP FILM 1UF 5% 160VDC AXIAL |
2,147 | - |
|
Datasheet | Axial | 1 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.413" Dia x 1.043" L (10.50mm x 26.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
R76IR415050H3JCAP FILM 1.5UF 5% 250VDC RAD |
495 | - |
|
Datasheet | Radial | 1.5 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
KP1830310061CAP FILM 10000PF 1% 63VDC RADIAL |
879 | - |
|
Datasheet | Radial | 10000 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
890334027030CSCAP FILM 4.7UF 10% 310VAC RADIAL |
350 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
715P47356LD3CAP FILM 0.047UF 5% 600VDC RAD |
344 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P68256JD3CAP FILM 6800PF 5% 600VDC RADIAL |
248 | - |
|
Datasheet | Radial | 6800 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382" Dia x 0.701" L (9.70mm x 17.80mm) | 0.673" (17.10mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
SMDIC04100TB00KQ00CAP FILM 1UF 10% 63VDC 2824 |
2,708 | - |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
942C20S1K-FCAP FILM 10000PF 10% 2KVDC AXIAL |
2,044 | - |
|
Datasheet | Axial | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 50 mOhms | -55°C ~ 105°C | Through Hole | 0.472" Dia x 1.339" L (12.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
225P10391WD3CAP FILM 10000PF 10% 100VDC RAD |
290 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.252" W (17.80mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
F863FU335K310ZCAP FILM 3.3UF 10% 630VDC RADIAL |
385 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
