Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76UI1470SE40JCAP FILM 4700PF 5% 2KVDC RADIAL |
2,008 | - |
|
Datasheet | Radial | 4700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76TI25605050JFILM, RADIAL, PULSE, DOUBLE META |
1,818 | - |
|
Datasheet | Radial | 0.056 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 19.9 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R66ED4100AA7AKCAP FILM 1UF 10% 100VDC RADIAL |
1,483 | - |
|
Datasheet | Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
R66ED4100Z37AKCAP FILM 1UF 10% 100VDC RADIAL |
687 | - |
|
Datasheet | Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.417" (10.60mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
R46KI333000N0MCAP FILM 0.33UF 20% 560VDC RAD |
498 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

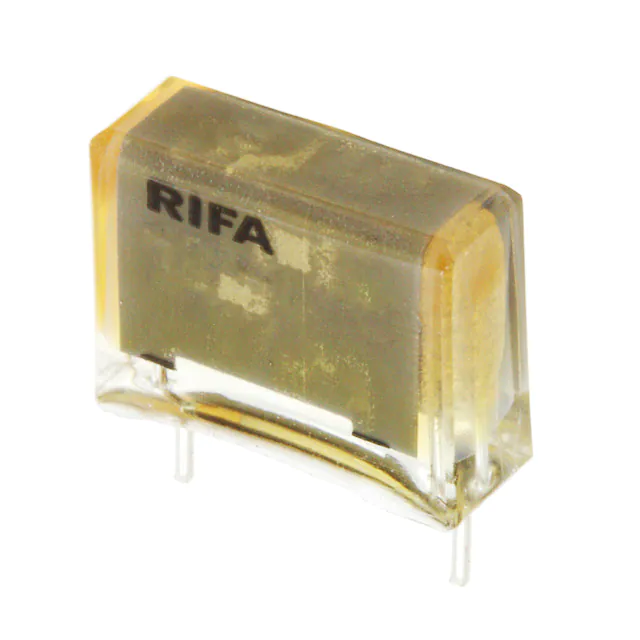

PME271Y447MR04CAP FILM 4700PF 20% 1KVDC RADIAL |
4,249 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.197" W (13.50mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
R4Y5I11505000KCAP FILM 500VAC Y1 1500PF RADIAL |
3,390 | - |
|
Datasheet | Radial | 1500 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
R533I315050P0KCAP FILM 0.15UF 10% 630VDC RAD |
3,350 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.445" (11.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

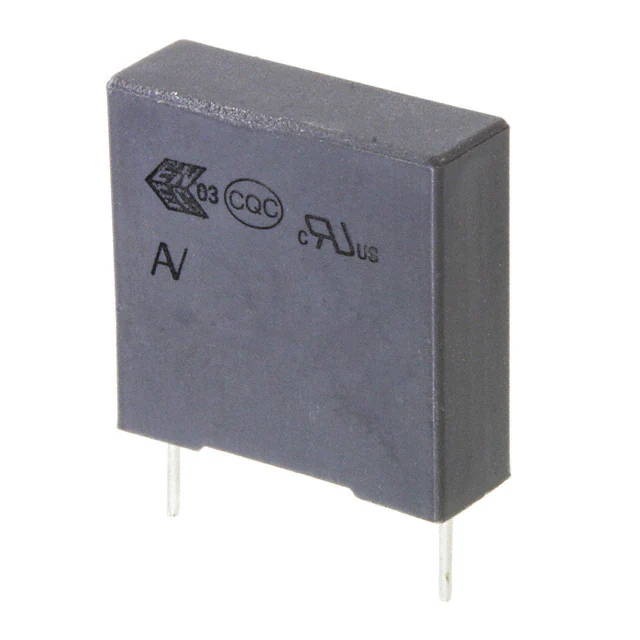

R46KI333000P2MCAP FILM 0.33UF 20% 560VDC RAD |
2,378 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE426HA6220JR05CAP FILM 0.22UF 5% 250VDC RADIAL |
1,623 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
