Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R586I210050T0KCAP FILM 600VAC(X1) 0.01 UF 10% |
886 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.445" (11.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R49AN31004001KCAP FILM 0.1UF 10% 800VDC RADIAL |
488 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|

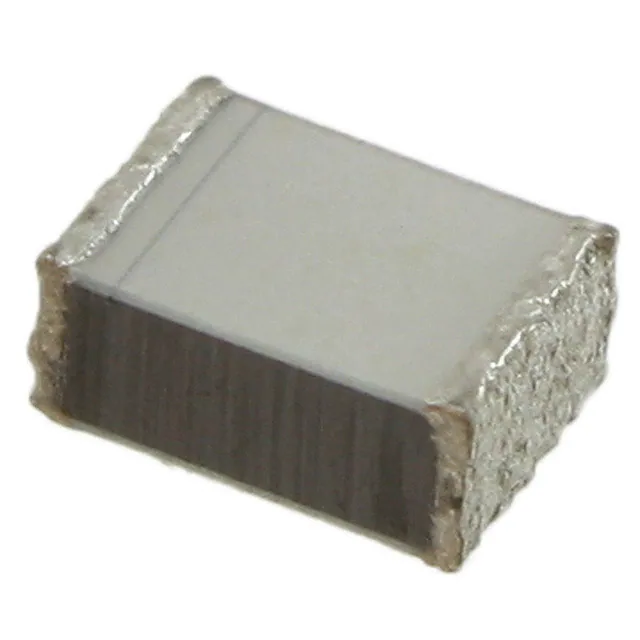

LDEIC2330JA0N00CAP FILM 0.033UF 5% 250VDC 1812 |
4,141 | - |
|
Datasheet | 1812 (4532 Metric) | 0.033 µF | ±5% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.102" (2.60mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
F861AO224M310ACAP FILM 0.22UF 20% 630VDC RAD |
1,570 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.669" (17.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KI333000M1KCAP FILM 0.33UF 10% 560VDC RAD |
1,519 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R76MN32205050JFILM, RADIAL, PULSE, DOUBLE META |
1,398 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75II32204040JCAP FILM 0.22UF 5% 250VDC RADIAL |
900 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R413N3100DQM1KCAP FILM 0.1UF 10% 1KVDC RADIAL |
592 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
LDEDD3470KA5N00CAP FILM 0.47UF 10% 63VDC 2220 |
5,336 | - |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R76UI12204030JCAP FILM 2200PF 5% 2KVDC RADIAL |
2,935 | - |
|
Datasheet | Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
