Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76PN31004030JCAP FILM 0.1UF 5% 630VDC RADIAL |
488 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

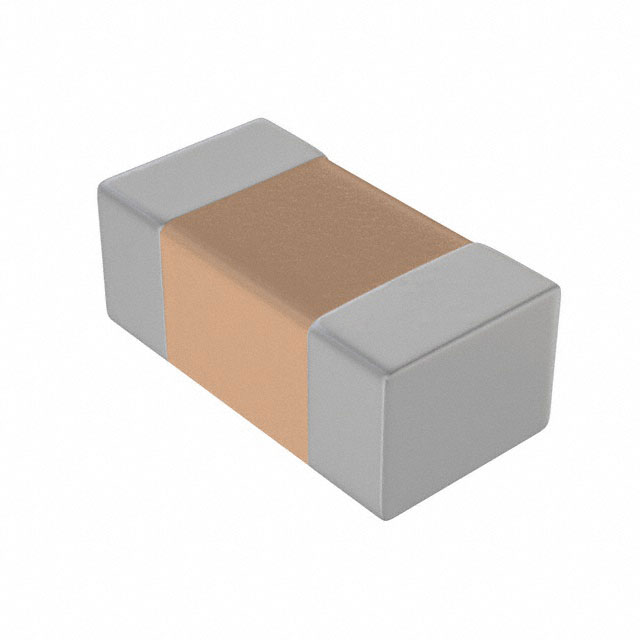

LDBAA2470JC5N0CAP FILM 0.047UF 5% 16VDC 1206 |
8,940 | - |
|
Datasheet | 1206 (3216 Metric) | 0.047 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
PFR5332H100J12L4BULKCAP FILM 3300PF 2.5% 100VDC RAD |
724 | - |
|
Datasheet | Radial | 3300 pF | ±2.5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R73UI0330SE03JCAP FILM 330PF 5% 2KVDC RADIAL |
662 | - |
|
Datasheet | Radial | 330 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75UI22204030JCAP FILM 0.022UF 5% 2KVDC RADIAL |
572 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
SMR5473J100J02L16.5CBULKCAP FILM 0.047UF 5% 100VDC RAD |
5,587 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
LDBAA2220GC5N0CAP FILM 0.022UF 2% 16VDC 1206 |
2,482 | - |
|
Datasheet | 1206 (3216 Metric) | 0.022 µF | ±2% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
PHE450RB5100JR06CAP FILM 10000PF 5% 1.6KVDC RAD |
2,005 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R413I247040M1MCAP FILM 0.047UF 20% 1KVDC RAD |
1,036 | - |
|
Datasheet | Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R66ID3330Z36AKCAP FILM 0.33UF 10% 250VDC RAD |
949 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
