Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMR5104J100J03L16.5CBULKCAP FILM 0.1UF 5% 100VDC RADIAL |
690 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
R75MR4100AA40KCAP FILM 1UF 10% 400VDC RADIAL |
536 | - |
|
Datasheet | Radial | 1 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R474N333050A1KV057CAP FILM 0.33UF 10% 1KVDC RADIAL |
393 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

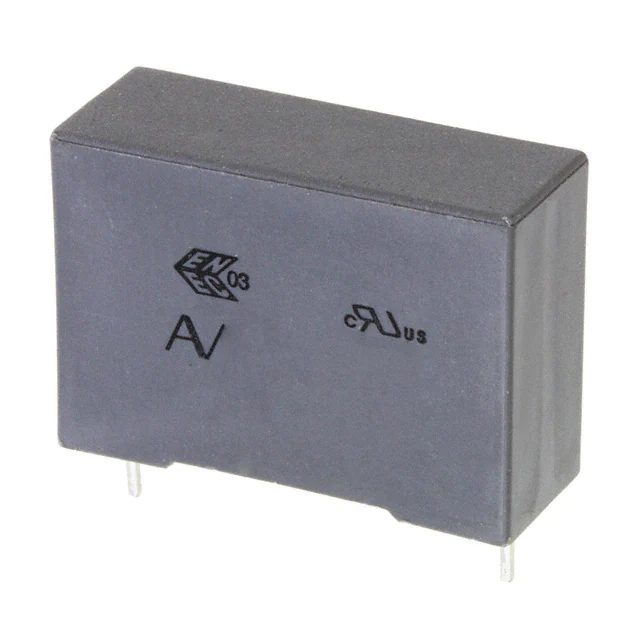

R49AN34700001MCAP FILM 0.47UF 20% 800VDC RAD |
538 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
F871DO474M330ZCAP FILM 0.47UF 20% 330VAC RAD |
1,168 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
F861DJ105M310ZCAP FILM 1UF 20% 630VDC RADIAL |
1,827 | - |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE844RD6100MR30L2CAP FILM 0.1UF 20% 1KVDC RADIAL |
1,758 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
PHE844RD6100MR06L2CAP FILM 0.1UF 20% 1KVDC RADIAL |
1,756 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
R474N32205001KCAP FILM 0.22UF 10% 1KVDC RADIAL |
1,133 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE845VD5220MR30L2CAP FILM 0.022UF 20% 1.5KVDC RAD |
596 | - |
|
Datasheet | Radial | 0.022 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
