Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76TI1470SE30HCAP FILM AUTO POLYPROP RAD |
4,730 | - |
|
Datasheet | Radial | 4700 pF | ±2.5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 135 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75QI24705000JCAP FILM AUTO POLYPROP RAD |
8,267 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | 23.7 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
PHE426MB5680JR06CAP FILM RAD |
9,145 | - |
|
Datasheet | Radial | 0.068 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R60DF4220CK6AKCAP FILM AUTOMOTIVE |
2,441 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
F871AO393J330R.039UF 330V |
5,867 | - |
|
Datasheet | Radial | 0.039 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.669" (17.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X1 | - |
|

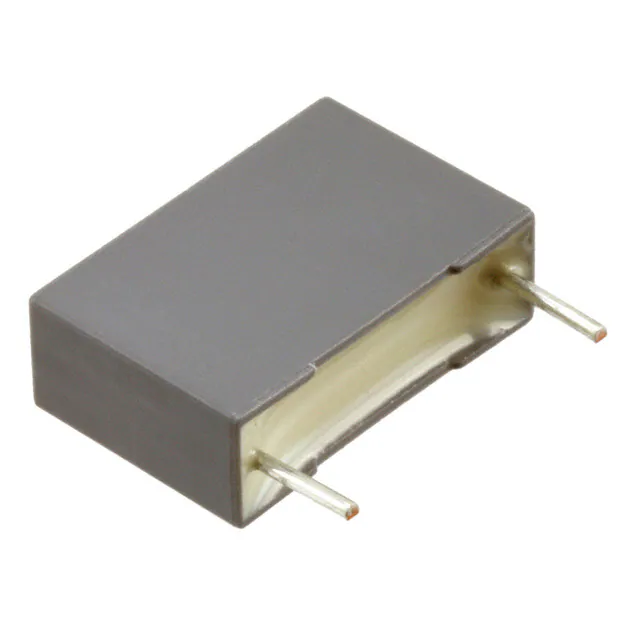

R73RI1330SE00JCAP FILM 3300PF 5% 1.25KVDC RAD |
6,167 | - |
|
Datasheet | Radial | 3300 pF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MD2220DQ30KCAP FILM AUTO POLYPROP RAD |
6,975 | - |
|
Datasheet | Radial | 0.022 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 29 mOhms | -55°C ~ 110°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R73II2470SE00KCAP FILM METAL RAD POLYPROP |
6,374 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R747N2100JE00KCAP FILM METAL RAD POLYPROP |
8,946 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 64 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R747N2100AA00KCAP FILM METAL RAD POLYPROP |
7,608 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 64 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.433" W (41.50mm x 11.00mm) | 0.870" (22.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
