Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R71XR468050H0KFILM, RADIAL, PULSE, SINGLE META |
517 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R523R447050P0KCAP FILM 4.7UF 10% 630VDC RADIAL |
380 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200, X2 | - |
|
R463W447050M2MCAP FILM 4.7UF 20% 630VDC RAD |
114 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
C4AQIBU4800A11JCAP FILM 8UF 5% 800VDC RADIAL |
807 | - |
|
Datasheet | Radial | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R60DN51505030KCAP FILM 15UF 10% 63VDC RADIAL |
2,467 | - |
|
Datasheet | Radial | 15 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R53BR410050S0MCAP FILM 1UF 20% 800VDC RADIAL |
239 | - |
|
Datasheet | Radial | 1 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
R46KW447040M1MCAP FILM 4.7UF 20% 560VDC RADIAL |
107 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|

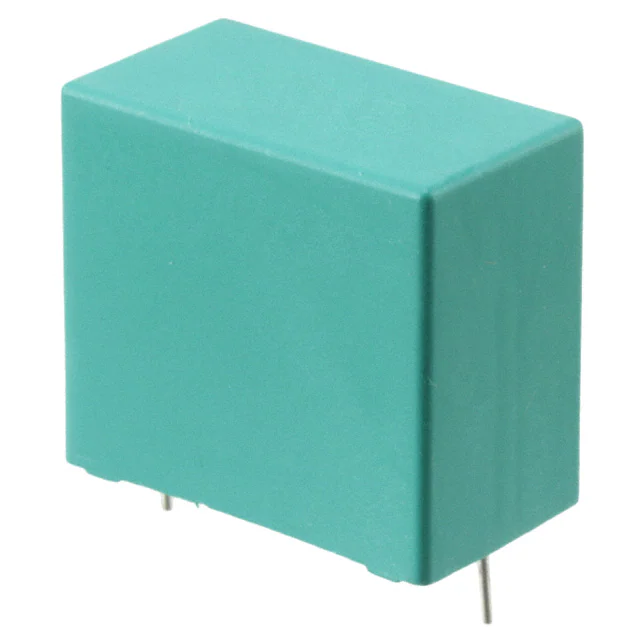

PHE850EF6470MF14R06L2CAP FILM 0.47UF 20% 1.25KVDC RAD |
1,333 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
PHE450SD5560JR06L2CAP FILM 0.056UF 5% 2KVDC RADIAL |
861 | - |
|
Datasheet | Radial | 0.056 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
.jpg "LDEQG2470KA5N00")
|
LDEQG2470KA5N00CAP FILM 0.047UF 10% 1KVDC 5040 |
1,551 | - |
|
Datasheet | 5040 (127102 Metric) | 0.047 µF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.512" L x 0.409" W (13.00mm x 10.40mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
