Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQSLW4600A36JCAP FILM 6UF 5% 1.5KVDC RADIAL |
233 | - |
|
Datasheet | Radial - 4 Leads | 6 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 9.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 0.953" (24.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
.jpg "LDEEH4470KA5N00")
|
LDEEH4470KA5N00CAP FILM 4.7UF 10% 100VDC 6054 |
535 | - |
|
Datasheet | 6054 (153137 Metric) | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.610" L x 0.539" W (15.50mm x 13.70mm) | 0.209" (5.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
C4AQGBU5150P11KCAP FILM 15UF 10% 450VDC RADIAL |
159 | - |
|
Datasheet | Radial | 15 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 6.4 mOhms | -55°C ~ 125°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
|
C4AQCBU5150A12JCAP FILM 15UF 5% 650VDC RADIAL |
150 | - |
|
Datasheet | Radial | 15 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

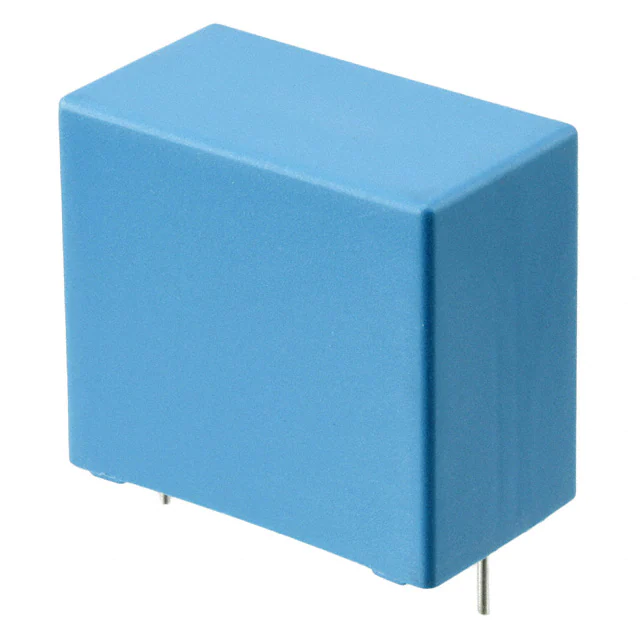

PHE450MF7100JR06L2CAP FILM 1UF 5% 630VDC RADIAL |
174 | - |
|
Datasheet | Radial | 1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
R41BW410050T0KCAP FILM 1UF 10% 1.5KVDC RADIAL |
174 | - |
|
Datasheet | Radial | 1 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
SMC7.3154J50K35TR12CAP FILM 0.15UF 5% 50VDC 2824 |
4,315 | - |
|
Datasheet | 2824 (7260 Metric) | 0.15 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.138" (3.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
C4AQIBW5220M3JJCAP FILM 22UF 5% 800VDC RADIAL |
208 | - |
|
Datasheet | Radial - 4 Leads | 22 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
F861FR475M310ZLH0JCAP FILM 4.7UF 20% 310VAC RADIAL |
760 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
SMR15225J63B12L16.5CBULKCAP FILM 2.2UF 5% 63VDC RADIAL |
148 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | High Temperature |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
