Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQLBW5500A3JKCAP FILM 50UF 10% 500VDC RADIAL |
258 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQPBW5200M3MJCAP FILM 20UF 5% 1.2KVDC RADIAL |
104 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C878BF35150SA0JCAP FILM 15UF 5% 470VAC RADIAL |
22 | - |
|
Datasheet | Radial, Can | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4ASPBW3470A3GJCAP FILM 0.47UF 5% 1.2KVDC RAD |
132 | - |
|
Datasheet | Radial - 4 Leads | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | Snubber | - | - |
|
R586W433050T0KCAP FILM 600VAC(X1) 3.3 UF 10% |
108 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

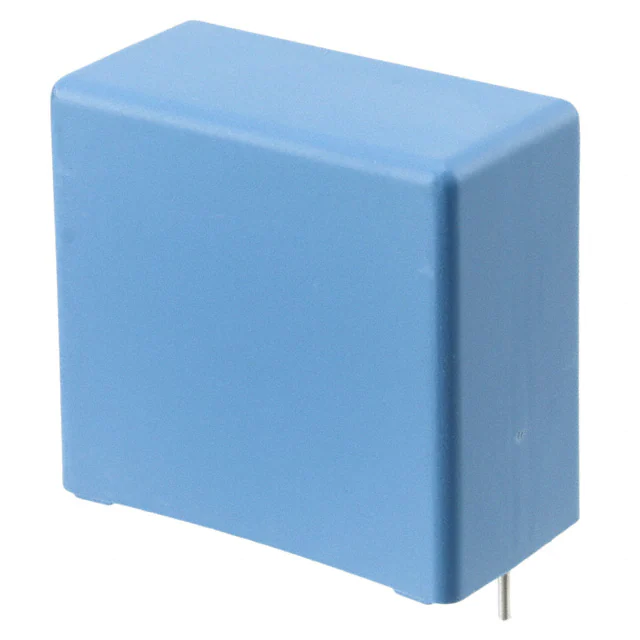

PHE450MR7270JR06L2CAP FILM 2.7UF 5% 630VDC RADIAL |
1,424 | - |
|
Datasheet | Radial | 2.7 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
C4ATHBW4900A3LJCAP FILM 9UF 5% 600VDC RADIAL |
180 | - |
|
Datasheet | Radial - 4 Leads | 9 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AF7BW5100T3OKFILM, POWER, METALLIZED POLYPROP |
104 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 2.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
R60ER54705040KCAP FILM 47UF 10% 100VDC RAD |
107 | - |
|
Datasheet | Radial | 47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
C4AQLBW5540M3HKCAP FILM 54UF 10% 500VDC RADIAL |
130 | - |
|
Datasheet | Radial - 4 Leads | 54 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.740" (44.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
