Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75QW439040H0KCAP FILM 3.9UF 10% 1KVDC RADIAL |
178 | - |
|
Datasheet | Radial | 3.9 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | 6.1 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60IR52205000KCAP FILM 22UF 10% 250VDC RADIAL |
380 | - |
|
Datasheet | Radial | 22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
|
R586W427050T0KCAP FILM 600VAC(X1) 2.7 UF 10% |
127 | - |
|
Datasheet | Radial | 2.7 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.744" (44.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
C4AFABW4750F3MKFILM CAP AC, 7.5 UF, 10%,500 VAC |
102 | - |
|
Datasheet | Radial - 4 Leads | 7.5 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 10.7 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
R75MW515050H3JCAP FILM 15UF 5% 400VDC RADIAL |
168 | - |
|
Datasheet | Radial | 15 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R60DR5220AA30JCAP FILM 22UF 5% 63VDC RADIAL |
283 | - |
|
Datasheet | Radial | 22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
C4AQQBW5180M36JCAP FILM 18UF 5% 1.1KVDC RADIAL |
163 | - |
|
Datasheet | Radial - 4 Leads | 18 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|

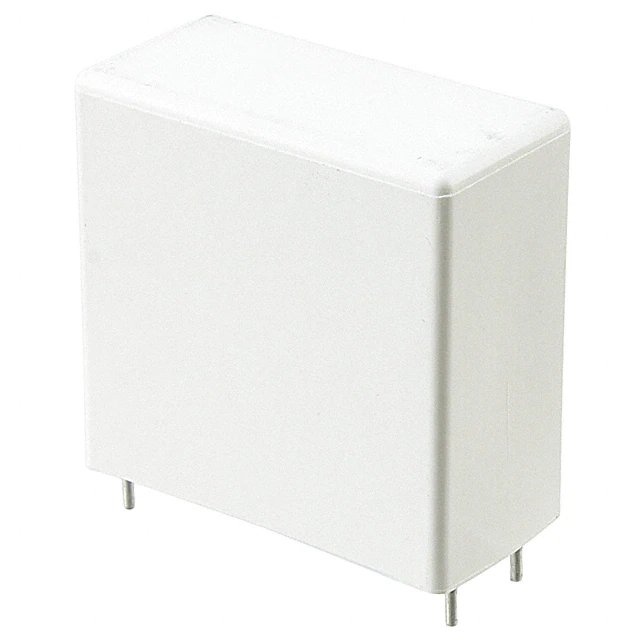

C4AEOBW5120A3FJCAP FILM 12UF 5% 900VDC RADIAL |
174 | - |
|
Datasheet | Radial | 12 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
SMC12.7474J100B31TR24CAP FILM 0.47UF 5% 100VDC SMD |
2,500 | - |
|
Datasheet | Nonstandard | 0.47 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
|
C4AQUBW5250A3NJCAP FILM 25UF 5% 1.3KVDC RADIAL |
102 | - |
|
Datasheet | Radial - 4 Leads | 25 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
