Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A70PQ2680AA00JCAP FILM 0.068UF 5% 630VDC AXIAL |
302 | - |
|
Datasheet | Axial | 0.068 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.335" Dia x 1.102" L (8.50mm x 28.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
C4AUQBW5100M3HJFILM, RADIAL, METALLIZED POLYPRO |
112 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C878AF35200AA0JCAP FILM MOTOR START RUN |
3,304 | - |
|
Datasheet | Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
PHE820EF7100MR06L2CAP FILM 1UF 20% 300VAC RADIAL |
177 | - |
|
Datasheet | Radial | 1 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
C4ASNBW3470A3EJCAP FILM 0.47UF 5% 1KVDC RADIAL |
5,412 | - |
|
Datasheet | Radial - 4 Leads | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Snubber | - | - |
|

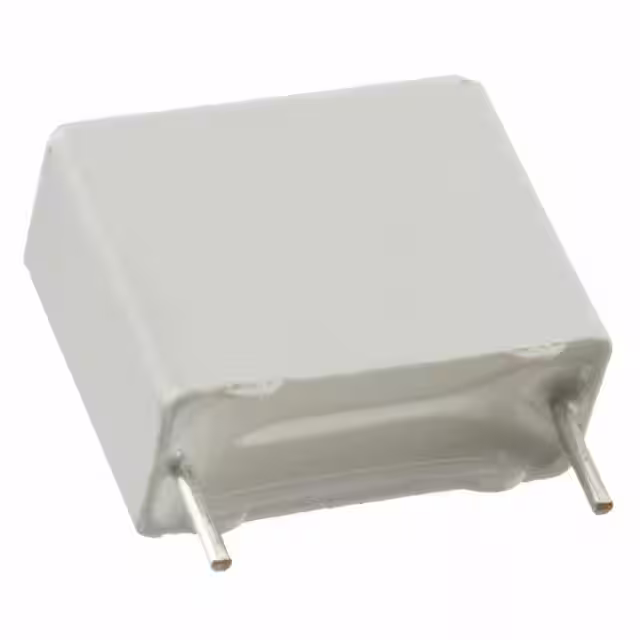

SMR15225K63B12L4BULKCAP FILM 2.2UF 10% 63VDC RADIAL |
7,149 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | High Temperature |
|
|
C954PF44340ZA0XCAP FILM 3.4UF 450VAC |
9,508 | - |
|
Datasheet | - | 3.4 µF | - | 450V | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C4CAPUC3470AA1KCAP FILM METAL AXL POLYPROP |
8,096 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 0.906" Dia x 1.732" L (23.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

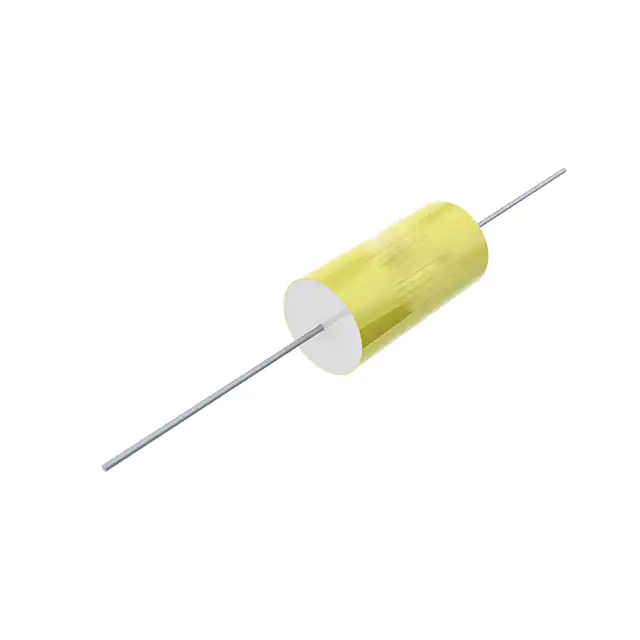

A72QQ2470ZA00MCAP FILM 0.047UF 20% 1KVDC AXIAL |
1,663 | - |
|
Datasheet | Axial | 0.047 µF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

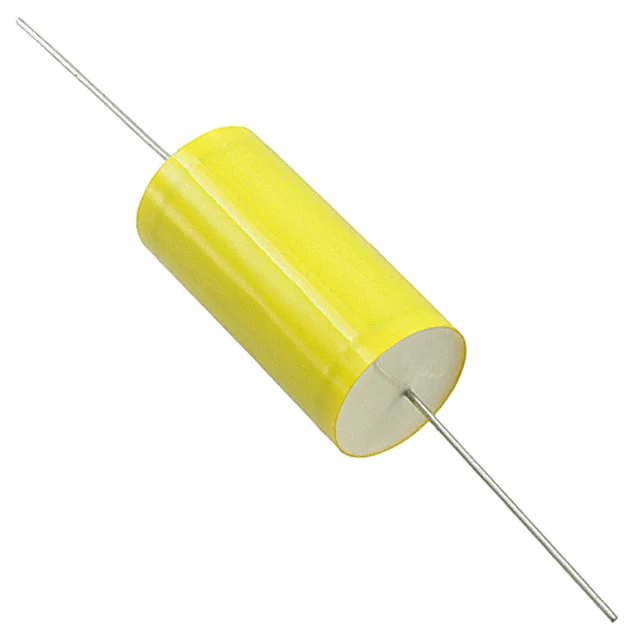

A72UQ2100AA00KCAP FILM 10000PF 10% 2KVDC AXIAL |
1,724 | - |
|
Datasheet | Axial | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" Dia x 1.102" L (13.00mm x 28.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
