Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R60GF3220AA6AJCAP FILM 0.22UF 5% 160VDC RADIAL |
560 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 90V | 160V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
R82EC2150Z350JCAP FILM 0.015UF 5% 100VDC RAD |
895 | - |
|
Datasheet | Radial | 0.015 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PHE450KK4100JR05CAP FILM 1000PF 5% 400VDC RADIAL |
868 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|

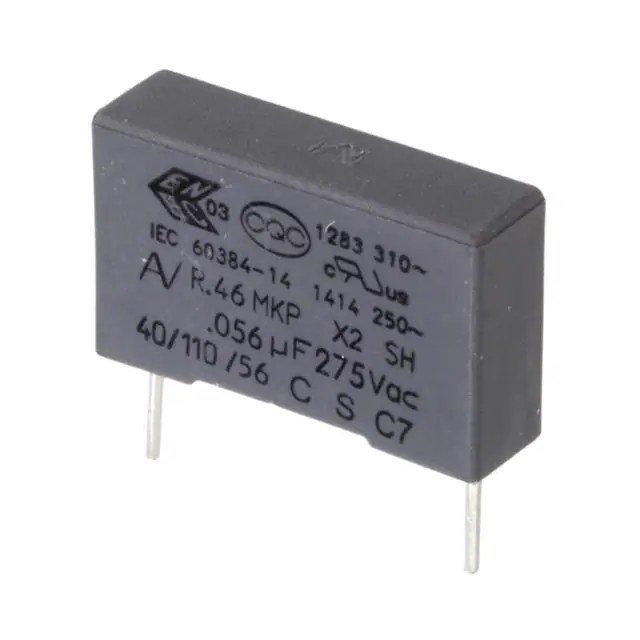

R46KI25600001MCAP FILM 0.056UF 20% 560VDC RAD |
516 | - |
|
Datasheet | Radial | 0.056 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KF268040P0MCAP FILM 0.068UF 20% 560VDC RAD |
174 | - |
|
Datasheet | Radial | 0.068 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
MMK5562J400J01L16.5TA18CAP FILM 5600PF 5% 400VDC RADIAL |
912 | - |
|
Datasheet | Radial | 5600 pF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
MMK5103K100J01L4BULKCAP FILM 10000PF 10% 100VDC RAD |
837 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
R60QF1100AA01KCAP FILM 1000PF 10% 1KVDC RADIAL |
297 | - |
|
Datasheet | Radial | 1000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
R46KI322040P0MCAP FILM 0.22UF 20% 560VDC RAD |
285 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KI3100JHM1KCAP FILM 0.1UF 10% 560VDC RADIAL |
866 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
