Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76TR339050H3JCAP FILM 0.39UF 5% 1.6KVDC RAD |
88 | - |
|
Datasheet | Radial | 0.39 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

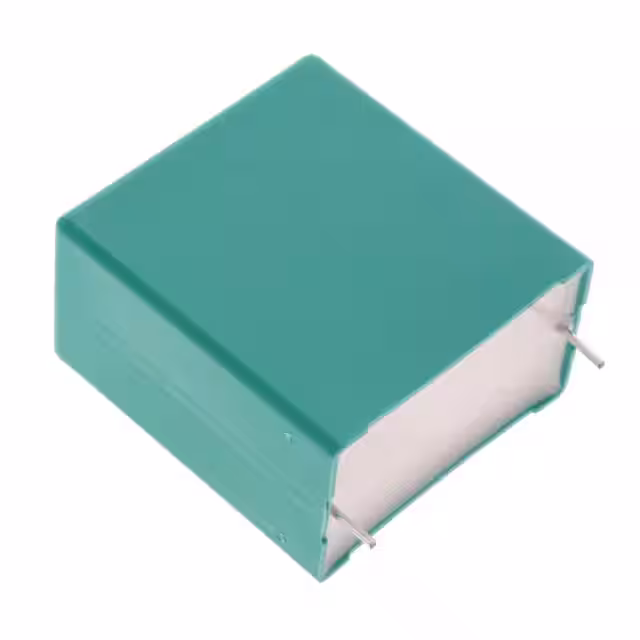

F871RO565M330ZCAP FILM 5.6UF 20% 330VAC RADIAL |
87 | - |
|
Datasheet | Radial | 5.6 µF | ±20% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
PHE845VR6680MR06L2CAP FILM 0.68UF 20% 1.5KVDC RAD |
54 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
R53BY51800000KCAP FILM 18UF 10% 800VDC RADIAL |
82 | - |
|
Datasheet | Radial | 18 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.016" (51.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
C4AKJBW5150A3FJFILM, RADIAL, METALLIZED POLYPRO |
32 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.8 mOhms | -55°C ~ 135°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.614" (41.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4AF1BW5280F3OKFILM CAP AC, 28 UF, 10%, 250 VAC |
20 | - |
|
Datasheet | Radial - 4 Leads | 28 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
C4BSWBX3100ZBFJCAP FILM 0.1UF 5% 2KVDC SCREW |
30 | - |
|
Datasheet | Rectangular Box | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 23.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AF1BW5330T3NKFILM, POWER, METALLIZED POLYPROP |
63 | - |
|
Datasheet | Radial - 4 Leads | 33 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
C4ATHBW5100A3LJCAP FILM 10UF 5% 600VDC RADIAL |
36 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AQLLW5450M38KCAP FILM 45UF 10% 500VDC RADIAL |
21 | - |
|
Datasheet | Radial - 4 Leads | 45 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
