Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

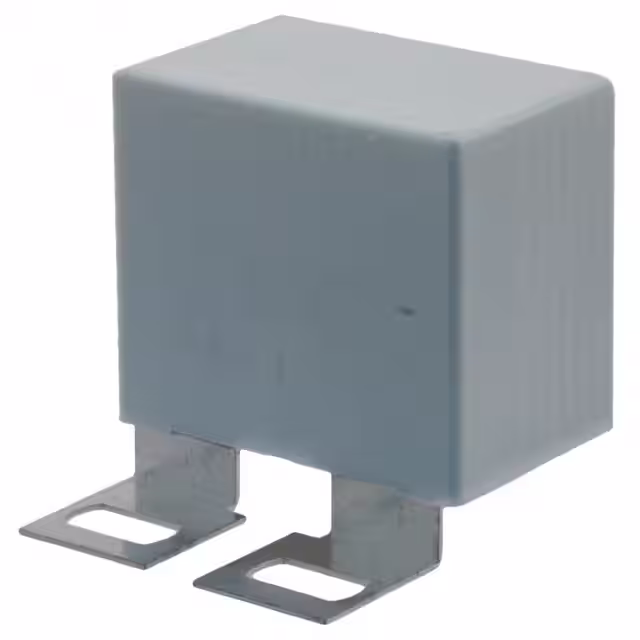

C4BSPBX4120ZBJJCAP FILM 1.2UF 5% 1.2KVDC SCREW |
24 | - |
|
Datasheet | Rectangular Box | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AQSEW5320A3AJCAP FILM 32UF 5% 1.5KVDC RAD |
59 | - |
|
Datasheet | Radial - 4 Leads | 32 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R53BY520000S0MCAP FILM 20UF 20% 800VDC RADIAL |
80 | - |
|
Datasheet | Radial | 20 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.016" (51.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
C4AF1EW5470T3AKFILM, POWER, METALLIZED POLYPROP |
16 | - |
|
Datasheet | Radial - 4 Leads | 47 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
C4AULBW5900M3MKFILM, RADIAL, METALLIZED POLYPRO |
81 | - |
|
Datasheet | Radial - 4 Leads | 90 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.819" (46.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AEGBW5350A3JJCAP FILM 35UF 5% 450VDC RADIAL |
43 | - |
|
Datasheet | Radial - 4 Leads | 35 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 9.1 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4AF9EW5330T3AKFILM, POWER, METALLIZED POLYPROP |
24 | - |
|
Datasheet | Radial - 4 Leads | 33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
C4AF7EW5400F3BKFILM CAP AC, 40 UF, 10%, 350 VAC |
52 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AF1EW5600F3AKFILM CAP AC, 60 UF, 10%, 250 VAC |
59 | - |
|
Datasheet | Radial - 4 Leads | 60 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
C4AKJBW5350A3PJFILM, RADIAL, METALLIZED POLYPRO |
90 | - |
|
Datasheet | Radial - 4 Leads | 35 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 135°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.929" (49.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
