Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

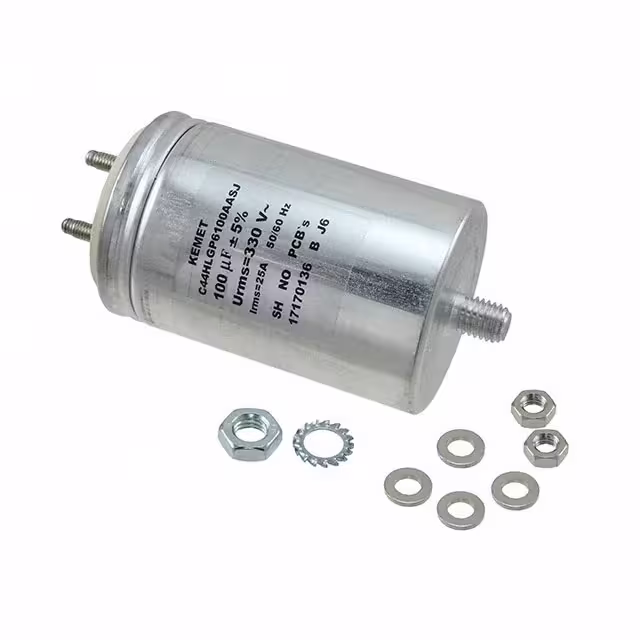

C44HLGP6100AASJCAP FILM 100UF 5% 700VDC RADIAL |
20 | - |
|
Datasheet | Radial, Can | 100 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 3.937" (100.00mm) | Threaded, Male | 0.886" (22.50mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
C44USGT6230M86KCAP FILM 230UF 10% 1.5KVDC RAD |
9 | - |
|
Datasheet | Radial, Can | 230 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6400M85KCAP FILM 400UF 10% 1.1KVDC RAD |
24 | - |
|
Datasheet | Radial, Can | 400 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.827" (148.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|

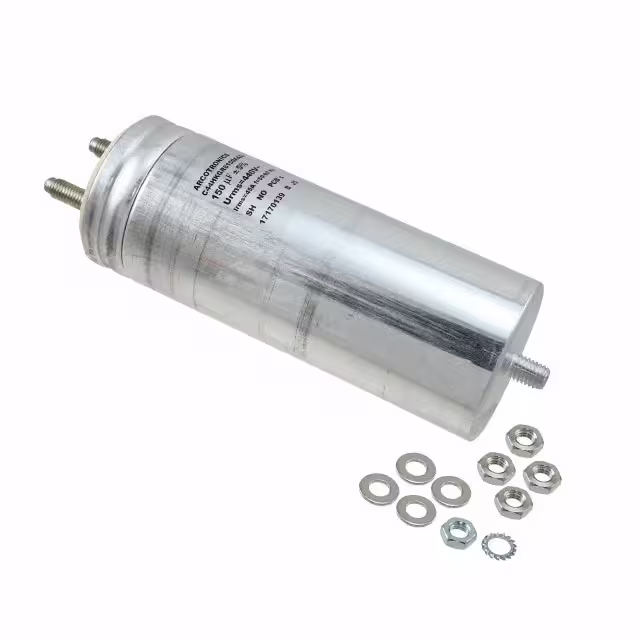

C44HKGR6150AASJCAP FILM 150UF 5% 1KVDC RADIAL |
15 | - |
|
Datasheet | Radial, Can | 150 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.717" (196.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
|
C44UUGT6250M84KCAP FILM 250UF 10% 1.3KVDC RAD |
4 | - |
|
Datasheet | Radial, Can | 250 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44USGT6145M82KCAP FILM 145UF 10% 1.5KVDC RAD |
13 | - |
|
Datasheet | Radial, Can | 145 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.646" (118.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT6500M83KCAP FILM 500UF 10% 900VDC RADIAL |
10 | - |
|
Datasheet | Radial, Can | 500 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.039" (128.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6460M86KCAP FILM 460UF 10% 1.1KVDC RAD |
17 | - |
|
Datasheet | Radial, Can | 460 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UVGT6300M87KCAP FILM 300UF 10% 1.8KVDC RAD |
2 | - |
|
Datasheet | Radial, Can | 300 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.709" (272.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6910M31KC44U_M, FILM, METALLIZED POLYPRO |
10 | - |
|
Datasheet | Radial, Can | 910 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 0.85 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 5.236" (133.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
