Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F863BF154K310ZV047CAP FILM 0.15UF 10% 630VDC RAD |
935 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R60MF2330506AJCAP FILM 0.033UF 5% 400VDC RAD |
100 | - |
|
Datasheet | Radial | 0.033 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|

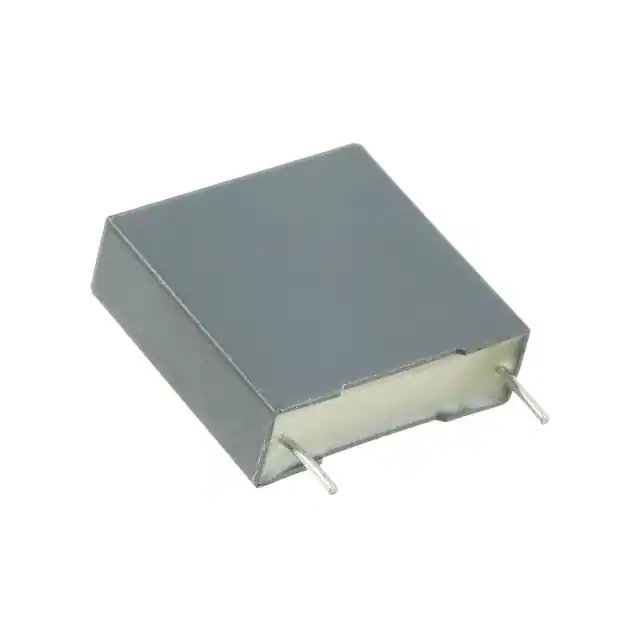

R46KI3220JP02MCAP FILM 0.22UF 20% 560VDC RAD |
1,000 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R463F2220DQN0MCAP FILM SAFETY/EMI SUPP RAD |
1,000 | - |
|
Datasheet | Radial | 0.022 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE840MA5330MA01R17CAP FILM 0.033UF 20% 760VDC RAD |
880 | - |
|
Datasheet | Radial | 0.033 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R413I215050P0KCAP FILM 0.015UF 10% 1.2KVDC RAD |
1,000 | - |
|
Datasheet | Radial | 0.015 µF | ±10% | 300V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
R413I147050D0KCAP FILM 4700PF 10% 1.2KVDC RAD |
960 | - |
|
Datasheet | Radial | 4700 pF | ±10% | 300V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression; High Pulse, DV/DT | AEC-Q200, X1, Y2 | - |
|
R474N268050A1KV057CAP FILM 0.068UF 10% 1KVDC RAD |
500 | - |
|
Datasheet | Radial | 0.068 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R46KI23304001KCAP FILM 0.033UF 10% 560VDC RAD |
1,000 | - |
|
Datasheet | Radial | 0.033 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R413I168050D0KCAP FILM 6800PF 10% 1.2KVDC RAD |
1,000 | - |
|
Datasheet | Radial | 6800 pF | ±10% | 300V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression; High Pulse, DV/DT | AEC-Q200, X1, Y2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
