Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4ATJBW5150A3NJCAP FILM METAL RAD POLYPROP |
36 | - |
|
Datasheet | Radial | 15 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AQJEW5660M3CJCAP FILM 66UF 5% 700VDC RADIAL |
19 | - |
|
Datasheet | Radial - 4 Leads | 66 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 1.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.256" (57.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQPEW5360M3AJCAP FILM 36UF 5% 1.2KVDC RADIAL |
45 | - |
|
Datasheet | Radial - 4 Leads | 36 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4ATGBW5330A3NJCAP FILM METAL RAD POLYPROP |
46 | - |
|
Datasheet | Radial - 4 Leads | 33 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4AQGBW5900P3OKCAP FILM 90UF 10% 450VDC RADIAL |
23 | - |
|
Datasheet | Radial - 4 Leads | 90 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
C4AUJEW6100M3AJFILM, RADIAL, METALLIZED POLYPRO |
14 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.252" (57.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|

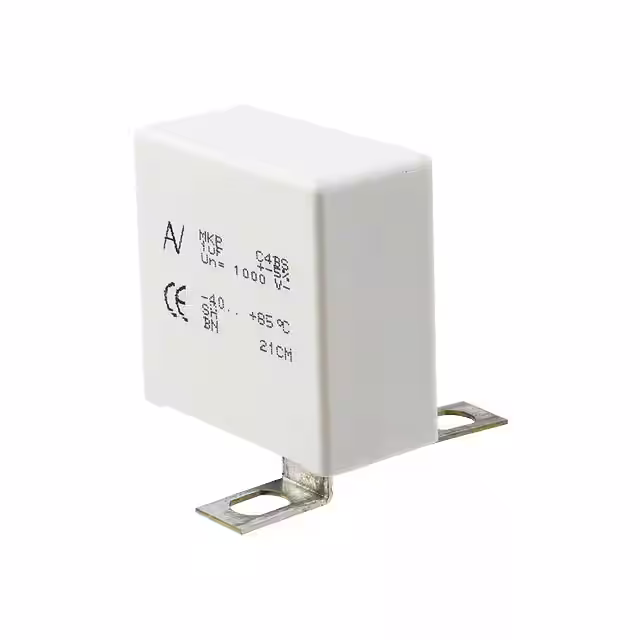

C4BSNBX4100ZEFJCAP FILM 1UF 5% 1KVDC SCREW |
94 | - |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.299" (33.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AEGBW5750A3MJCAP FILM METAL RAD POLYPROP |
54 | - |
|
Datasheet | Radial - 4 Leads | 75 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C44AFFP5300ZA0JCAP POLYPROP FILM CAN |
100 | - |
|
Datasheet | Radial, Can | 30 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.969" Dia (50.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44AJFP5150ZB0JCAP FILM 15UF 5% 700VDC RADIAL |
90 | - |
|
Datasheet | Radial, Can | 15 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
