Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PZB300MC11R30CAP FILM 0.1UF 20% 275VAC RADIAL |
20 | - |
|
Datasheet | Radial - 3 Leads | 0.1 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.492" W (24.00mm x 12.50mm) | 0.630" (16.00mm) | PC Pins | 0.787" (20.00mm) | EMI, RFI Suppression | - | - |
|
C276CC34250AA0JCAP FILM 2.5UF 5% 470VAC RADIAL |
6,442 | - |
|
Datasheet | Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
R76TR32204030JCAP FILM 0.22UF 5% 1.6KVDC RAD |
3,064 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75UW322050L3JCAP FILM 0.22UF 5% 2KVDC RADIAL |
12 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.594" (15.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R76TR34704030JCAP FILM 0.47UF 5% 1.6KVDC RAD |
5 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

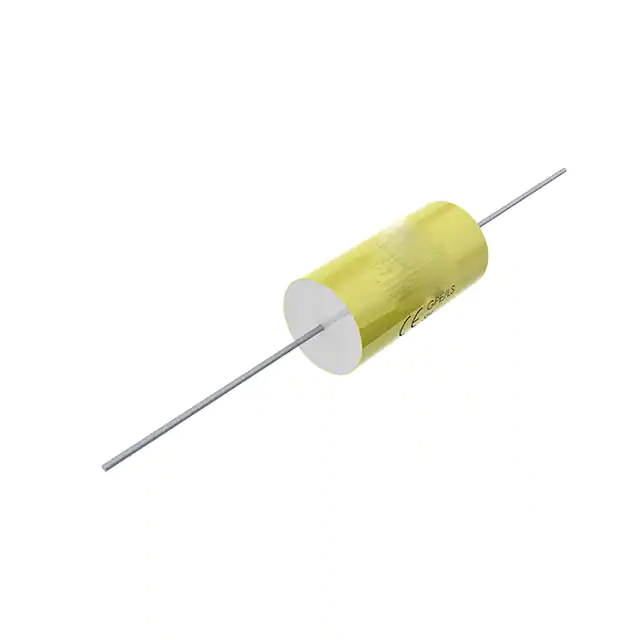

C4CAMUB3100AA0JCAP FILM 0.1UF 5% 850VDC AXIAL |
4,295 | - |
|
Datasheet | Axial | 0.1 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 16.6 mOhms | -40°C ~ 85°C | Through Hole | 0.413" Dia x 1.299" L (10.50mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
R75MR433050H3JCAP FILM 3.3UF 5% 400VDC RADIAL |
3,009 | - |
|
Datasheet | Radial | 3.3 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C274AA24500AA0JCAP FILM 5UF 5% 470VAC RADIAL |
7 | - |
|
Datasheet | Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
C4AQOBU5100M12JCAP FILM 10UF 5% 900VDC RADIAL |
7,846 | - |
|
Datasheet | Radial | 10 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C276CC35100AA0JCAP FILM 10UF 5% 470VAC RADIAL |
16 | - |
|
Datasheet | Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
