Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQPEW5450M3BJCAP FILM 45UF 5% 1.2KVDC RADIAL |
6,365 | - |
|
Datasheet | Radial - 4 Leads | 45 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQIEW6100M3BJCAP FILM 100UF 5% 800VDC RADIAL |
4 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 2.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AKOBW5400A3NKFILM, RADIAL, METALLIZED POLYPRO |
6,101 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 4.4 mOhms | -55°C ~ 135°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.016" (51.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
C4AEGBW6100A3NJCAP FILM 100UF 5% 450VDC RADIAL |
2,361 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C44BXFP3470ZA0JCAP FILM 0.47UF 5% 2.4KVDC RAD |
8,057 | - |
|
Datasheet | Radial, Can | 0.47 µF | ±5% | 1000V (1kV) | 2400V (2.4kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | Threaded, Male | 0.878" (22.30mm) | Snubber | - | - |
|

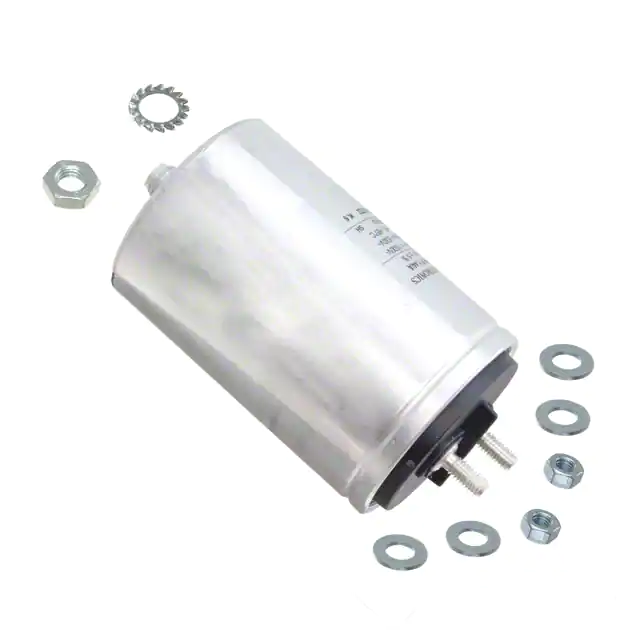

C44ASGP4500ZB0JCAP FILM 5UF 5% 1.5KVDC RADIAL |
3,849 | - |
|
Datasheet | Radial, Can | 5 µF | ±5% | 630V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44PUGR5100RASKCAP FILM 10UF 10% 1.7KVDC RADIAL |
2,172 | - |
|
Datasheet | Radial, Can | 10 µF | ±10% | 780V | 1700V (1.7kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 4.685" (119.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C9TS5MD5615AARXCAP FILM 61.5UF 415VAC RADIAL |
6,413 | - |
|
Datasheet | Radial, Can | 61.5 µF | -5%, +15% | 415V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 6.378" (162.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
C44UOGT6100A8TKCAP FILM 100UF 10% 900VDC RADIAL |
3,247 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 2.402" (61.00mm) | Threaded, Female | 1.248" (31.70mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44PPGR6100RASKCAP FILM 100UF 10% 1.28KVDC RAD |
2,997 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | 550V | 1280V (1.28kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
