Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDECA1470JA0N00CAP FILM 4700PF 5% 50VDC 1206 |
8,390 | - |
|
Datasheet | 1206 (3216 Metric) | 4700 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PHE450MD5470JR06L2CAP FILM 0.047UF 5% 630VDC RAD |
5 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
R533N356050P0KCAP FILM 0.56UF 10% 630VDC RAD |
6,283 | - |
|
Datasheet | Radial | 0.56 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.642" (16.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

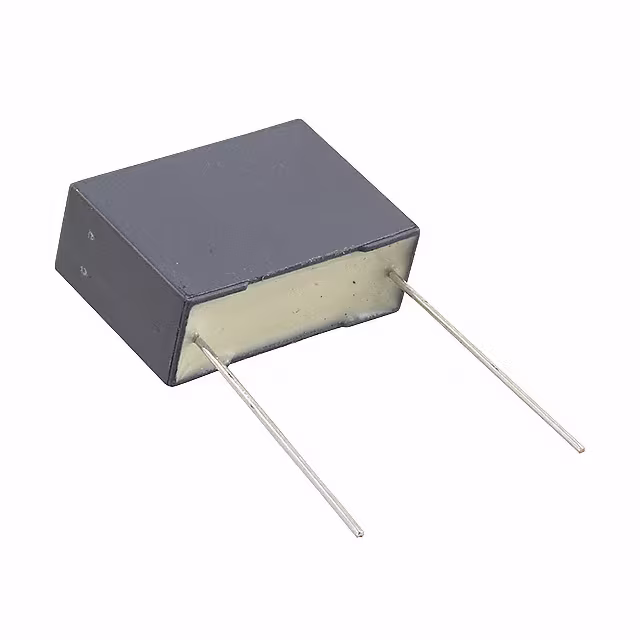

R60IN42205030JCAP FILM 2.2UF 5% 250VDC RADIAL |
18 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R75GI41004000JCAP FILM 1UF 5% 160VDC RAD |
3,159 | - |
|
Datasheet | Radial | 1 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDEMD2220KA5N00CAP FILM 0.022UF 10% 400VDC 2220 |
3,095 | - |
|
Datasheet | 2220 (5750 Metric) | 0.022 µF | ±10% | 160V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.098" (2.50mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
C4AKJBU4270A3BJFILM, RADIAL, METALLIZED POLYPRO |
2,036 | - |
|
Datasheet | Radial | 2.7 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 19.5 mOhms | -55°C ~ 135°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.894" (22.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
R75RN282050H3JCAP FILM 0.08UF 5% 1.25KVDC RAD |
8,627 | - |
|
Datasheet | Radial | 0.08 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 13.6 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AQOLW4500P33JCAP FILM 5UF 5% 900VDC RADIAL |
7,291 | - |
|
Datasheet | Radial - 4 Leads | 5 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 16.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.756" (19.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
R75MR41004040JCAP FILM 1UF 5% 400VDC RADIAL |
2,366 | - |
|
Datasheet | Radial | 1 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
