Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4GAFUD5100AA1JCAP FILM 10UF 5% 400VDC AXIAL |
179 | - |
|
Datasheet | Axial | 10 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Through Hole | 1.181" Dia x 1.732" L (30.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
C276CC35160AA0JCAP FILM 16UF 5% 470VAC RADIAL |
140 | - |
|
Datasheet | Radial, Can | 16 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
R75MW51004030JCAP FILM 10UF 5% 400VDC RADIAL |
400 | - |
|
Datasheet | Radial | 10 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

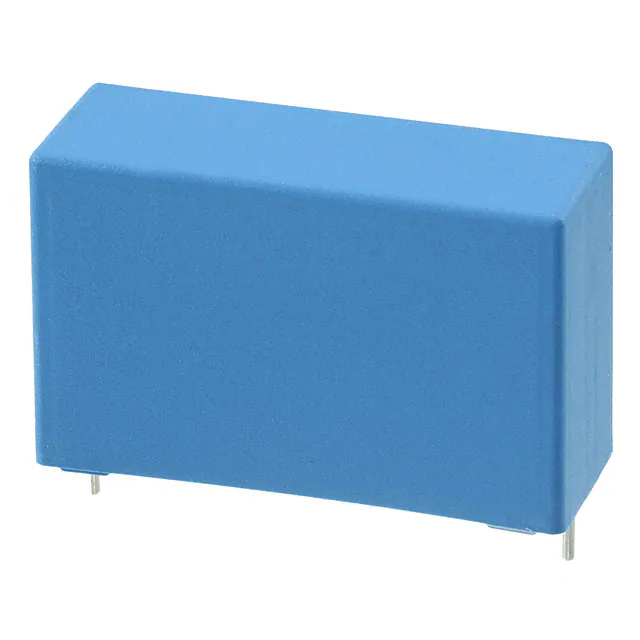

PHE844RR7100MR06L2CAP FILM 1UF 20% 1KVDC RADIAL |
1,136 | - |
|
Datasheet | Radial | 1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614" L x 0.610" W (41.00mm x 15.50mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
C4CAPUC3470AA1JCAP FILM 0.47UF 5% 1.2KVDC AXIAL |
176 | - |
|
Datasheet | Axial | 0.47 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 0.906" Dia x 1.732" L (23.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4CAWUD3330AA1JCAP FILM 0.33UF 5% 2KVDC AXIAL |
257 | - |
|
Datasheet | Axial | 0.33 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.9 mOhms | -40°C ~ 85°C | Through Hole | 1.122" Dia x 1.732" L (28.50mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
R75GR51004000JCAP FILM 10UF 5% 160VDC RAD |
334 | - |
|
Datasheet | Radial | 10 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4AQSBW4800A3JJCAP FILM 8UF 5% 1.5KVDC RADIAL |
108 | - |
|
Datasheet | Radial - 4 Leads | 8 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C274AA24600AA0JCAP FILM 6UF 5% 470VAC RADIAL |
501 | - |
|
Datasheet | Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
R75RW412050H4JCAP FILM 1.2UF 5% 1.25KVDC RAD |
124 | - |
|
Datasheet | Radial | 1.2 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
